• Model NO.：FJ-FL-G09
• Certification：CE, EMC, LVD, RoHS, SAA, SASO, CB
• Operating Voltage：85-265V
• LED Chips Brand：CREE Xte 3535,Lumi LEDs 3030
• Housing Color：Dark Grey,Black,White
• Housing Materials：Aluminum Ad12
• SPD：10kv,15kv,20kv,40kv
• Warranty：5years
• HS：9405409000
• LED Driver：Meanwell,Osram,Inventronic,Sosen
• CIR：>70
• Ik：Ik09
• Lumen：>130lm,W
• Dimmable or Not：Yes
• Gross Weight：15kg
• Working Lifetime：50000 Hours
• Model Number：Fj-Flg09-1200W
• Working Temperature：-20 - 50
• Power Factor：0.95
• Transport Package：Carton + EPE
• Trademark：Fujing
• Origin：China
• HS Code：9405409000

Basic Info.

Model NO. FJ-FL-G09 Certification CE, EMC, LVD, RoHS, SAA, SASO, CB Operating Voltage 85-265V LED Chips Brand CREE Xte 3535/Lumi LEDs 3030 Housing Color Dark Grey/Black/White Housing Materials Aluminum Ad12 SPD 10kv/15kv/20kv/40kv Warranty 5years HS 9405409000 LED Driver Meanwell/Osram/Inventronic/Sosen CIR >70 Ik Ik09 Lumen >130lm/W Dimmable or Not Yes Gross Weight 15kg Working Lifetime 50000 Hours Model Number Fj-Flg09-1200W Working Temperature -20 - 50 Power Factor 0.95 Transport Package Carton + EPE Trademark Fujing Origin China HS Code 9405409000

Product Description





LED High Mast Light

1. Adopt high-power LED patch (3030/5050) light source, the power supply can match any brand.
2. The integrated design of radiator and lamp shell, LED is directly connected with the shell, and heat dissipation through the shell heat dissipation wing and air convection, fully ensuring the 50,000-hour service life of LED street lights.
3. The lamp shell is formed by aluminum die-casting, which can effectively dissipate heat and prevent water and dust through reasonable structure design.The surface of the lamp has been treated with anti-ultraviolet anti-corrosion powder spraying, and the whole lamp has reached IP65 standard.
4. Adopt standard ADC12 die-casting aluminum, green and pollution-free, free of lead, mercury and other pollution elements, and free of any pollution to the environment.



Item No	Led watt	LED Brand	Lumen	Working voltage	PF	IP	Beam angle	CCT	Size
FJ-FL-300W-G09	300W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ379*H463mm
FJ-FL-500W-G09	500W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ565*H652mm
FJ-FL-800W-G09	800W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ565*H652mm
FJ-FL-1000W-G09	1000W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ640*H730mm
FJ-FL-1200W-G09	1200W	Cree XTE 3535/Lumi leds 3030	135lm/w	AC180-265V	0.95	IP65	15/30/60°	2700-7000K	Φ640*H730mm

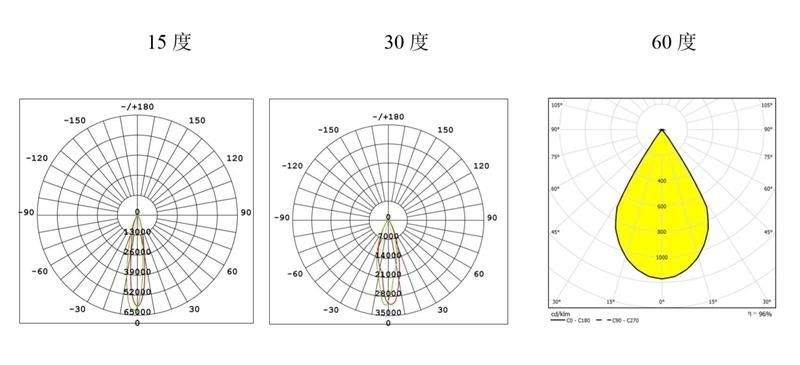

Distribution Curve

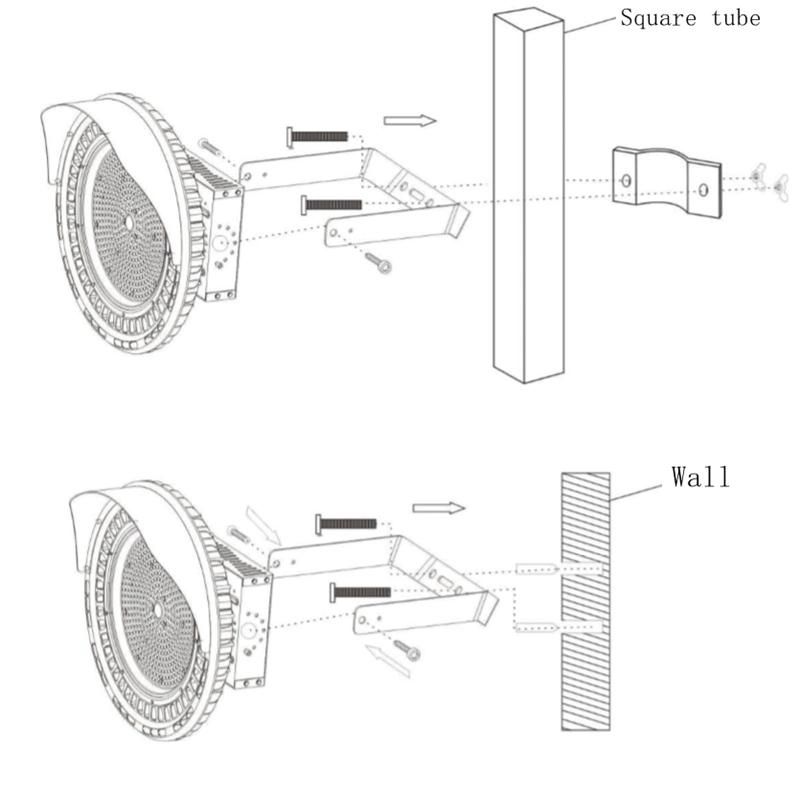

Installation

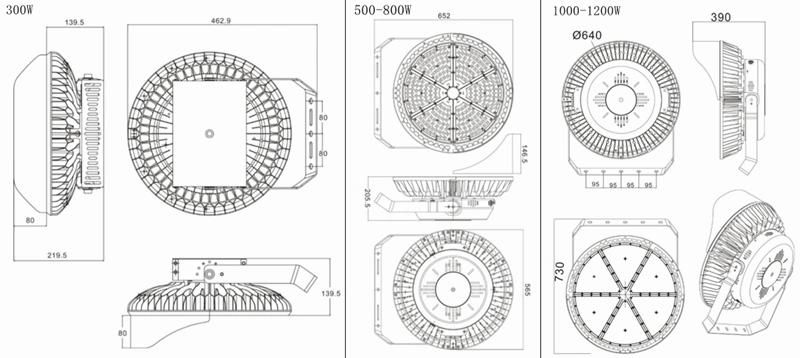

Size

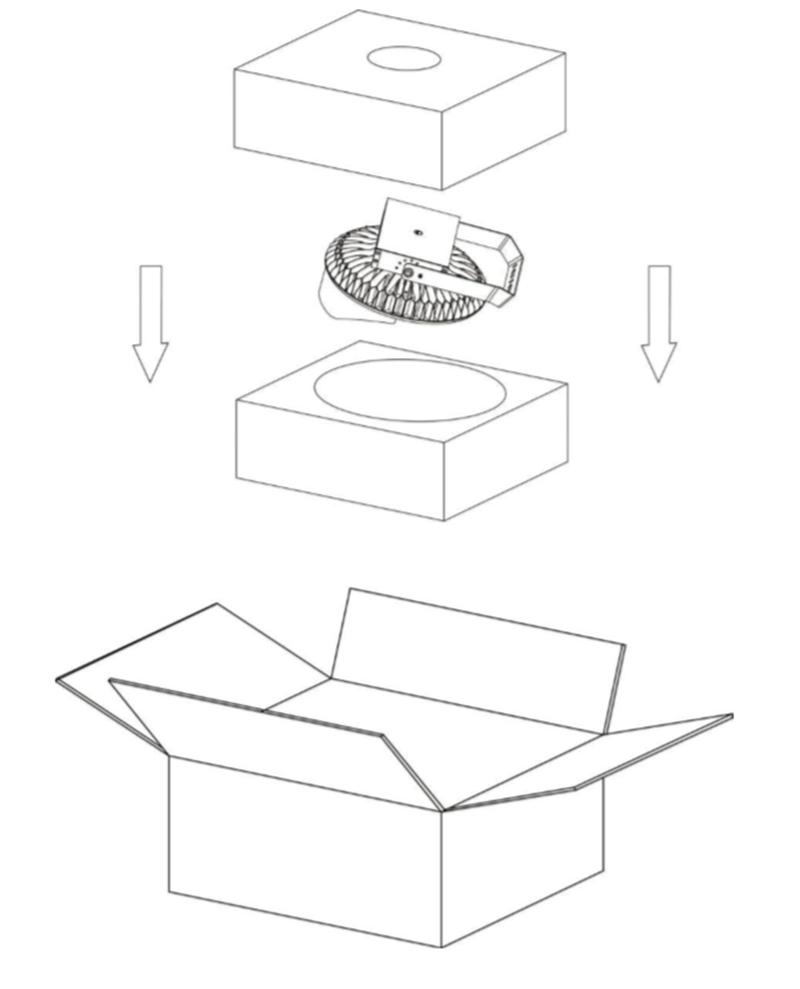

Packing



Before Sale Service



1. We provide a professional offer. Provide detailed product test reports and related specifications.

2. We provide professional-led lighting technology support to meet the requirements of customers about photoelectric color.

3. Within 12 hours of the corresponding customer inquiry, our commissioner will promptly get in touch with the customers.



After-Sale Service



1. Norming Lighting products come with 5-year limited warranty from the date of the purchase by the clients.

2. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides.

3. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items.

4. There is no fault rate for the items we delivered, if there is a lamp that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you.

5. We are equipped with a good after service department and never escape our responsibility.
