Highly Efficient LED Floodlight Designed 100W for Large Area Lighting Electronic LED Control Gear Driving 120 Lumilleds SMD3030 with Asymmetrical Distribution
LCD (HK) -CESP LIGHTING CO., LIMITED- Color Temperature：3000K 4000K 6500K
- Lamp Body Material：Aluminum
- Power：60-99W
- Projection Distance：18-25m
- Application：Park, Square, Factory, Garden, Industrial, Port, Squarehigh Way
- IP Rating：IP66
Base Info
- Model NO.：LCD-FK-103-LNXXXX
- Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV
- Operating Voltage：220-240V
- Input Voltage：24V
- LED Chips Brand：Lumileds, Osram, CREE, Bridgelux
- Transport Package：Carton Box
- Trademark：LCD brand
- Origin：Shenzhen City, China
- HS Code：9405409000
- Production Capacity：50000PCS , Year
Description
| Model No LCD-FK-50W LCD-FK-100W LCD-FK-150W LCD-FK-200W LCD-FK-240W |
| Input Power 50W 100W 150W 200W 240W |
| Product Size 330*373*50mm 330*373*50mm 330*373*50mm 441*373*50mm 441*373*50mm |
| Efficiency 145lm/W±10% with Ra > 70 or 130lm/W±10% with Ra > 80 |
| LED Brand SMD 3030 or SMD 5050 |
| CCT 3000K / 4000K / 5000K / 6500K ( 2700K can be customized ) |
| CRI Ra>70 or Ra>80 |
| Body Color White-black ( optional for RAL9006) |
| Power Factor >0.95 |
| IP Grade IP66 |
| IK Grade IK08 |
| Input Voltage 100-277VAC |
| Dimming Options DALI or 1-10V |
| Beam Angle 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40 |
| Working Temp -30ºC ~ +50ºC |
| Warranty 5-7 Years |
| Lifetime 45ºC 90000Hours |

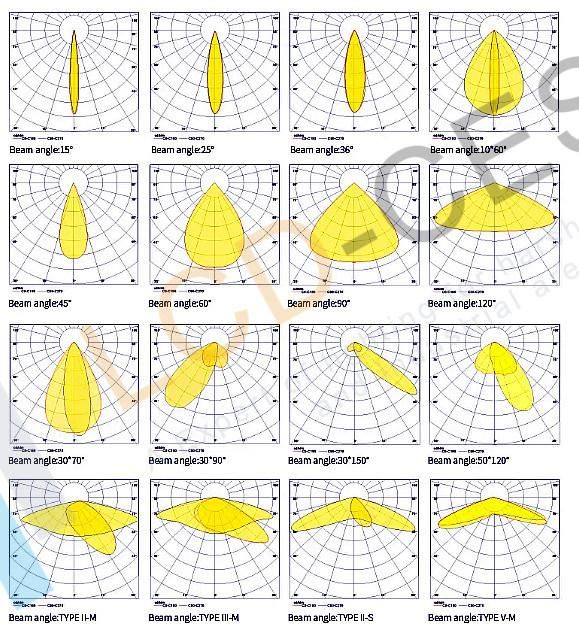

Optic len lighting distribution curve

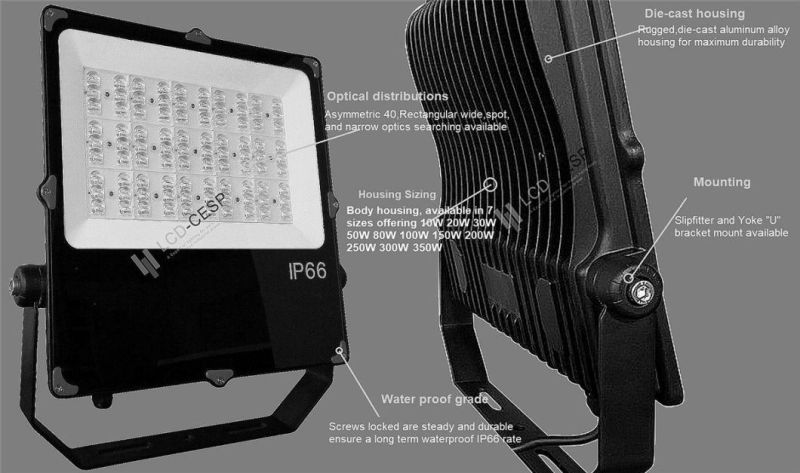

Floodlight configurations

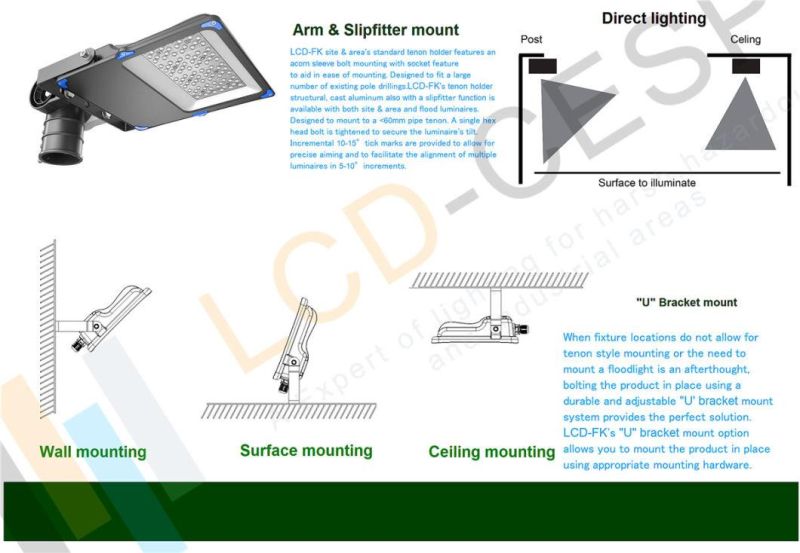

Products installation Mounting

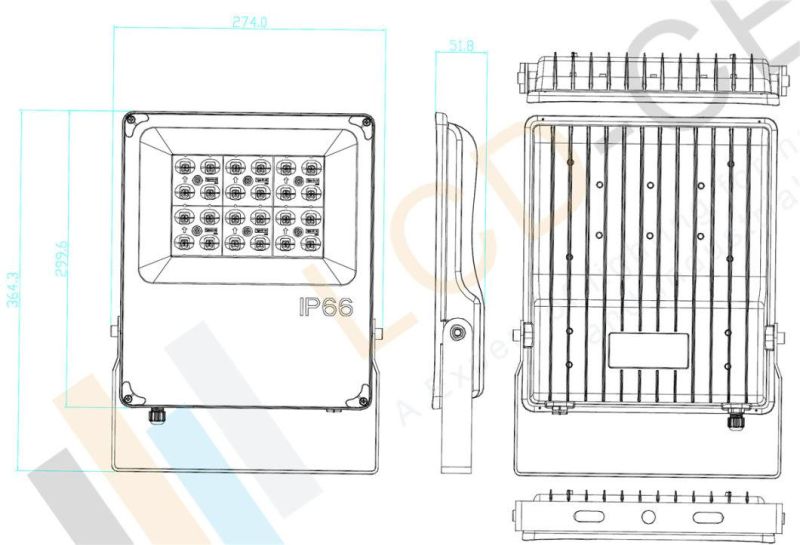

Products Dimension

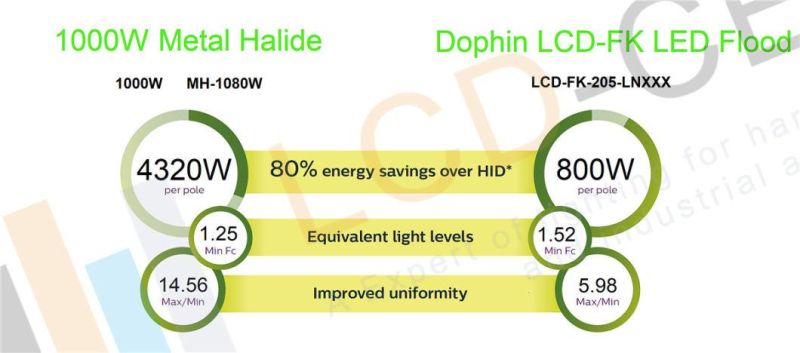

Energy saving
FAQQ1 Are you a trading company or factory?
A: We are the factory in ShenZhen city China. We have IECEx, ISO9000 and ISO9001 quality system and R&D department and ERP system too. Most of our products with CE, RoHs, SAA,C-tick, IECEx, Atex,UL,ETL and TUV certificated and we can work with our customers to get what on requests certificates.
Q2 Can we make our own label on the sample lights?
A: Yes, you do and you can like what you want such as label, logo, printing box and carton.
Q3 If our project is by ocean side, what if your lights be anti-corrosion?
A: We have our own Marine LED lighting fixtures series just focusing on Maritime condition with 7 years warranty.
So you don't worry about that issue.
Q4 I really would like to try a sample firstly, is that possible?
A: Yes, that's sure and you the most welcome. Special service for special customer!

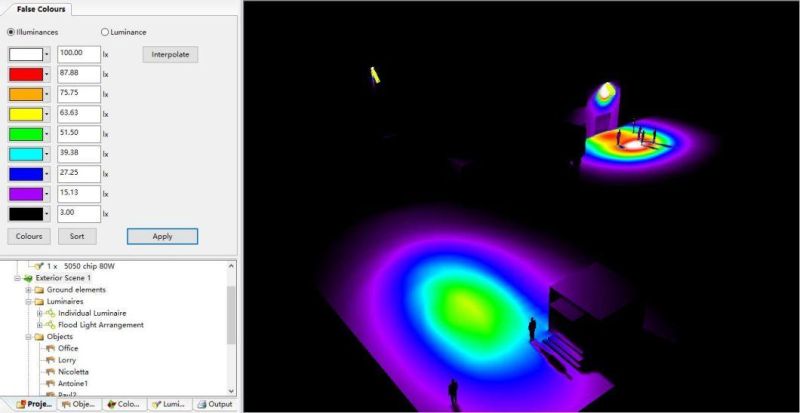

Q5 We now have a football stadium project need to do a lighting solution optic design and plan; can you help us?
A: Yes, we do, we are the leader of outdoor high-power LED flood lights and fixtures solution experts and factory, our R&D department can provide you some idea about the best lighting solution and plan.
Q6 I have a football field or a tennis court for a lighting solution, what's your suggestion?
A: Could you please give me the below information:
- the area of the dimension L X W,
- the location and height of the light fixture poles,
- the requirement of the illumination.
Products Specification
Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-FK-013 10W 1300 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 140x107x32
LCD-FK-023 20W 2600 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 240x180x50
LCD-FK-033 30W 3900 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 270x200x50
LCD-FK-053 50W 6500 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 400x300x80
LCD-FK-083 80W 10400 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 440x350x140
LCD-FK-103 100W 13000 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 500x400x140
LCD-FK-153 150W 19500 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 520x450x140
LCD-FK-203 200W 26000 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 570x470x150
LCD-FK-303 300W 39000 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 140x107x32
SUITABLE FOR: LED FK Series, a professional, powerful,energy saving replacement for high intensity discharge lamps.With a compact and modern design,LUMILEDs (3030) SMD LED chips, a high lumen maintenance factor with Meanwell driver, we have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.
Strong housing corrosion resistant made of black die-cast aluminum,featuring high heat dissipation and superior aesthetics with longer lifetime. High transmission rate tempered glass increases rate up to 93%,anti-impact rating IK08. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. An overall IP66 grade to ensure fully water-proof. Our state of the art UL CE TUV etc driver, or be includes a built in 10kV surge suppressor with universal voltage capacity 100-277v 50/60Hz. Ideal for indoor and outdoor area lighting such as Marine, Mining, landscaping, buildings,and parking areas. Works well for wall mounting or ground mounting.
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***INDUSTRIEL PROJECTEUR
PROJECTEUR IP65
FOURNI AVEC UN CONNECTEUR DE LIAISON IP67
Extérieurs ou intérieurs. Éclairage de forte puissance
EXTERNAL PROJECTOR
PROJECTEUR INDUSTRIEL
PROJECTEUR HAUTE PUISSANCE 100W - 150W & 200W
Étanche LED ultra performant à choix de puissance intégré.
ILLUMINAZIONE INDUSTRIALE
FARETTI
Proiettore rettangolare
Proyector rectangular / Proyector cuadrado
Proiettore Quadro
Proiettore a LED
Proyector a LED
LED PER ILLUMINAZIONE COMMERCIALE E INDUSTRIALE
un proiettore a led dimmerabile 1-10V dotato di un driver 1-10V
lampade a led, faretti led da interno, plafoniere led, luci led da incasso, spot a led
L'illuminazione industriale led
lampade industriali
lampade led industriali
lampadario industrial
l'illuminazione led industrial
l'illuminazione industriale a led
l'illuminazione industriale
L'illuminazione industriale led
dell'illuminazione per ufficio
lampada ufficio
l'illuminazione led industrial
plafoniere industriali led
plafoniera led industrial
L'illuminazione led industrial
lampade industriali led - lampade a led per capannoni industriali, fari a led per capannoni industriali, luci led per ufficio
luci industriali
l'illuminazione capannoni
fari industriali a led
Iluminación Industrial Exterior
Iluminación Industrial Exterior
Iluminación Exterior
PROYECTOR LED
Iluminación Led Industrial
Eclairage extérieur
Projecteurs de dernière
projecteurs
Eclairage technique
Eclairage commercial
Projecteurs linéaires professionnels
Projecteurs professionnels
without compromising light quality or a sense of security for those in the area.
Power saving and free maintaining
Floodlight configurations
Mounting
Optical distributions
Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40
Dimension
Products Specification
Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-FK-013 10W 1300 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 140x107x32
LCD-FK-023 20W 2600 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 240x180x50
LCD-FK-033 30W 3900 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 270x200x50
LCD-FK-053 50W 6500 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 400x300x80
LCD-FK-083 80W 10400 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 440x350x140
LCD-FK-103 100W 13000 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 500x400x140
LCD-FK-153 150W 19500 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 520x450x140
LCD-FK-203 200W 26000 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 570x470x150
LCD-FK-303 300W 39000 3k / 4k / 65K 85 ~ 265VAC 0.12A 0.5Kg 140x107x32
SUITABLE FOR: Proiettore rettangolare to replace the traditional HPS, Metal Halide & Mercury Vapor Highbay with an energy saving of over 70%. Using high quality parts for long li switching and optional dimm cause of the less heat production, the optics stay more clean. Various beamangle and Kelvin colors available.
Applications: Warehouse, Logistic center, production plant, Exhibition hall, Gym, Store
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
