• Model NO.：LCD-FK-155-LN45
• Certification：CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, RoHS, SAA, UL, cUL TUV
• Operating Voltage：220-240V
• Input Voltage：220V
• LED Chips Brand：Osram
• Transport Package：Carton Box
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

 MaterialAluminium die cast ADC12 housing +4mm temper glass faceEfficacyup to 160 lumen /wattLEDs chipLUMILEDs SMD5050 or SMD3030SDCM<5FK flood driverMeanwell or Sosen VP or PH top high quality driver Optic beam7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40Ingress protectionIP66Mech. impact protection codeIK08 Impact ratingMounting"U" bracket / slipfitter without compromising light quality or a sense of security for those in the area.


Model No                      LCD-FK-50W                 LCD-FK-100W              LCD-FK-150W               LCD-FK-200W            LCD-FK-240W

Input Power                       50W                               100W                         150W                           200W                        240W

Product Size               330*373*50mm        330*373*50mm        330*373*50mm        441*373*50mm              441*373*50mm

Efficiency                                                          145lm/W±10% with  Ra > 70  or 130lm/W±10% with Ra > 80

LED Brand                                                                           SMD 3030 or SMD 5050

CCT                                                                  3000K / 4000K / 5000K / 6500K ( 2700K can be customized )

CRI                                                                                                Ra>70  or Ra>80

Body Color                                                                    White-black ( optional for RAL9006)

Power Factor                                                                                     >0.95

IP Grade                                                                                               IP66

IK Grade                                                                                               IK08

Input Voltage                                                                                100-277VAC

Dimming Options                                                                          DALI or 1-10V

Beam Angle                                          7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40

Working Temp                                                                             -30ºC ~ +50ºC

Warranty                                                                                          5-7 Years

Lifetime                                                                                     45ºC 90000Hours

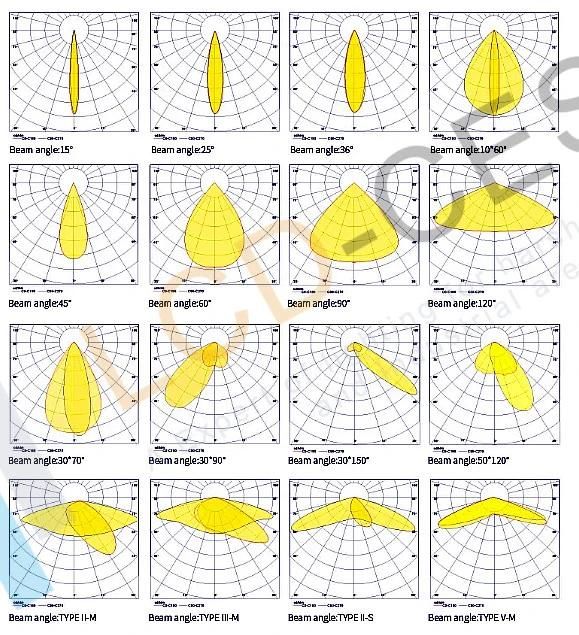

Optic len lighting distribution curve
Optical distributions
Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40

Floodlight configurations

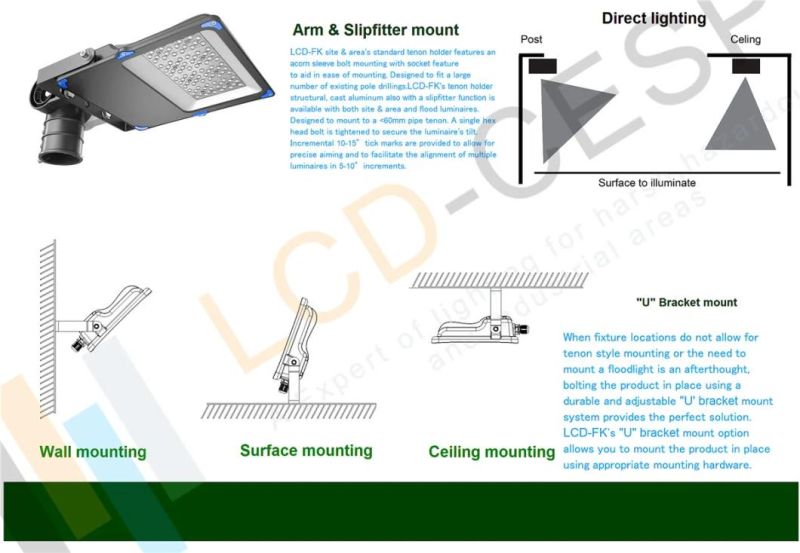

Products installation Mounting

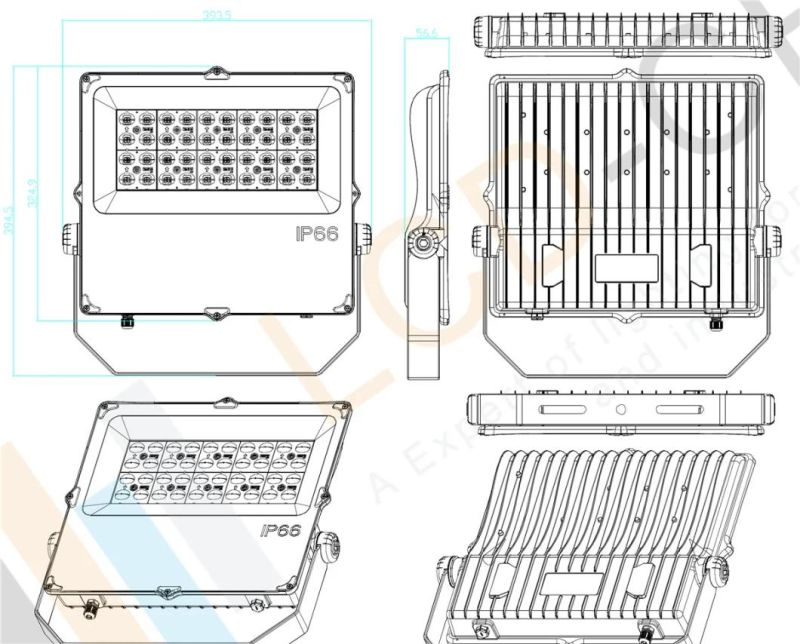

Products Dimension

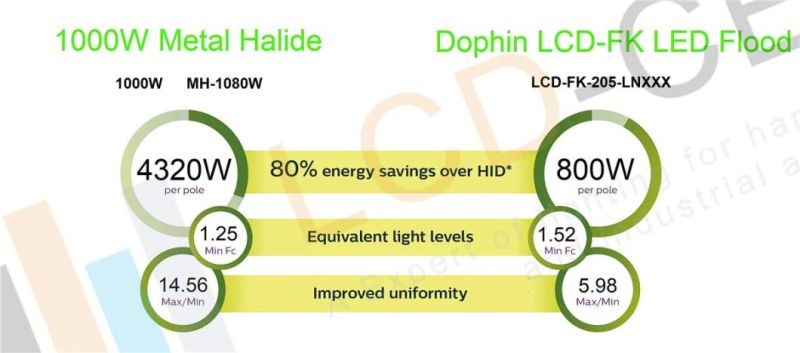

Energy saving and power saving and free maintaining

FAQQ1 Are you a trading company or factory?
A: We are the factory in ShenZhen city China. We have IECEx, ISO9000 and ISO9001 quality system and R&D department and ERP system too. Most of our products with CE, RoHs, SAA,C-tick, IECEx, Atex,UL,ETL and TUV certificated and we can work with our customers to get what on requests certificates.

Q2 Can we make our own label on the sample lights?
A: Yes, you do and you can like what you want such as label, logo, printing box and carton.

Q3 If our project is by ocean side, what if your lights be anti-corrosion?
A: We have our own Marine LED lighting fixtures series just focusing on Maritime condition with 7 years warranty.
So you don't worry about that issue.

Q4 I really would like to try a sample firstly, is that possible?
A: Yes, that's sure and you the most welcome. Special service for special customer!

Q5 We now have a football stadium project need to do a lighting solution optic design and plan; can you help us?
A: Yes, we do, we are the leader of outdoor high-power LED flood lights and fixtures solution experts and factory, our R&D department can provide you some idea about the best lighting solution and plan.

Q6 I have a football field or a tennis court for a lighting solution, what's your suggestion?
A: Could you please give me the below information:

1. the area of the dimension L X W,
2. the location and height of the light fixture poles,
3. the requirement of the illumination.

Model No.   Power(W)    Lumens(lm)    Color temperature    Input Voltage   Current    Weight(kg)    Dimensions (mm)

LCD-FS-013  10W          1300              3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         140x107x32
LCD-FS-023  20W          2600              3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         240x180x50
LCD-FS-033  30W          3900              3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         270x200x50
LCD-FS-053  50W          6500              3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         400x300x80
LCD-FS-083  80W         10400             3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         440x350x140
LCD-FS-103  100W       13000             3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         500x400x140
LCD-FS-153  150W       19500             3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         520x450x140
LCD-FS-203  200W       26000             3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         570x470x150
LCD-FS-303  300W       39000             3k / 4k / 65K              85 ~ 265VAC    0.12A        0.5Kg         140x107x32

SUITABLE FOR: Security & yard lighting, trucking, farms, low stud roofs, all commercial & industrial applications.
Security & yard lighting, trucking, farms, low stud roofs, all commercial & industrial applications. INDUSTRIAL FLOODLIGHTS
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
