• Model NO.：5M-S4 Solar Street Lights
• Input Voltage：12v
• With Light Source：With Light Source
• LED Chips Brand：Epistar
• Light Source：LED Light
• 20W Solar Street Lights：Solar Street Lights
• Solar Panel：100W
• Solar Battery：100ah
• Pole Height：5m
• Lighting Time：11-12 Hrs
• Overcast Weather：3-4 Days
• Design Based on：Solar Radiation 5.0kwh
• Quality Warranty：3-5 Years
• Transport Package：Good for Exporting
• Specification：CE&EN, ISO9001, CCC
• Trademark：BRIGHT
• Origin：China
• HS Code：94054090
• Production Capacity：2000PC,Month Solar Street Lights

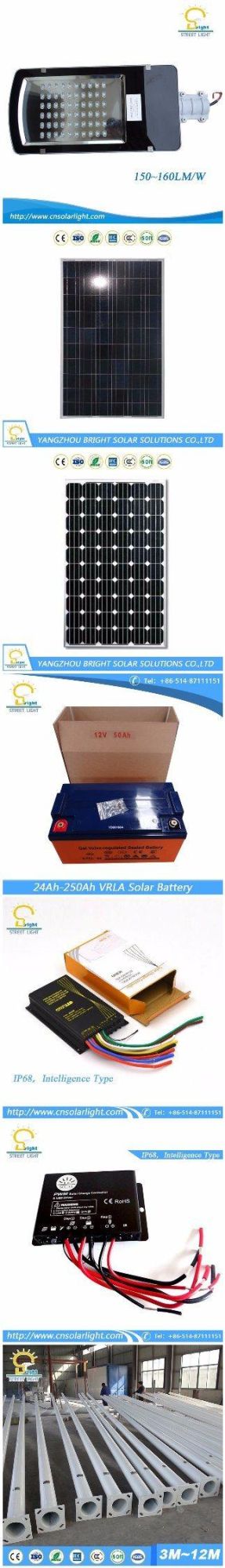

LED Street Lamp Producing Power 9W-250W
High Lumen:150-150LM/W;Lifespan:50000-100000Hrs* Technical Descriptions* Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant,IP65 or IP68* Application with Polyester Substance in its Surface.* Reflector: High Purity Aluminum or Stainless Steel SS304,Mirror Polish.* LED Cooler: Aluminum Material, Producing By Module* Cover Glass: High Strength and High Transparent Toughened Glass* Fastener Bolt and Screws: Stainless Steel, Anti-theft screw.* Ambient Temp:-40~+50°C;Humidity:10%~95%* Arm Diameter: 48 or 60mmSolar Panel 18V/36V--Poly &Mono Silicon 5W-310W* Before Production
-Control Of  Raw Material Before Use
-Data Recording Of  Raw Material---Products Tracebility* During production
-Control At Each Step Of  Production
-Validation Of Each Step By Quality Controllers* After production
-Systematic Flash Test On Each PV Modules
-Quality Control With IEC Compliance
-Tests In Our Facility Testing
-Optional: Third Party Inspection Before Shipment If Needing.* Limited Warranty
-Workmanship for 5 years,90% of minimum power output over 12 years,80% over 20 years.
-The Solar Panels Are Manufactured In According To The IEC61215 Standards.Lifespan:20-25 YearsSolar Battery 24AH~250AH/12V* Gelled battery, Sealed Type. Deep Cycle. Maintenance Free.* Real Green Power* Low Internal Resistance* Low Self-discharging Rate* Long-life Design* Wider Temperature Range* Extremely good discharge recovery ability Solar Charge Controller,IP68 Rating* Intellectual Control Technology Based On MCU And Special Software.* Adopt Tandem PWM Charge Control Method, So That The Voltage Loss Of Electrical Circuit Is Only The Half Of  Diode Charge, Charge Efficiency To Improve By 3% - 6%.* The Over Discharging Recovery Control And Automatically Floating Charge Control Can Prolong The Battery Service Life.* Battery Reverse Connection Protection, Over-voltage Protection And Under-voltage Protection.* Solar Module Reverse Connection Protection.* Automatically Recovery Output, Output Over Current Protection And Out Short Circuit Protection* Intelligent Time Control System, It Can Set Up 1-15 Hours Timing Or Delay Time ( Set Period To Resume Current Output, Two Period Can Be Set.)* Light Control, Time Control, Temperature Control* High-precision Voltage Control For The Battery Safety Work.* Waterproof Design.Steel Pole From 3M-12M For Street Lighting. 15M-50M For High Mast Pole* Material
-Q345B/A572,Minimum Yield Strength>=345n/mm2
-Q235B/A36,Minimum Yield Strength>=235n/mm2* Shape
-Round, Multi-pyramidal, Column form, Polygonal Or Conical* Production Process
Raw Material Test→Cutting→Molding Or Bending →Welding (Longitudinal ) →Dimension Verify→Flange Welding→Hole Drilling →Calibration →Debur →Galvanization Or Powder Coating, Painting→Recalibration→Thread→Packaging
Advantage Of Solar Street Lighting Syatem
* Green Energy,Low Power Consumptiom,Save 60%~80% Than Others.
* Higher Power,Higher Brightness Intensity,Good Color Rendition.
* Save Electricity Cost,Save Electric Transformer And Cable Cost,Free Maintanenance.
* Environmental Impact---Eliminate Hazardous Disposal,Low Light Pollution,No Radiation.
* Longer Lifetime: Between 80000-100000 Hrs,If Lighting 12Hrs/Night Could Use At Least 12-22 Years.
* Less Heat Generated Compared To Other Sourses.
* Downward Orientation Of Light Could Adjust Lighting Angles And Lighting Range And Shape On The Ground To      Meet The Road-rectangular,Other Lighting Source Just Could Give Common Round Shape And Small Lighting        Range.

Payment & DeliveryPayment TermsT/T(perfered)
 EXW30% In Advance, 70% Balance Paid Before DeliveryFOBCFR/C&F30% In Advance, 70% Against Copy Of  B/LCIFL/CTotal Amount Above USD100,000, We Accept L/C At SightWest UnionTotal Amount Less Than USD1,000PayPalDelivery Time15-20 Working Days After Receiving Down Payment For One Container.
