• Model NO.：JY01
• Certification：CE, RoHS
• Input Voltage：90-305V
• With Light Source：With Light Source
• LED Chips Brand：Optional
• Package：Anti-Shock Packaging Material, with Bubble Bags an
• CRI：70
• Light Distribution：70*150
• Transport Package：Carton
• Specification：05
• Trademark：Jinyuan
• Origin：China
• HS Code：9405409000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. JY01 Certification CE, RoHS Input Voltage 90-305V With Light Source With Light Source LED Chips Brand Optional Package Anti-Shock Packaging Material, with Bubble Bags an CRI 70 Light Distribution 70*150 Transport Package Carton Specification 05 Trademark Jinyuan Origin China HS Code 9405409000 Production Capacity 5000PCS/Month

Product Description

At Jinyuan optoelectronics, our high-quality outdoor led  lighting products are the perfect lighting solution for all of your road lighting design projects.

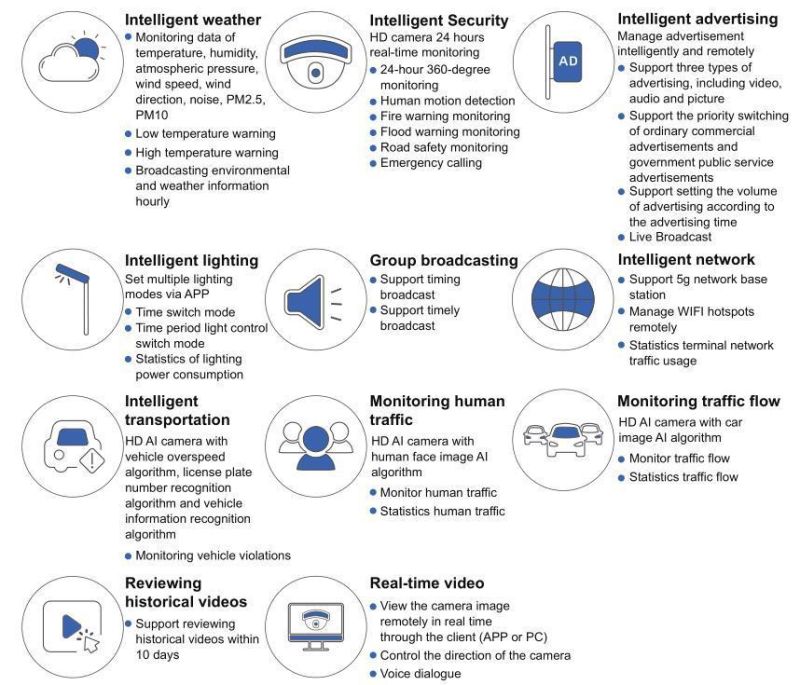

 IntroductionSmart multi-function pole is a key part of our city's realization of intelligence, and a key step to break the information island and move towards convenience and intelligence.
It includs smart pole lamp; Camera monitoring, wifi, Environmental monitoring and so on.
If you need any information, please contact us for more details.

Smart LED street light, Smart your city
We have a professional R & D team that can customize products according to customer's needs.

Device name	Specification for LED-JY01
Smart lighting	1. It has the functions of remote on, off, dimming, metering, alarm and other functions; 2. With current, voltage, power factor, remote reading of electric energy, bad lamp detection, fault alarm and other functions; 3. The communication methods are Zigbee, NB-IoT, LoRa, etc. optional; 4. Lamp power: 60W-240W, color temperature: 2700K-6500K, color rendering index Ra≥70, whole lighting effect ≥140lm/W
Environmental monitoring	1. It has the functions of detecting temperature, humidity, air pressure, wind speed, wind direction, PM2.5, noise, etc.; 2. Diameter 140mm, height 360mm
Wireless AP (WIFI)	1. 2 gigabit electrical ports ≥ 2, gigabit optical ports ≥ 1, external NK antenna ports ≥ 4; 2. 802.11a/b/g/n/ac, dual-band three-way 1750Mbps wireless rate, additional antenna and lightning protection device are required, and POE power supply is supported; 3. IP67
Video Surveillance	1. 7 inches, support up to 1920×1080@30fps high-definition image output; 2. Support timed tasks, one-key watch, one-key cruise functions; 3. Support ultra-low illumination, support 20 times optical zoom, 16 times digital zoom; 4. Support regional intrusion detection, out-of-bounds detection, motion detection and other intelligent detection functions
LED display (Size optional)	1. Display size: standard screen P4 (512mm x 1024mm); 2. Resolution: 128*256; 3. Support remote switching programs; 4. Equipped with MEAN WELL power supply
Group broadcasting	1. Network broadcasting (IP network active speakers): DC24V, power consumption ≤40W Network communication protocol: TCP, UDP, ARP, ICMP, IGMP Audio encoding: MP2/MP3/PCM/ADPCM Audio sampling, bit rate: 8kHz~44.1kHz, 16-bit, 8kbps-320kbps Signal-to-noise ratio, frequency response ≥90dB, 50Hz-15KHz(±3dB) Network sound delay, broadcast delay ≤ 30ms Built-in amplifier power: 2X30W Working temperature and humidity: -10ºC~50ºC, ≤80%RH (no condensation)
One key alarm	1. High-strength metal anti-vandal buttons, high-grade aluminum alloy panel, protection grade IPX5; 2. Built-in 1080P high-definition, ultra-wide-angle camera to achieve high-definition monitoring and video intercom; 3. Power and power consumption: DC12V/2A, ≤4W 4. Network communication protocols: TCP/IP, UDP, ARP, ICMP, IGMP, HTTP 5. Network chip rate: 10/100Mbps 6. Audio sampling, bit rate: 8kHz~44.1kHz, 16bit, 8kbps-320kbps 7. Video transmission bit rate: 128kbps-10Mbps 8. Working temperature and humidity: -20˚C~55˚C, ≤90%RH (no condensation)
Car Charging	1. Maximum output power: 7KW; 2. Maximum output current: 32A; 3. Input voltage range: 220VAC; 4. Charging and payment methods: credit card charging, WeChat payment; 5. Intelligent data management, monitoring and storage of various charging data; 6. Protection methods: overvoltage, undervoltage, overcurrent, short circuit, leakage, lightning protection, emergency stop, overheating, alarm
Gateway	It is used to deploy a smart control platform, communicate with multimedia publishing, video monitoring, environmental monitoring and other equipment for remote control and management; Remarks: Including switches, switching power supplies, fans with accessories, etc.

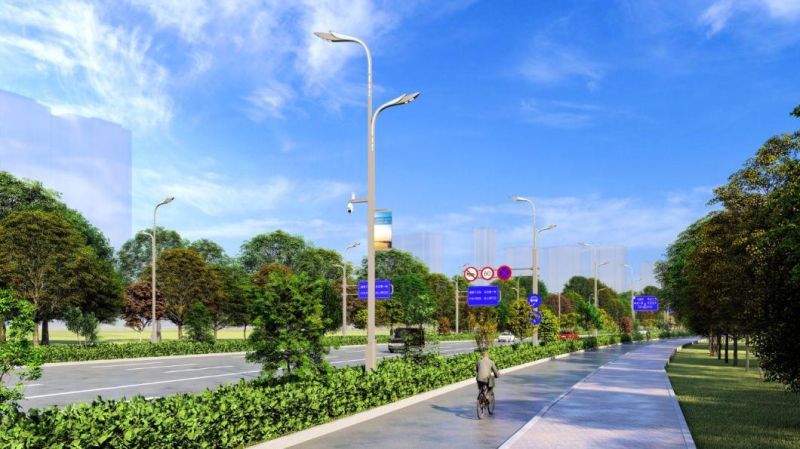

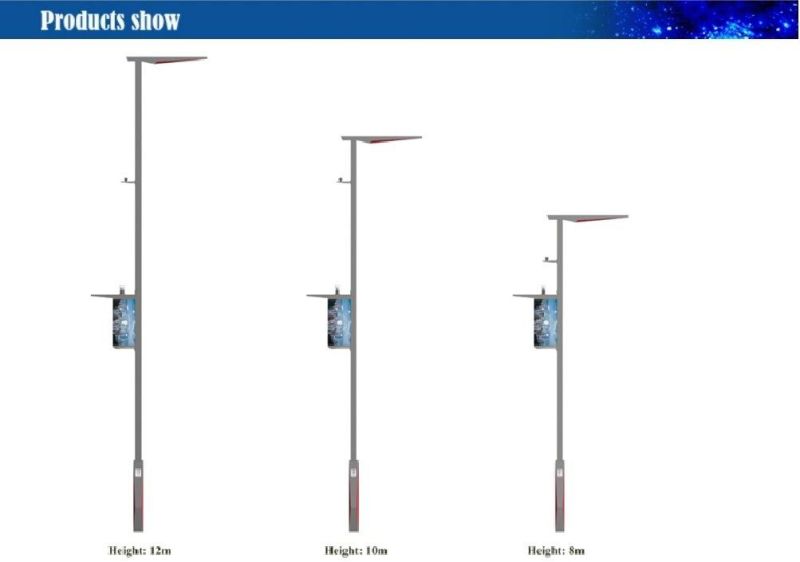

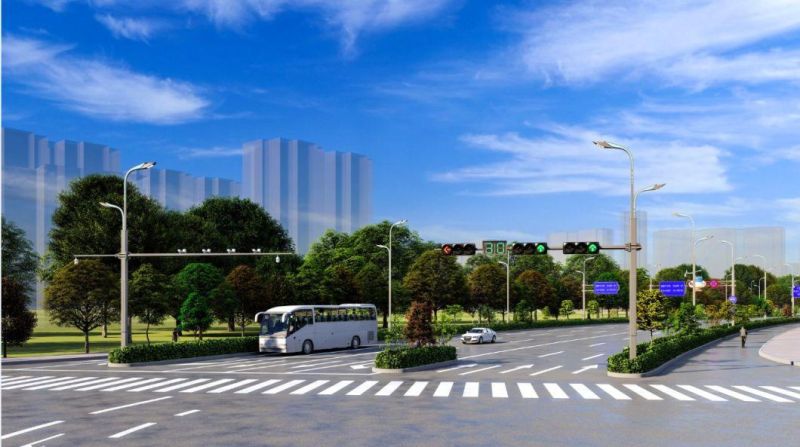

Multi-function pole with intelligent lighting with smart system

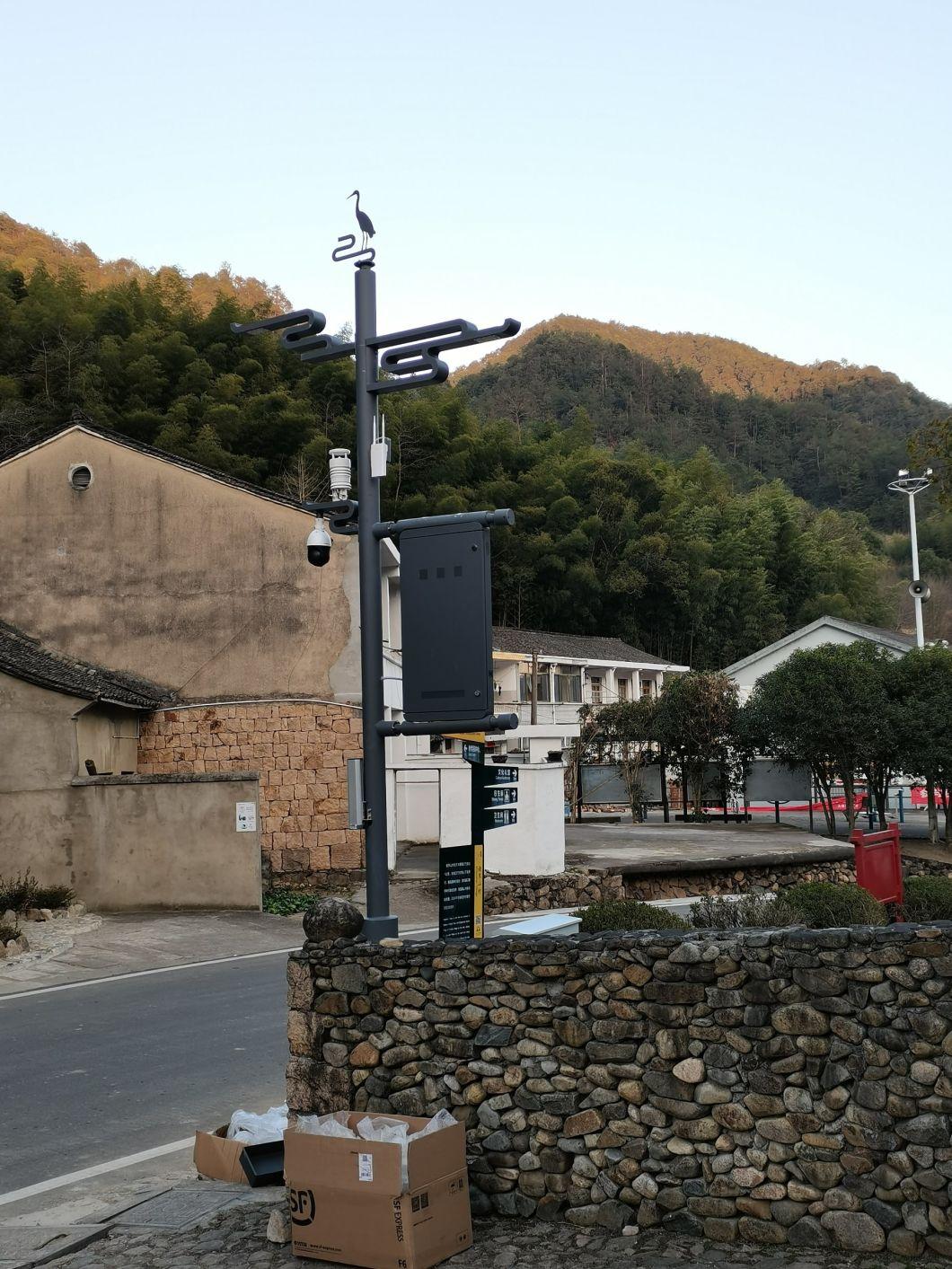

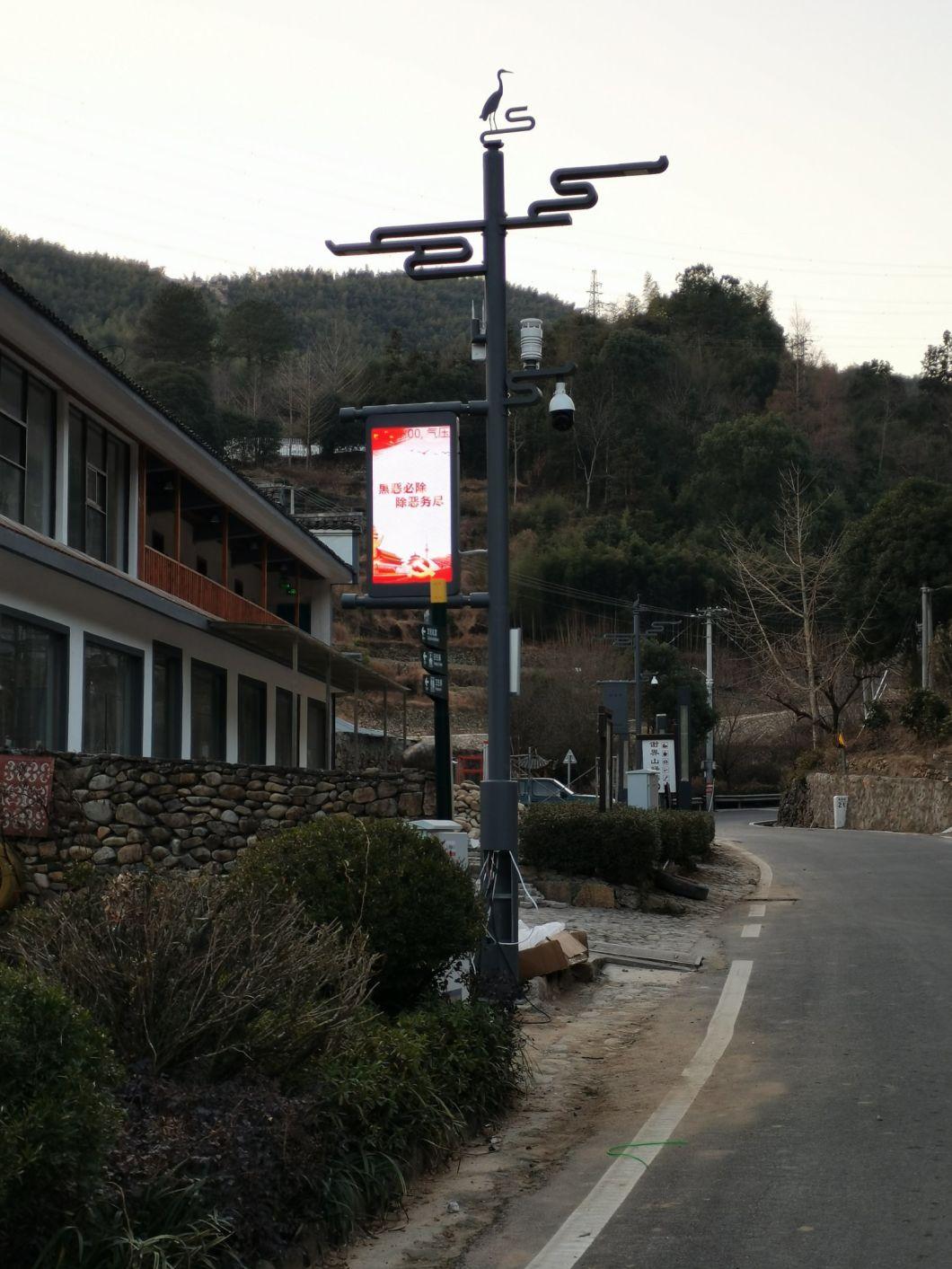

Project we did




We welcome you to shop our superior line of led outdoor streetlights, flood lights, path lights, wall washer lights, garden lights which are all crafted for professional results. At Jinyuan optoelectronics, we have the perfect led lighting system for all of your outdoor lighting design applications.
