• Certification：CCC, CE, EMC, Energy Star, GS, REACH, RoHS, SAA, SASO, UL
• Operating Voltage：100-240V
• Input Voltage：220V
• LED Chips Brand：Epistar
• Transport Package：Carton
• Specification：425*325*175mm
• Trademark：JIASHENG
• Origin：Hangzhou
• HS Code：9405409000
• Production Capacity：300000PCS,Month

Basic Info.

Certification CCC, CE, EMC, Energy Star, GS, REACH, RoHS, SAA, SASO, UL Operating Voltage 100-240V Input Voltage 220V LED Chips Brand Epistar Transport Package Carton Specification 425*325*175mm Trademark JIASHENG Origin Hangzhou HS Code 9405409000 Production Capacity 300000PCS/Month

Product Description

Slim Type IP65 LED outdoor 100W led flood light

 Product Description

Item No.	JS-FL-100W
Dimension	L235*W215*H145mm
Power	100w
Luminous flux	10000lm
Lamp efficiency	100-110lm/w
Light source	CREE LEDs or Customized
Light degradation rate	25000h ≤ 30%
Color rendering index	Ra>85
PF	PF≥0.93
Beam angle	60 ° 120°
Rated life	50000h
Color temperature	3000-7000K
Working temperature	-20~+50°C
Input Voltage	AC90-260V
IP code	IP65
Brand	JIASHENG
Warranty	3 Years
Certificate	CE, ROHS, SAA, EMC, LVD
Application	Highway, courtyard, road, outdoor, etc.
Available color	Gray/customized
Payment terms	By T.T, Western Union, L/C, etc
Pieces per carton	1pcs/ctn



1. High Power, high lumen, high quality



2. Save 80% more energy compared with traditional lighting fixtures



3. Easy to install and use, secure and reliable



4. No UV or RF interference, No mercury or lead

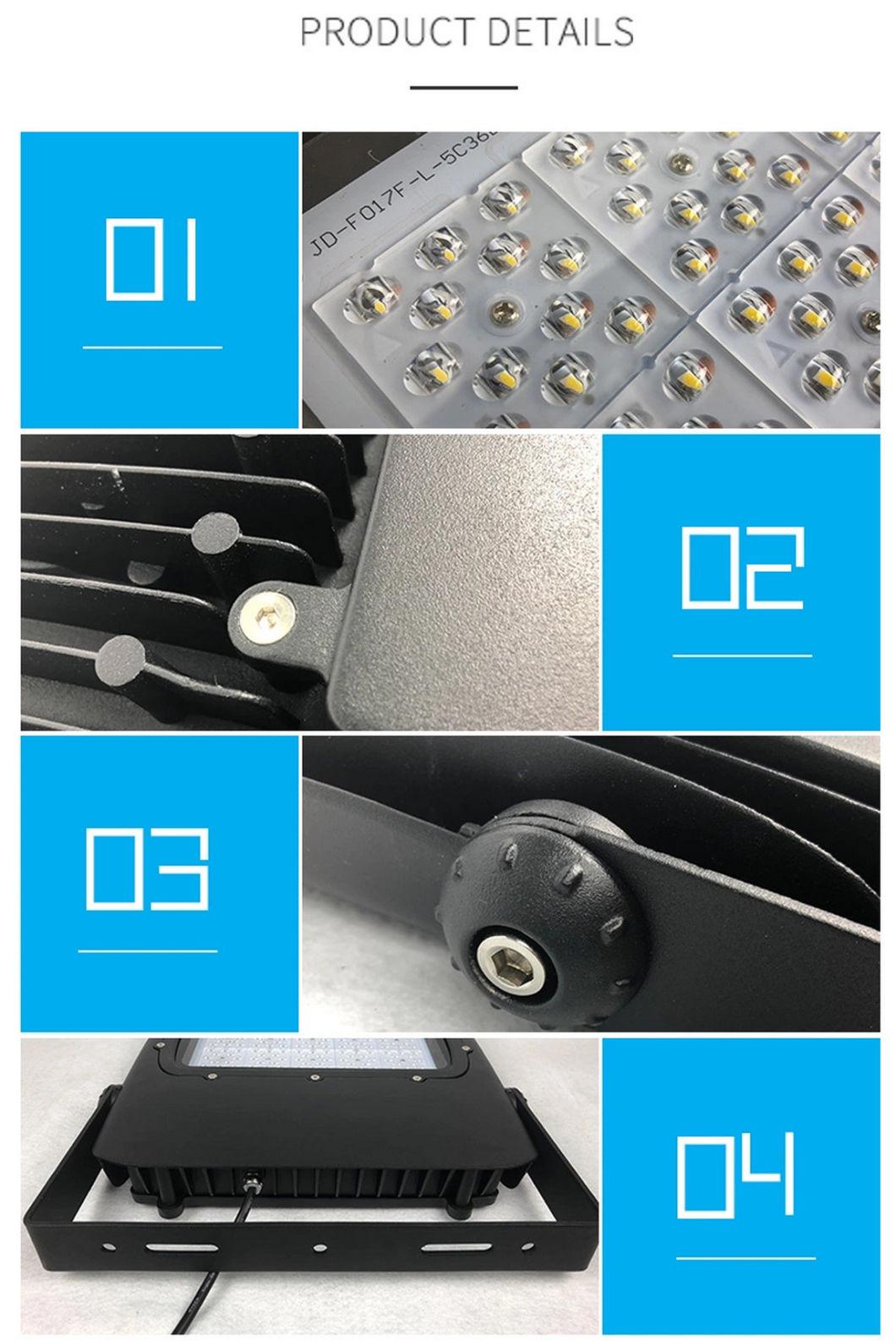

5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity  and unique design, excellent heat dissipation



6. High quality, high efficiency, high CRI & luminous flux,



7. long life span>50000hrs



8. High brightness, low consumption, green for environment



9. PMAM lens, 120°for your choice



10. Built-in LED driver with IC ensure stability of light, it can work efficiently under



11. AC85-265V in different countries and regions.AC12/24V led driver is also available



12. Potection grade is IP65

LED Flood light feature;
---Unique fin aluminium heatsink greatly reduce super bright  led light weight and guarantee the safety usage, as well as to avoid the material wastage and the freight.

---By increasing the number of fins to enlarge the area of heat dissipation and air flow,this new heatsink significantly increase the efficiency of thermal conduction with less material usage  and more saving on energy.

---There is hole on all aides of led light ,best to promote the air handling area, not only looks  beauty,but also steady.

 ---The aluminium alloy material very strong,you even can clearn it by high-pressure water gun.


1. Ultra-slim Sleek Design, stylish and classic
2. Total 8 model of heat sink. Full range: 10W, 20W, 30W, 50W, 80W, 100W, 150W, 200W
3. Reflector & heat sink integrated, pure aluminum structure for heat dissipation. Large PCB connect with aluminum housing, better for heat dissipation
4. Innovative G-buckle technology, prevent glass off, free of screw fixing, elegant appearance, easy for assembling
5. IP65 for outdoor use

FAQ
1. I am interested in JIASHENG LIGHTING products, how can I understand more?
ANS: Please refer to "Contact Us" page and reach our sales manager through email to us or make direct phone call to +86 184-5823-0918. You may also leave us a message in the Feedback session.

2. How long can I receive a sales representative reply after my inquiry?
ANS: We promise to reply every inquiry within 12 hours on working day (Monday-Saturday, Beijing Time).

3.How can Jiasheng Lighting sales representative help the customer?
ANS: Customer can reach our sales representative if you want to receive digital catalogues, ask for price quotation, seek technical support and business opinions, or asked for samples.

4. Is Jiasheng Lighting a trading company?
ANS: Jiasheng Lighting stared as a fluorescent lamps manufacturer since 2013 and expanded into an integrated trading and manufacturing company. We own one factory buildings and an international trading company. That's why we are selling at competitive price and sales representative are strong technical advisor.

5. What are the main products of Jiasheng Lighting?
ANS: We have 6 years of experience in tubular lighting source, that's why we have a high production capacity in top quality T8 LED & fluorescent tubes (including UV light). As we also started LED filament bulbs production early, we have a comprehensive collection in standard, decorative, colored light source or dimmable models. LED Panels (dimmable available), SMD bulbs, batten lights, aquarium lamps, street light, high bay light, etc. are available also.

6. Do Jiasheng Lighting support custom service?
ANS: Yes, we welcome custom service request from customer. Understanding that customer may have different requirements on product configuration or special needs on unique products, JIASHENG LIGHTING R&D and technology team will support with best effort. Customer can provide samples and documentation on specification to our sales representative for customization.

7. What are the strengths of JIASHENG LIGHTING products?
ANS: JIASHENG LIGHTING has 6 years of experience in lighting industry. We have well developed connections with suppliers in qualified LED components. Our sizable plants and skilled workers maintained the production capacity while our product quality is guaranteed with 2 years warranty. We have obtained CE, RoHS, ERP and UL certification from TUV and SGS to easy export barriers. With good production designs and top notch after-sale service, JIASHENG LIGHTING is certainly a best choice of LED suppliers.

8. How to deal with production & transportation defects?
ANS: Customer can provide a defect summary on the list of issues with quantities,Also please remark  the operating and storage conditions. We can provide replacement in next shipment per contract terms once it is confirmed the defects arising from supply side.

9. What is the production lead time?
ANS: Normally, our turnaround time is 7-10 days for sample ( and 25-30days for mass production. During Peak season, we have special shift arrangement to control sample delivery within 12 days and bulk order within 35 days.)

10. What are the major markets of JIASHENG LIGHTING?
ANS: JIASHENG LIGHTING targets America, Europe & Asia as key markets. We are experienced in export to US, Canada, Argentina, Brazil, Germany, Mexico, Spain, Italy, UK, Korea, Thailand, Australia, Iran, Israel, Dubai, etc.
