• Certification：CCC, CE, EMC, Energy Star, GS, REACH, RoHS, SAA, SASO, UL
• Operating Voltage：100-240V
• Input Voltage：220V
• LED Chips Brand：Epistar
• Transport Package：Carton
• Specification：425*325*175mm
• Trademark：JIASHENG
• Origin：Hangzhou
• HS Code：9405409000
• Production Capacity：300000PCS,Month

Basic Info.

Certification CCC, CE, EMC, Energy Star, GS, REACH, RoHS, SAA, SASO, UL Operating Voltage 100-240V Input Voltage 220V LED Chips Brand Epistar Transport Package Carton Specification 425*325*175mm Trademark JIASHENG Origin Hangzhou HS Code 9405409000 Production Capacity 300000PCS/Month

Product Description

Slim Type IP65 LED outdoor 100W led flood light

 Product Description

Item No.	JS-FL-100W

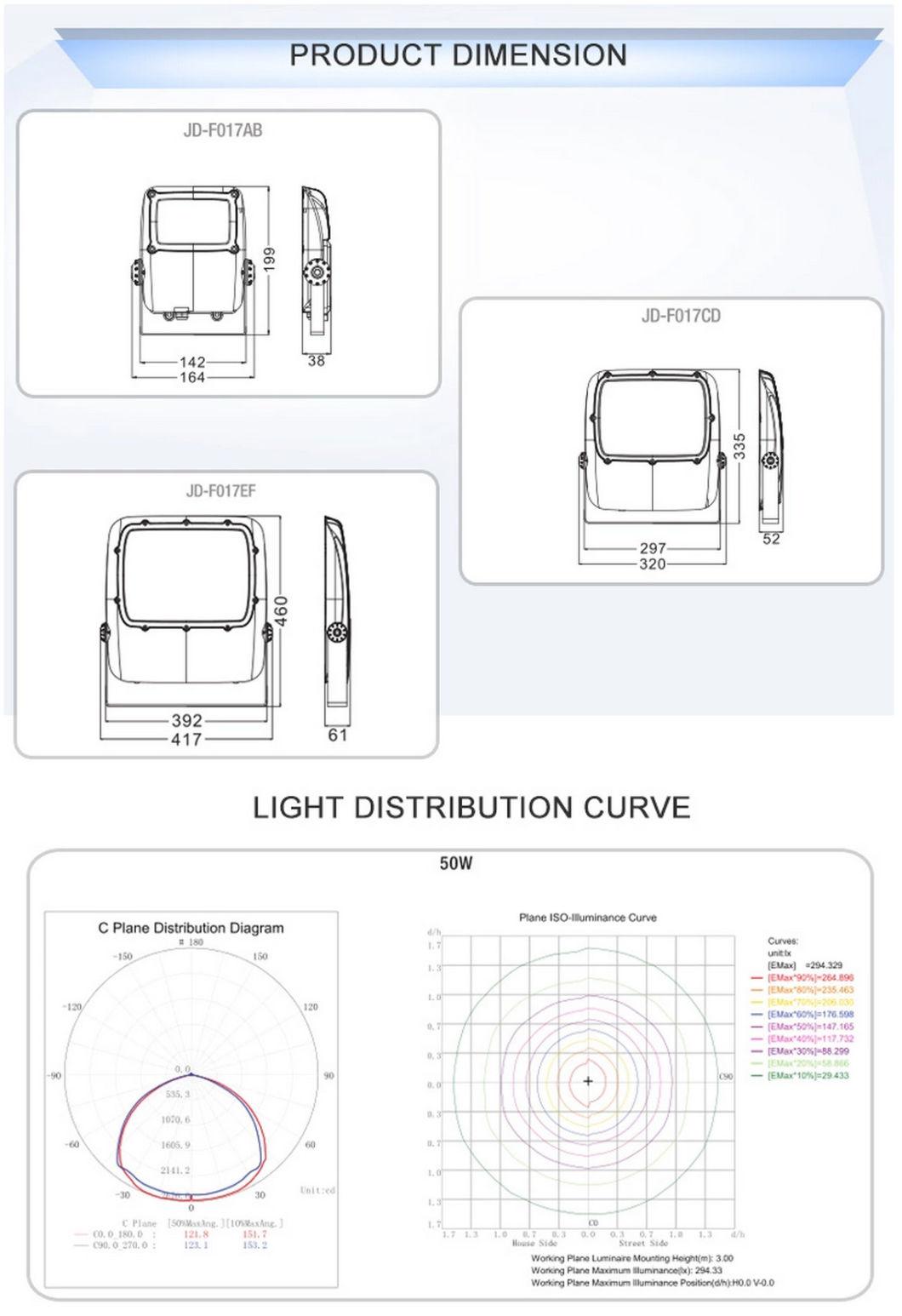

Dimension	L235*W215*H145mm
Power	100w
Luminous flux	10000lm
Lamp efficiency	100-110lm/w
Light source	CREE LEDs or Customized
Light degradation rate	25000h ≤ 30%
Color rendering index	Ra>85
PF	PF≥0.93
Beam angle	60 ° 120°
Rated life	50000h
Color temperature	3000-7000K
Working temperature	-20~+50°C
Input Voltage	AC90-260V
IP code	IP65
Brand	JIASHENG
Warranty	3 Years

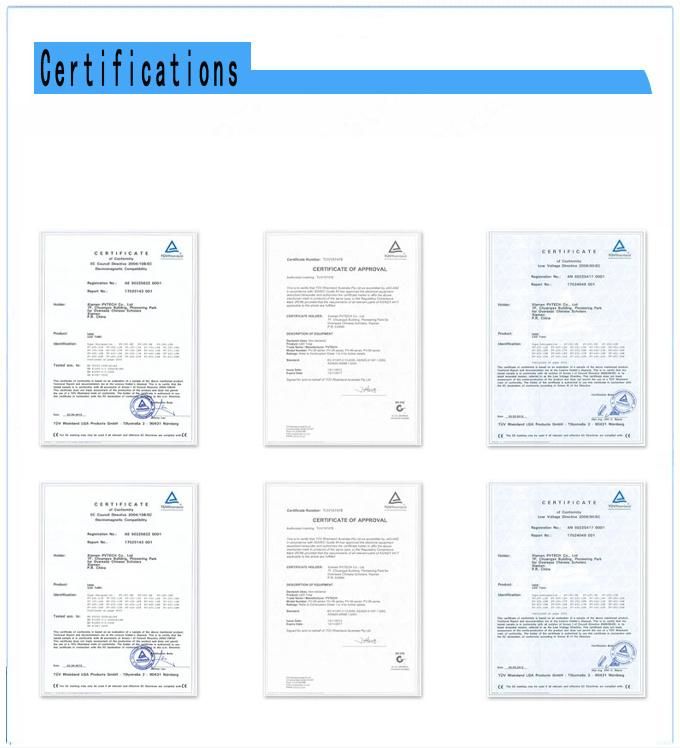

Certificate	CE, ROHS, SAA, EMC, LVD
Application	Highway, courtyard, road, outdoor, etc.
Available color	Gray/customized
Payment terms	By T.T, Western Union, L/C, etc
Pieces per carton	1pcs/ctn



1. High Power, high lumen, high quality



2. Save 80% more energy compared with traditional lighting fixtures



3. Easy to install and use, secure and reliable



4. No UV or RF interference, No mercury or lead



5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity  and unique design, excellent heat dissipation



6. High quality, high efficiency, high CRI & luminous flux,



7. long life span>50000hrs



8. High brightness, low consumption, green for environment



9. PMAM lens, 120°for your choice



10. Built-in LED driver with IC ensure stability of light, it can work efficiently under



11. AC85-265V in different countries and regions.AC12/24V led driver is also available



12. Potection grade is IP65

LED Flood light feature;
---Unique fin aluminium heatsink greatly reduce super bright  led light weight and guarantee the safety usage, as well as to avoid the material wastage and the freight.

---By increasing the number of fins to enlarge the area of heat dissipation and air flow,this new heatsink significantly increase the efficiency of thermal conduction with less material usage  and more saving on energy.

---There is hole on all aides of led light ,best to promote the air handling area, not only looks  beauty,but also steady.

 ---The aluminium alloy material very strong,you even can clearn it by high-pressure water gun.


1. Ultra-slim Sleek Design, stylish and classic
2. Total 8 model of heat sink. Full range: 10W, 20W, 30W, 50W, 80W, 100W, 150W, 200W
3. Reflector & heat sink integrated, pure aluminum structure for heat dissipation. Large PCB connect with aluminum housing, better for heat dissipation
4. Innovative G-buckle technology, prevent glass off, free of screw fixing, elegant appearance, easy for assembling
5. IP65 for outdoor use
