• Model NO.：CR-C70-15W
• Warranty：5 years
• IP Rating：IP65
• Certification：CE, C-tick, EMC, ETL, FCC, LVD, PSE, RoHS, SAA, UL
• Voltage：110V
• Light Source：With Light Source
• LED Source：Samsung 5630 SMD LED
• Luminous Flux：125 - 140lm,W
• PC Cover：Clear PC , Frosted PC
• Beam Angle：360 Degree
• CRI：86ra
• Driver：Internal , External Driver
• Base：E26(Medium),E27,E39(Mogul),E40
• Working Voltage：85-265V,100-277V,100-300V
• Replacement：CFL, HID,HPS, Mhl, Hql, Mercury, Incandescent Lamp
• Material：6063 Aluminum, PC Optical Lens
• Transport Package：Pearl Foam Inner Box and K=K Carton
• Specification：E26(medium),E27,E39(mogul),E40
• Trademark：ATA
• Origin：Made in China
• HS Code：9405409000
• Production Capacity：300, 000,Pieces,Month

Basic Info.

Model NO. CR-C70-15W Warranty 5 years IP Rating IP65 Certification CE, C-tick, EMC, ETL, FCC, LVD, PSE, RoHS, SAA, UL Voltage 110V Light Source With Light Source LED Source Samsung 5630 SMD LED Luminous Flux 125 - 140lm/W PC Cover Clear PC / Frosted PC Beam Angle 360 Degree CRI 86ra Driver Internal / External Driver Base E26(Medium)/E27/E39(Mogul)/E40 Working Voltage 85-265V/100-277V/100-300V Replacement CFL, HID/HPS, Mhl, Hql, Mercury, Incandescent Lamp Material 6063 Aluminum, PC Optical Lens Transport Package Pearl Foam Inner Box and K=K Carton Specification E26(medium)/E27/E39(mogul)/E40 Trademark ATA Origin Made in China HS Code 9405409000 Production Capacity 300, 000/Pieces/Month

Product Description

Product Advantages
Samsung LED, MEANWELL driver, Rubycon capacitor, JAE connector
Flame retardant materials
It has temperature controller, terminals connection is easy to remove the defected driver
Unique draining design to make sure our lamps can reach IP64 waterproof level
Unique design for heat radiater and good aluminum material with excellent heat dissipation

Product Description
Samsung 5630 SMD LED, 135LM/W
MEANWELL driver, 5 years warranty
Rubycon capacitor, JAE connector, flame retardant materials
It has temperature controller, terminals connection is easy to remove the defected driver
Lamp holder base is nickel coated copper
Unique design for heat radiater and good aluminum material with excellent heat dissipation
Unique draining design to make sure our lamps can reach IP64 waterproof level
All raw material are adopted first class brand, the product quality is more reliable
The finished products can reach 135lm/w, 5 years warranty
Replacing CFL, HID/HPS, MHL, HQL, Mercury, Incandescent lamp
Projects case in USA, Japan, South Korea, Australia, Spain, USA, Italy, Malaysia, etc.

Technical Specifications
LED type: Sangsum SMD 5630
Luminous Efficiency: 135LM/W
Emitting Color: Warm White, Natual White, White, Cool White
Color temperature: 3000K, 4000K, 5000K, 6000K
Size: H123*D60, H143*D60, H146*D70, H166*D70, H186*D70, H205*D93, H235*D93, H265*D93, H265*D93, H258*D149, H267*D149, H287*D149MM
Power: 8W/10W/14W/18W/22W/27W/36W/45W/54W/80W/100W/120W/150W/180W/200W
Working voltage: 100-277V
PF>0.95
CRI> 80
Base: E26(medium)/E27/E39(mogul)/E40
Material: 6063 aluminum + PC Optical lens
Beam Angle: 360 degree
Surface color: Silver
IP Rating: IP64/IP65
Life-span: 50, 000 hours

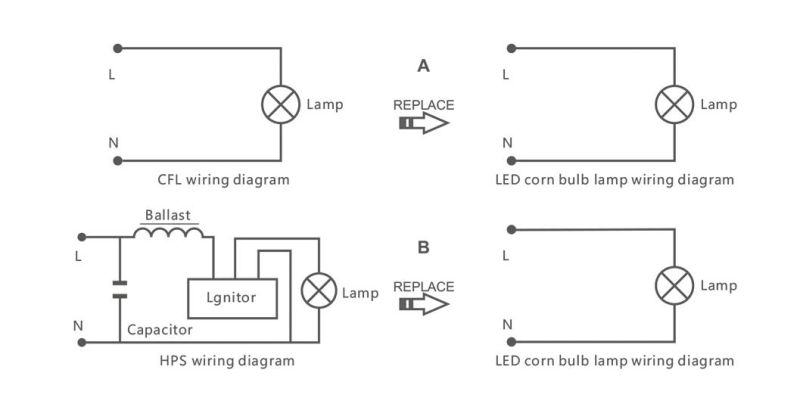

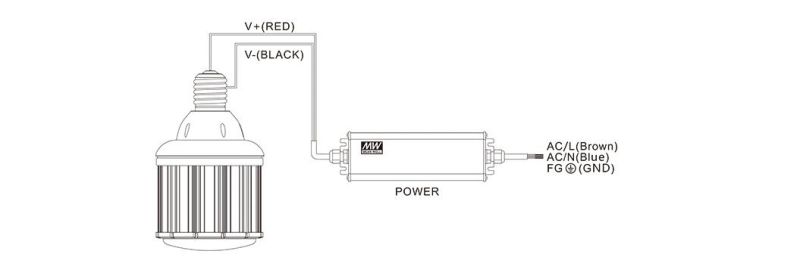

Installation Draft

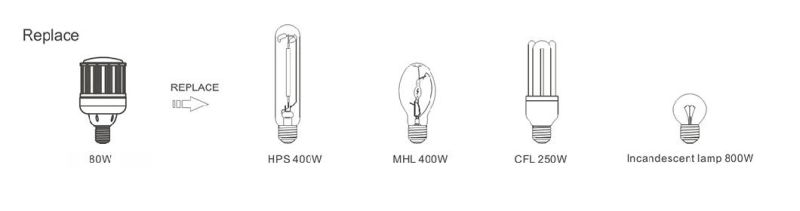

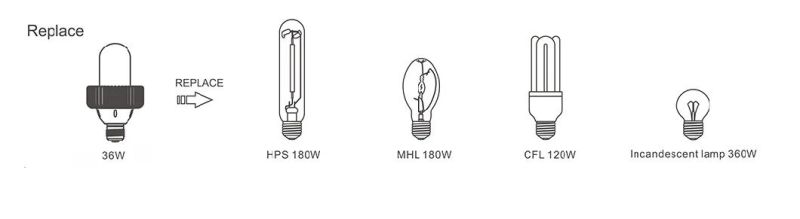

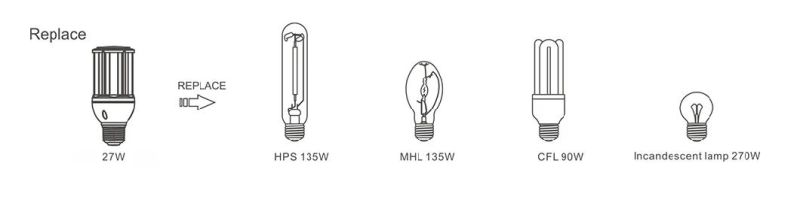

Replacement
8W/10W/14W/18W/22W Equal to 30W-50W metal halide E26 (medium) /E27
Retrofit for CFL, HID/HPS MHL HQL



27W/36W/45W/54W Equal to 80W-200W metal halide E26 (medium) /E27/E39 (mogul) /E40
Retrofit for CFL, HID/HPS MHL HQL



80W/100W/120W Equal to 200W-400W metal halide E39(mogul)/E40
Retrofit for CFL,HID/HPS MHL HQL

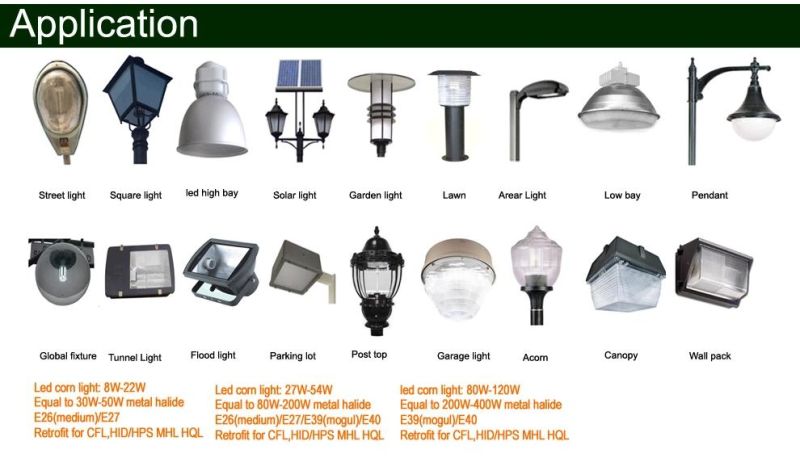

Application
Widely used in high bay, Low bay, Cobra-head, Acorn Light, Area Light, Street Light, Solar light, Tunnel Light, Global fixture, Flood light, Square light, Garden light, Lawn light, Pendant light, Parking lot bulb, Post top light, Garage light, Canopy bulb, Wall pack bulb, Gas station bulb, Show box retrofit, retrofit kits, exterior lighting, etc.


User Manual
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
