• Model NO.：PL-LD-015S-300W
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
• Input Voltage：AC90-305V
• With Light Source：With Light Source
• LED Chips Brand：Lumileds 5050SMD
• Transport Package：Export Standard Cartons
• Specification：920*370*170cm
• Trademark：PEONYLIGHTING
• Origin：China
• HS Code：940510000
• Production Capacity：500000PCS,Year

Basic Info.

Model NO. PL-LD-015S-300W Certification CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE Input Voltage AC90-305V With Light Source With Light Source LED Chips Brand Lumileds 5050SMD Transport Package Export Standard Cartons Specification 920*370*170cm Trademark PEONYLIGHTING Origin China HS Code 940510000 Production Capacity 500000PCS/Year

Product Description

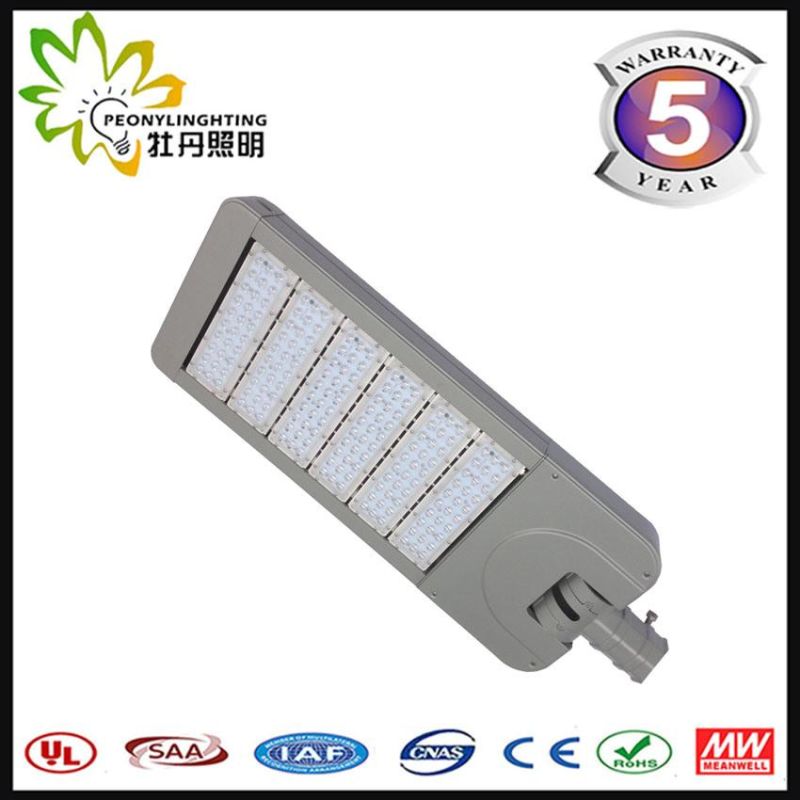

170LM/W 300W LED Street Light UL/DLC/TUV/GS/CE/RoHS/CB High Efficiency & Energy Saving






Key Features

1 Using led modules ,lumileds 5050smd light source. Lamp luminous efficiency can reach 130LM/W

2 Driver box can be opened without tools ,easy to maintain

3 Installation degree is adjustable from -90 ~ +90.

4 Beautiful appearance and unique designIP65

Datesheet

Specification

Power: 300W

CRI:>70/80

LED Qty:168PCS*5050smd

Driver:Meanwell SOSEN

Imput Voltage: AC100-265V

Luminous Flux (lm):160-170lm/w

Light color: 3000/4000/6000k

IP Rating:IP65

View Angle:150*70°

ctn size:920*370*170cm

Gross  weight:15.50kg

Power Factor: ≥0.90

Warranty :5-8 years

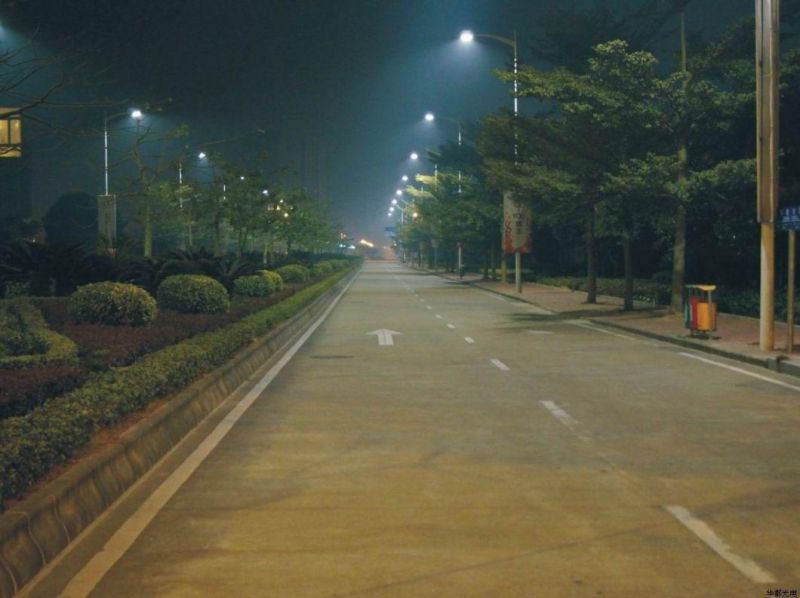

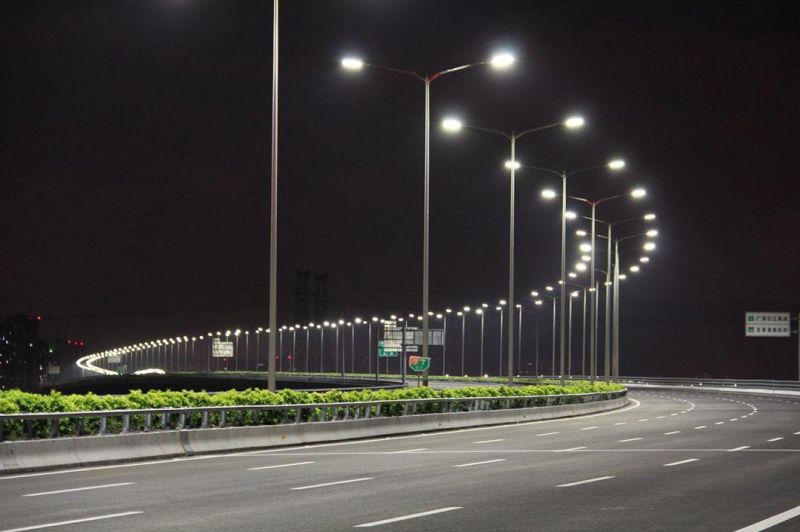

Application
road, park, highway ,country yard etc.

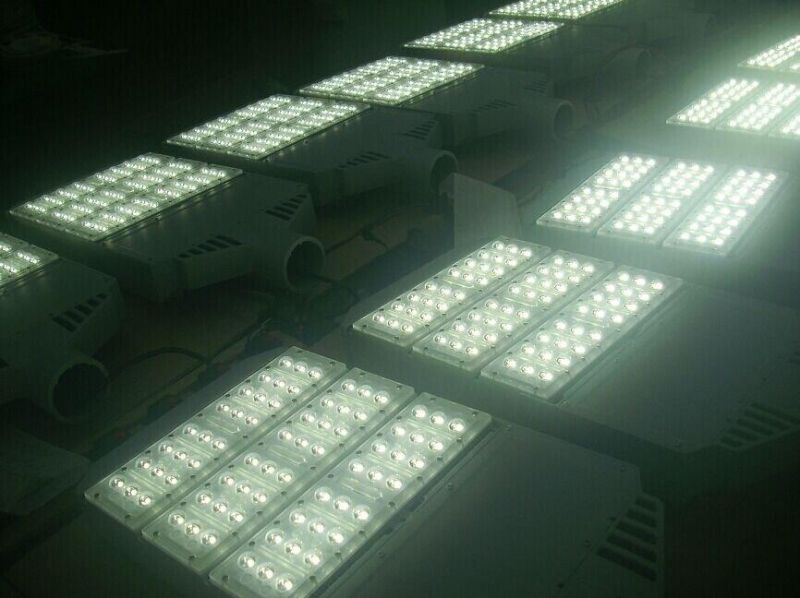

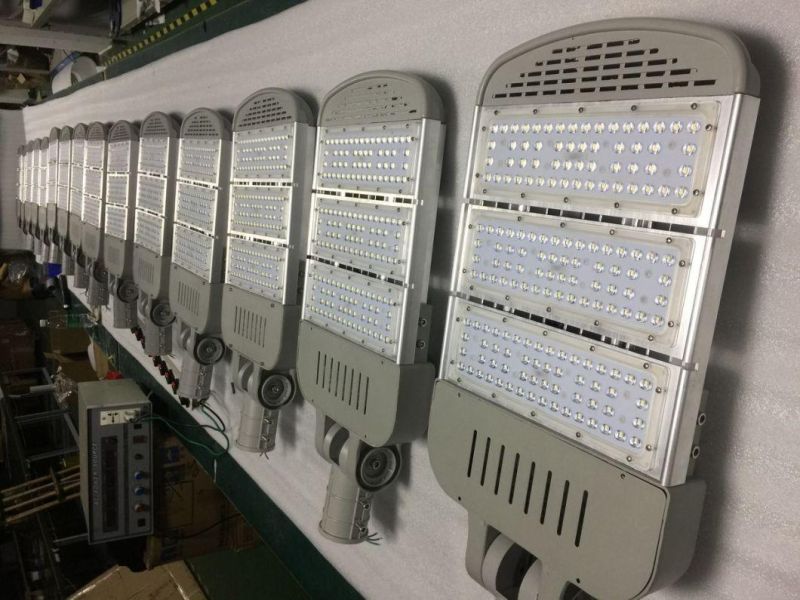

Workshop




FAQ

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
