• Model NO.：HPZMSLB
• Certification：CB, CE, CQC, EMC, FCC, LVD, RoHS
• Input Voltage：AC85-265V
• With Light Source：With Light Source
• LED Chips Brand：Osram
• Chip：SMD 3030,2835
• Driver：Meanwell or Hpzm
• Installation Pipe Dia.：50mm,60mm
• Installation Height：8-10m
• Warranty：3years, 5yeasr, 8years
• Transport Package：Normal Packing
• Specification：620*235*125
• Trademark：HPZM or OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：3000,Day

Led Street light/ Aluminum die-castingS/N.Item No.PowerRefer Size
/mmInstallation
Pipe Dia.Input
VoltageFequencyLED chipCRIPFCCTProtection
GradePacking DetailsQty/
CtnCarton Size1HPZMSLB00160-100W585*250*110ф48/60AC85-265V50/60HzSMDRa>800.953000K
4000K
6000KIP66163*30*15 cm2HPZMSLB00280-100W670*275*110ф50/60AC85-265V50/60HzSMDRa>800.953000K
4000K
6000KIP66172.5*30*15.5cm

Key Features

1).Adopting high-power CREE 3030SMD  as light source. Energy-saving, environment protecting and long life.

2). 5mm toughened transparent glass, high temperature resisting, easy for lights penetration, transmittance as hight as 92%.

3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.

4).Constant current supply, good stabilize and high security.

5).Energy saving up to 80%.

6).Good-Looking shape, easy installation

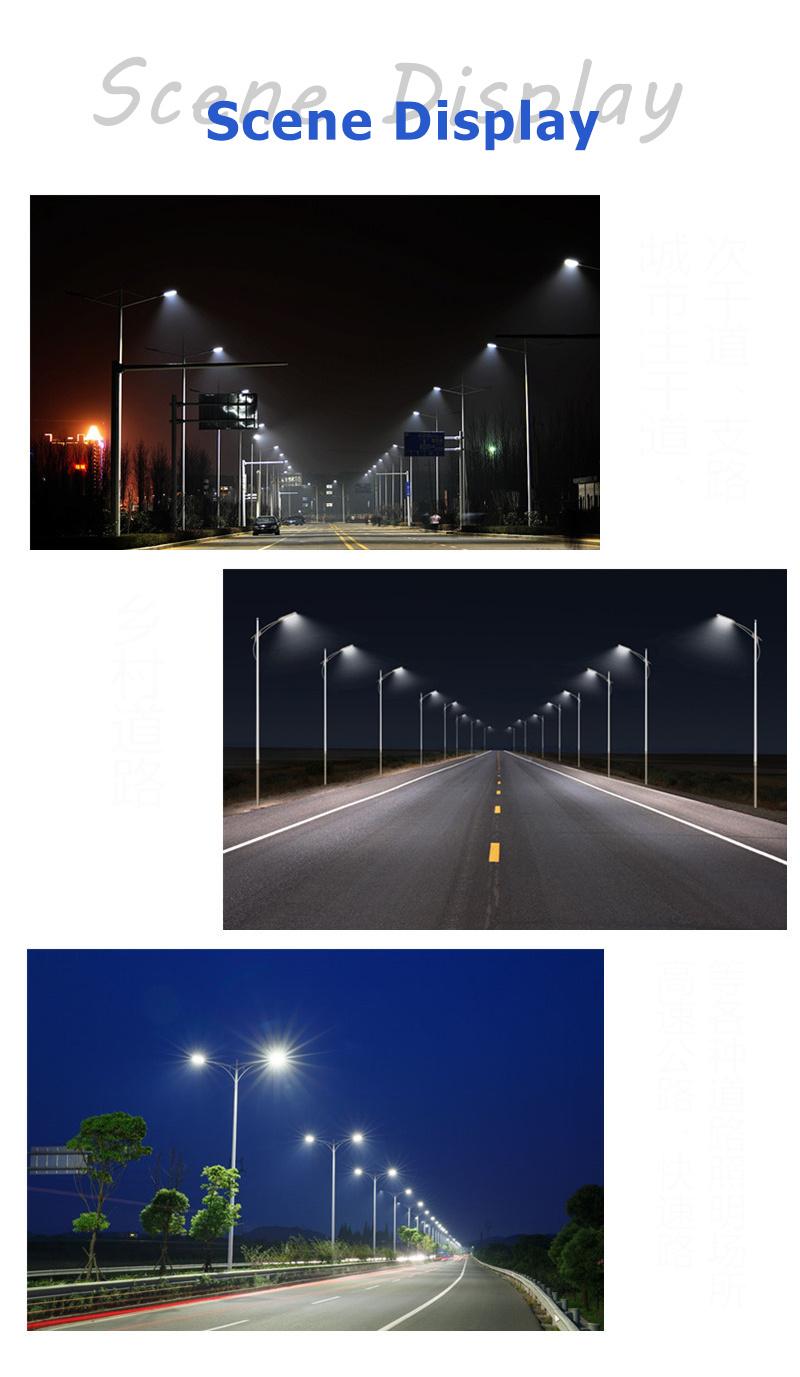

7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..

8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.

9).The metal part which is between pole and street light is designed as original pole size.
