• Model NO.：FJ-CL02
• Certification：CE, EMC, LVD, RoHS, SAA, SASO, CB
• Operating Voltage：85-265V
• LED Chips Brand：Lumi LEDs 3030
• Housing Color：White
• Housing Materials：Aluminum Ad12
• SPD：10kv,15kv,20kv,40kv
• Warranty：5years
• HS：9405409000
• LED Driver：Meanwell,Osram,Inventronic,Sosen
• CIR：>70
• Ik：Ik09
• Lumen：>130lm,W
• Dimmable or Not：Yes
• Working Lifetime：50000 Hours
• Model Number：Fj-Cl02-60W
• Working Temperature：-20 - 50
• Power Factor：0.95
• Beam Angle：120
• Transport Package：Carton + EPE
• Trademark：Fujing
• Origin：China
• HS Code：9405409000

Basic Info.

Model NO. FJ-CL02 Certification CE, EMC, LVD, RoHS, SAA, SASO, CB Operating Voltage 85-265V LED Chips Brand Lumi LEDs 3030 Housing Color White Housing Materials Aluminum Ad12 SPD 10kv/15kv/20kv/40kv Warranty 5years HS 9405409000 LED Driver Meanwell/Osram/Inventronic/Sosen CIR >70 Ik Ik09 Lumen >130lm/W Dimmable or Not Yes Working Lifetime 50000 Hours Model Number Fj-Cl02-60W Working Temperature -20 - 50 Power Factor 0.95 Beam Angle 120 Transport Package Carton + EPE Trademark Fujing Origin China HS Code 9405409000

Product Description



Application

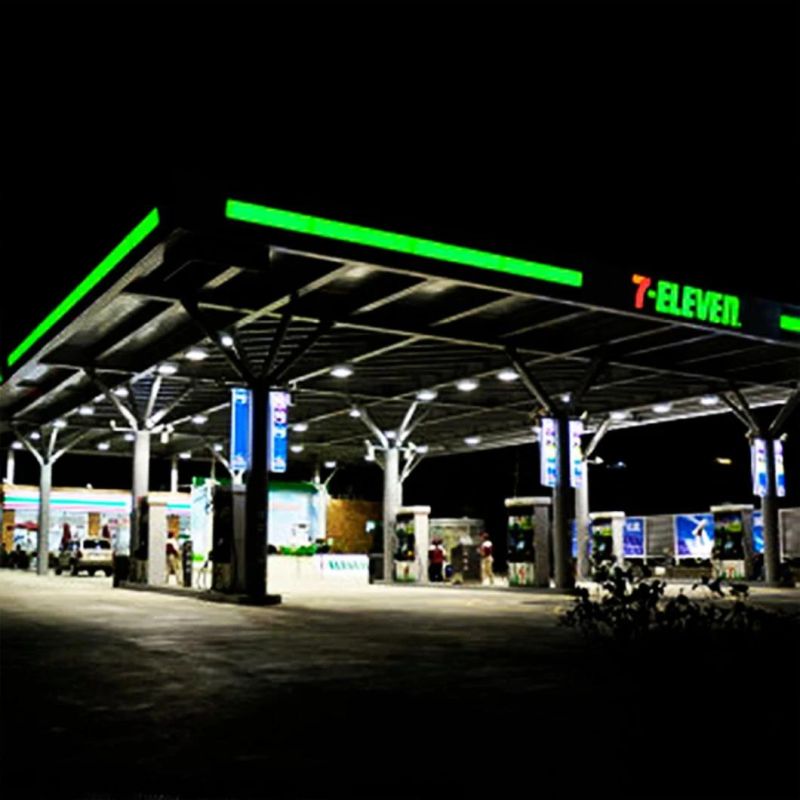

Widely used in construction site lighting, plant lighting, industrial lighting, sports centers, gas stations, parking lots, waiting rooms, railway stations, ports, terminals and other large-scale energy-efficient lighting.

Microwave Motion Sensor

Led canopy light could connect with Microwave Motion Sensor, function requiremnts of detection area, time delay and daylight threshold can be precisely set via DIP switch. MC605V/D is an innovative and active motion detectors with HF system 5.8GHz. Dimming Function 3-step dimming function When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to install and cost-effective. 2-step dimming function Also, the sensors can provide 2-step dimming function, 100 %---> low light (Never turn off). They are particularly suitable for use in Urban roads, Industrial areas, Residential areas, Sidewalks, Parking lot, Schools, Gardens where low light levels are maintained until motion is detected.

Notes

A.Avoid dropping of LED Canopy Light, otherwise Canopy Light Will be damaged;
B.Forbid to install the LED Canopy Light when on before power on, please Make sure that wiring is correct once installation finished;
C.Ensure stable installation and correct connection to avoid short-circuit damage to the Canopy Light and causing fire hazards;
D. Please do not stare at the Canopy Light for a long time when it is working to protect your eyes;   E. Only professional personnel may dismantle and repair.



Item No	Led watt	LED Brand	Lumen	Working voltage	PF	IP	Beam angle	CCT	Size
FJ-CL02-40W	40W	Lumi leds	130 Lm/W	AC180-265V	0.95	IP65	120°	2700-7000K	245*245*84.9mm
FJ-CL02-60W	60W	Lumi leds	130 Lm/W	AC180-265V	0.95	IP65	120°	2700-7000K	245*245*84.9mm
FJ-CL02-80W	80W	Lumi leds	130 Lm/W	AC180-265V	0.95	IP65	120°	2700-7000K	245*245*84.9mm
FJ-CL02-100W	100W	Lumi leds	130 Lm/W	AC180-265V	0.95	IP65	120°	2700-7000K	315*315*95mm
FJ-CL02-120W	120W	Lumi leds	130 Lm/W	AC180-265V	0.95	IP65	120°	2700-7000K	315*315*95mm

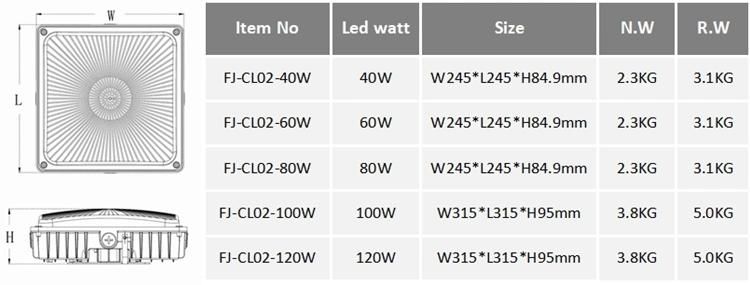

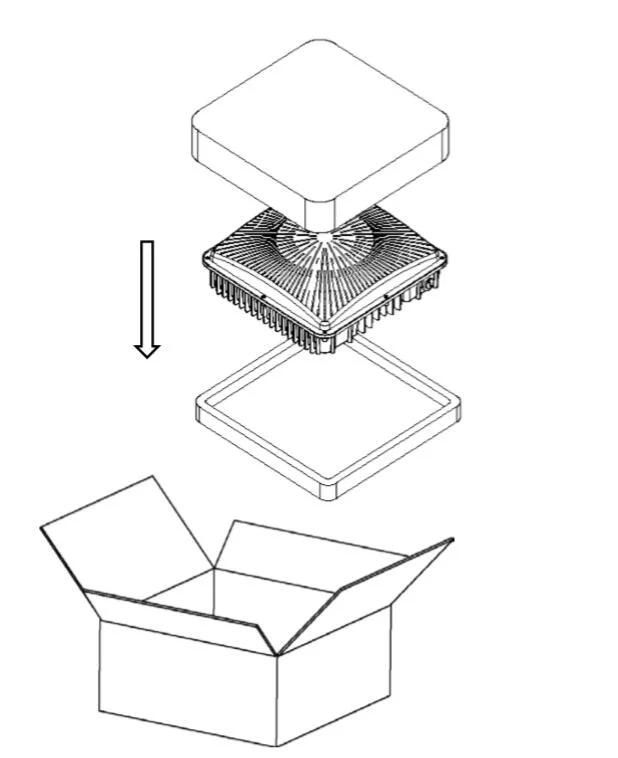

Size & Packing





Before Sale Service



1. We provide a professional offer. Provide detailed product test reports and related specifications.

2. We provide professional-led lighting technology support to meet the requirements of customers about photoelectric color.

3. Within 12 hours of the corresponding customer inquiry, our commissioner will promptly get in touch with the customers.



After-Sale Service



1. Norming Lighting products come with 5-year limited warranty from the date of the purchase by the clients.

2. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides.

3. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items.

4. There is no fault rate for the items we delivered, if there is a lamp that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you.

5. We are equipped with a good after service department and never escape our responsibility.



RFQ




Q OEM/ODM, or customer's logo printed is available?
Yes, OEM/ODM, customer's logo is welcomed

Q Delivery date?
7days for sample, 15-20days for order

Q What's your payment terms?
30% T/T in advance, balance before shipment

Q How to control your quality?
We have a professional QC team. control the quality during the mass production and inspect the complete goods before shipping.

Q If we don't have a shipping forwarder in China, would you do this for us?
We can offer you the best shipping line to ensure you can get the goods timely at the best price.

Q l never come to China before, can you be my guide in China?
We are happy to provide you one-stop service, such as booking tickets. pick up at the airport, booking a hotel, accompany visiting market or factory....…

Q If you can send me a sample?
Yes, we can send you the sample for checking our quality, you need to pay the sample fee, we will refund to you once you place the order from us. this is to show the sincerity of business cooperation, it's also our company's rule.
