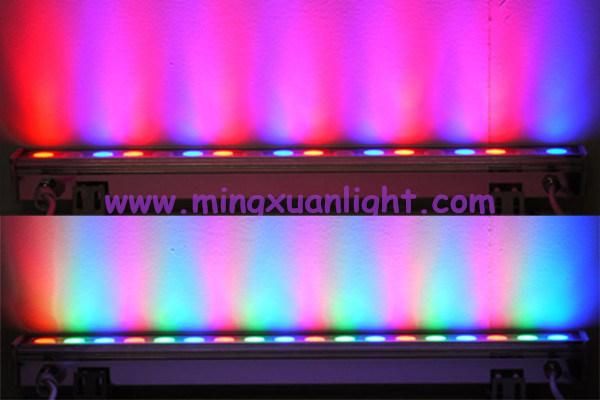

Fashion High Power 18X3w LED Wall Washer Light
Guangzhou MingXuan Stage Light Equipment Co., Ltd.- Emitting Color：Color Mixing
- Power：54W
- IP Rating：IP65
- Diffuser：Polycarbonate
- Beam Angle：60°
- Lifespan：50000 hours
Base Info
- Model NO.：YS-402
- Warranty：1 Year
- Certification：CE, EMC, LVD, RoHS
- Electric Current Type：AC
- Input Voltage：AC100-240V
- Light Source：18X3w RGB LEDs
- Dimmer：0-100% Smooth Electronic Dimming
- Display：LED Digital Display
- Channel：7CH
- Control Mode：DMX512,Master Slave ,Auto
- Weight：4kg
- Delivery Time：Three-Seven Days
- Strobe：1-20time,Sec
- Working Lifetime(Hour)：10000 Hours
- Working Temperature(ºC)：-10-40
- Transport Package：Carton
- Specification：1000*65*90
- Trademark：mingxuan
- Origin：Guangdong, China (Mainland)
- HS Code：9405409000
- Production Capacity：100000
Description
Ordinary features:
- High quality and high power LED light source;
- Projection angle adjustable from 1-180 degree, projection distance: 1-50m ;
- Standard optical beam angle is 50 degree, (8°/25°/40°/50°/60°/80°available)
- Five standard DMX channel, red, green, blue, general brightness and general dimming, support DMX512 console ;
- 256 grade brightness, R,G, B color can realize about 16,770,000 color output ;
- Standard 3-pins male and female DMX signal connector, one input and one output ;
- Slidable bracket, easy to install;
Special attribute:
1. 6063 high purified aluminum shell, CNC finish machining, Anode Oxidation treatment .
a) Nice appearance, durable, anti-corrosion, never-discolored .
2. Physical structure waterproof and dustproof + epoxy potting glue treatment;
a) Ensured the wall washer can be operated normally under different kinds of harsh outdoor weather;
b) Waterproof rank: IP65.
3. Equilateral triangular array of light (R1, G1, B1);
a) Mixing color better, more even and more brilliant .
4. Inside isolated constant current driver
a) Has the protection functions of open-circuit, short-circuit and overload
b) Ensured the high power LED operates safely
5. With button and numeral display window on each wall washer
a) You can change programs via these buttons , include dreamlike gradual changing, jumping, flashing, dim brightness of single color, etc.
6. Master-slave automatic connection function
a) After connect all the led wall washers ready, control any of the wall washer among them, all the other led wall washers will change color together according to this wall washer, then, the one which is controlled by is the " master " wall washer .
7.Self-programming control
a) You can coding the wall washer by DMX512 console or computer control soft to realize sole-control or group-control, then to get what kind of color effect you want .
