• Model NO.：FJ-FL1000W-G04
• IP Rating：IP65
• Certification：CE, EMC, LVD, RoHS, SAA, SASO
• Input Voltage：220V
• LED Chips Brand：Osram

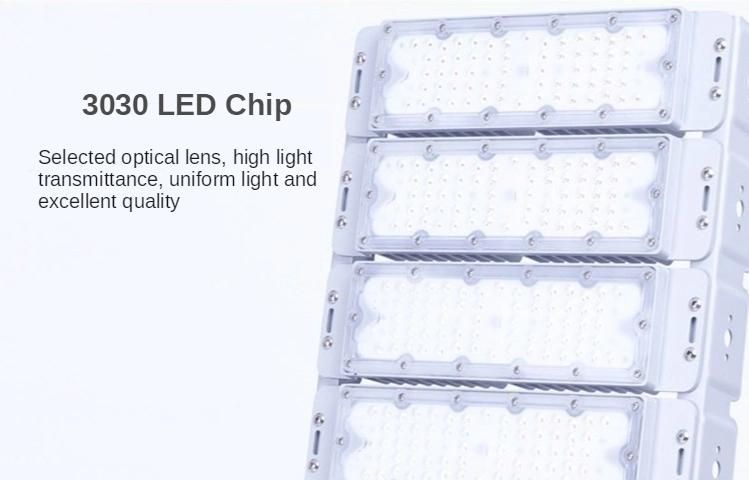

• LED Chip：3030
• CCT：2700~6500K
• CRI：>70
• Lighting Efficacy：120lm,W
• Angle：60deg
• PF：>0.95
• LED Driver：Meanwell,Phi Lips,Osram
• Housing Materials：Dia-Casting Aluminum
• Housing Color：Lighting Grey
• Average Life：50000hours
• IP：IP65
• Ik：Ik10
• Warranty：5years
• HS：9405409
• LED Junction Temperature：<90
• Transport Package：Carton+EPE
• Specification：765*515*180mm
• Trademark：FUJING
• Origin：China
• HS Code：9405409000
• Production Capacity：100000,Year

Basic Info.

Model NO. FJ-FL1000W-G04 IP Rating IP65 Certification CE, EMC, LVD, RoHS, SAA, SASO Input Voltage 220V LED Chips Brand Osram LED Chip 3030 CCT 2700~6500K CRI >70 Lighting Efficacy 120lm/W Angle 60deg PF >0.95 LED Driver Meanwell/Phi Lips/Osram Housing Materials Dia-Casting Aluminum Housing Color Lighting Grey Average Life 50000hours IP IP65 Ik Ik10 Warranty 5years HS 9405409 LED Junction Temperature <90 Transport Package Carton+EPE Specification 765*515*180mm Trademark FUJING Origin China HS Code 9405409000 Production Capacity 100000/Year

Product Description

Features:

1. High-efficiency Meanwell Driver
2.Imported original Filips LED Chip.

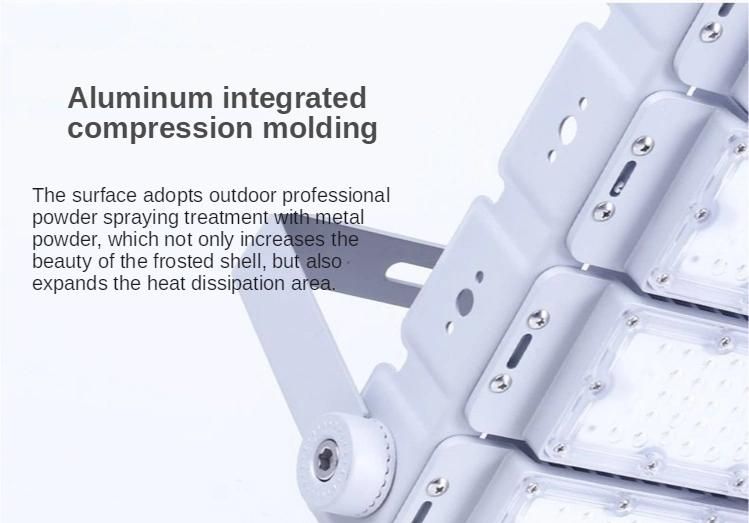

3.Aluminum lamp housing with cooling fins, excellent structure for heat dissipation.
4.The surface of the lamp is electrophoresis treated, oxidation resistance, and anti-corrosion.
5.Dust-proof,moisture-proof and waterproof,IP66 rated.
6.Excellent optics design, higher luminous efficiency.
7.Compare to traditional lamps can save energy 60%-70%.
8.5 years warranty.

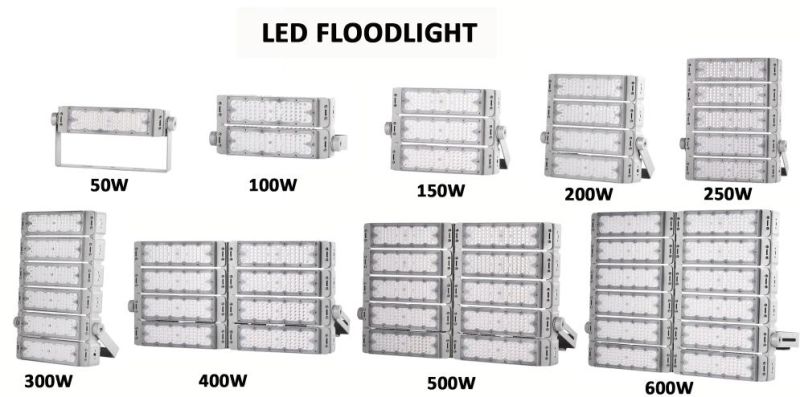

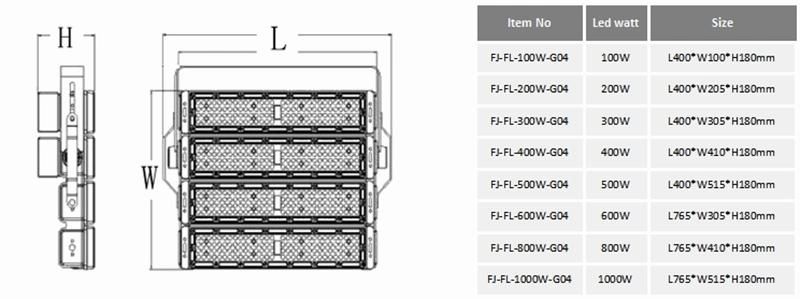

Specifications:


Item No	Led watt	LED Brand	Lumen	Working voltage	PF	IP	Beam angle	CCT	Size
FJ-FL-100W-G04	100W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*100*180mm
FJ-FL-200W-G04	200W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*205*180mm
FJ-FL-300W-G04	300W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*305*180mm
FJ-FL-400W-G04	400W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*410*180mm
FJ-FL-500W-G04	500W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*515*180mm
FJ-FL-600W-G04	600W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	765*305*180mm
FJ-FL-800W-G04	800W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	765*410*180mm
FJ-FL-1000W-G04	1000W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	765*515*180mm

Details:




Size:


Our Service:

As A Professional LED street Light Manufacturer We Promise

• Quick response:For all your inquires, we will reply to you in detail within 24 hours.
• Professional Lighting Proposal: a professional lighting proposal by our optical engineer is firmly good for your sale. Full range IES file, the testing report provide,Free Dialux simulation service
• Strong R&D Dept: Provide ODM/OEM service, Laser Engrave.
• DIALUX/EVO/AGI32/CALCULUX SIMULATION SERVICE



Quality Control

• Stability TEST: make sure 100% of the lamps aging test at least 48 hours.
• Lighting TEST: make sure 100% of the lamps could be lighted before packing.
• Drop TEST: make sure every single light has been well protected by the box.

Trade Terms

• Flexible Payment term:L/C, D/A, D/P, T/T, Western Union, PayPal.
• Lead time: normally in 10~15 days after deposit received
• Sample policy: Samples are always available for each model

FAQ:



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LED light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
