• Model NO.：LCD-FK-103-5K-LN10x10
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, SAA TUV
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：Osram
• Transport Package：Carton Box
• Specification：220x180x88 mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Product100W FloodlightCodeFA/FK/CG-S-103/105Color Consistency (SDCM)<5Power Consumption (W)100WBrightness (lm)13000-14500lmHalogen Equivalent(W)800-1500WLED Quantity59-120Light ColorDaylight White 5000K-7500KColor Temperature (K)2700K-7500KDimmableNon-dimmable or dimmableCRI> 75Beam Angle (Degree)2°,3°,8°,10x45°,15°, 30°, 60°, 90°, 120°Input Voltage (v)100-305V AC/ 12V 24V 32VFrequency (hz)50/60HzPower Factor> 0.95Length (in)/Width (in)/Height (in)/Net Weight (lb)data sheetMaterialTemper Glass, Aluminum alloyWaterproofIP66, IP67 or IP68 Protection RatingIP08Package QuantityPack of 1 UnitWarranty5-7 YearsWeightdata sheetMotion Sensoron requests

Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.

Other options available
Optional precabling
Other RAL colours available on request

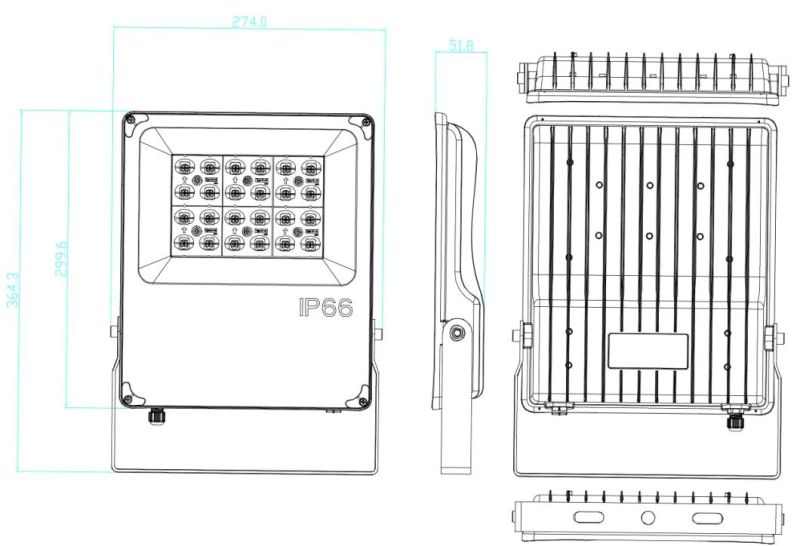

Product DIMENSIONS
AxBxC (mm ):

Item NameAxBxC (MM)FA-085/105/153 IP67 flood light389.2x296.7x57FA-205 IP67 flood light436.6x345.7x57FA-255 IP67 flood light436.6x345.7x57FA-305/353 IP67 flood light582x385x60

Weight (kg ):

Item NameWeight (KG)FA-085/105/153 IP67 flood light3.4FA-205 IP67 flood light4.8FA-255 IP67 flood light7.2FA-305/353 IP67 flood light7.5

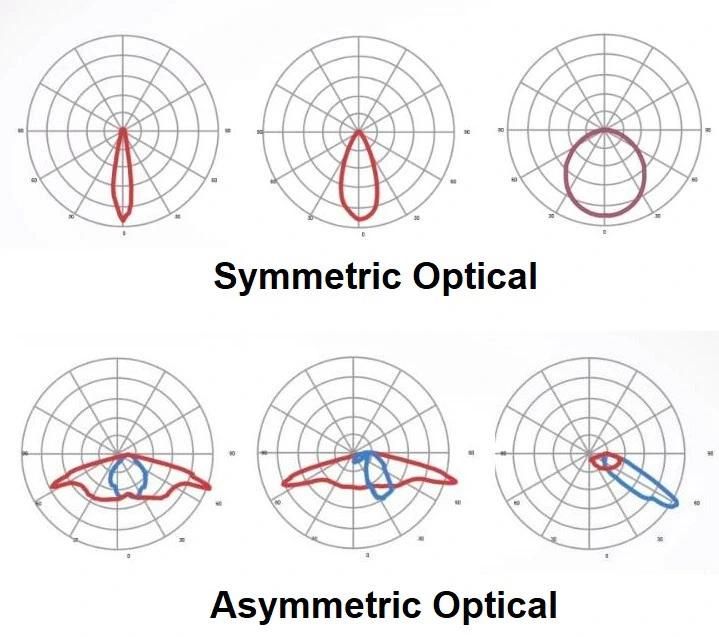

Available photometric distributions:
• Asymmetric Forward
• Asymmetric Narrow
• Asymmetric Wide
• Asymmetric Extra Wide Flood
• Asymmetric Forward Throw Narrow
• Symmetrical Wide Flood
• Symmetrical Narrow Spot
• Symmetrical Wide
• Symmetrial Forward
Rated initial chromaticity co-ordinate values:
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
6500K - CIE(x= 0.34, y= 0.35) 5SDCM
