LED Outdoor Lawn Exterior Luminaires Garden Path Parking Wall Fixtures Source Pathways Lighting Lamp

Zhongshan Camilamp Lighting Co., Limited
  • Style：Decoration
  • Color Temperature：3000K,4000K,5000K
  • Lamp Body Material：Aluminum
  • Power：≤5W
  • Lifespan：50000H
  • IP Rating：IP67

Base Info

  • Model NO.：EC30108
  • Certification：CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, PSE, REACH, RoHS, SAA, UL, VDE
  • Voltage：Euro 90-264V,Us 277V
  • With Light Source：With Light Source
  • LED Chips Brand：Osram
  • Transport Package：Variable to Models, See Spec
  • Specification：Variable to models, see spec
  • Trademark：Camilamp,Customized
  • Origin：Guangdong, China
  • Production Capacity：50000

Description

 Product Specification  Watch VideosCooperated Provision  QuotationInstallation Instruction&Tip  ComplaintAgent certification Product NameOutdoor BREAK LED LAWN light Product CodeEC30108 MOQ (PCS)500 Payment TermPayment terms-TT, 30% deposit, 70% balance must be paid before delivery. Irrevocable  L/C at sight. West union, paypal Delivery Time15-20 Days after deposit
★  Product Overview and application
LED Outdoor Lawn Exterior Luminaires Garden Path Parking Wall Fixtures Source Pathways Lighting LampLED Outdoor Lawn Exterior Luminaires Garden Path Parking Wall Fixtures Source Pathways Lighting LampLED Outdoor Lawn Exterior Luminaires Garden Path Parking Wall Fixtures Source Pathways Lighting LampAreas of application

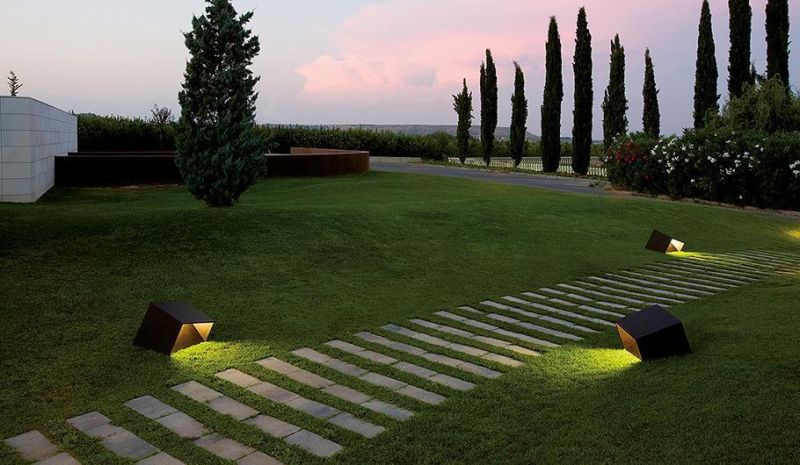

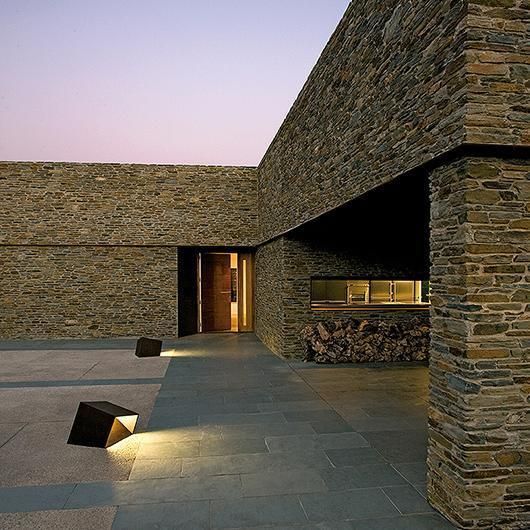

_ Outdoor Fixtures

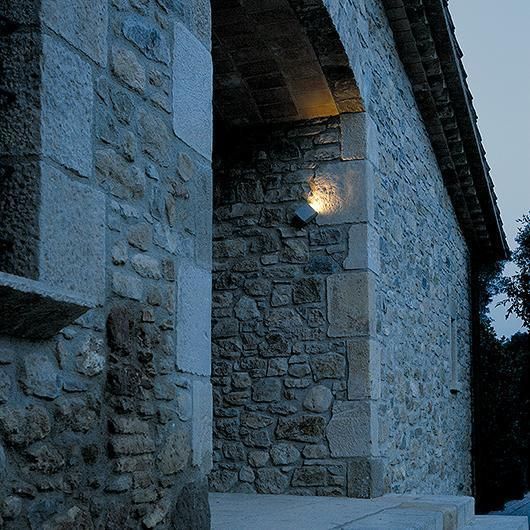

_ Pathways/ wall environments


Product family benefits

_ Bright and efficient LED light source that provides superior light quality with floor light CRI >70
_ Low cost operation: - Saves 80% energy compared to other Eliminates the cost of over 6MULTI replacements over the life of the fixture (L70 = 30000 hrs)
_ Superior Stainless steel / Aluminium with perfect Finishing
_ Environmental friendly: No hazardous materials
_ SDCM ≤ 5
_ Flickering ≤ 5%

Product family Features

_ Long lifetime: up to 30,000 h
_ Superior Aluminium
_ Light Efficiency: up to 30 lm/W
_ Combination of easy and flexible use

Technical data
General Product information
Product Number
 		EC30108
Product NameOutdoor BREAK LED LAWN light
Brand NameCAMILAMP Lighting
Dim MethodNorma
THD at Ta≤ 20 (EN61000-3-2)
General DescriptionLED, IP67
Watts optional (Each Ring) : 3W/each head
L-N 6KV, L/N-PE 10KV (IEC60598)
IEC 60598Fulfill
Average Rated Life30000 h at normal T
Operating Temperature Range
(90% Lumen output - ambient temperature)		-20°C to 60°C
Operating Temperature Range
(normal and any variations required)		-40°C to 80°C
Quality Guarantee3 Years/5years

Electrical data
Nominal Wattage3W/each head (Max)
Nominal Voltage (Remark US or EU)198-264VAC (EU Standard)/100-277 (US Standard)
Line frequency50/60HZ
IP and IK ingressIP67/IK08
AC input current0.11A @230Vac
PF factor ≥0.9
IEC 61347Fulfill
Driver BrandOSRAM/3AAA/Eaglerise

Light Technical data
Luminous Flux90lumens/each head lamp
Light General3000K, 70 CRI, 30Lm/W
Light BrandOSRAM/BridgeLux/CREE/Sanan
CCT3000K
SCDM≤ 5
UGR≤ 22
Light Flicking ≤ 5%

Key Materials
Housing Material and Installation BoxAluminium
Body Color and Installation Box colorMatt white/Matt blackMatt Silver/off-white
Optical Cover Optical Glass
Cover ColorTransparent 90% rate

Additional product data
Packaging Information
Product number PackagingQuantityOutside dimensions l x w x hGross weight
EC30108 Shipping box (Case)100 See spec
LED Outdoor Lawn Exterior Luminaires Garden Path Parking Wall Fixtures Source Pathways Lighting Lamp
