600W Football Field High Mast Lighting
HANGZHOU ZGSM TECHNOLOGY CO., LTD.- Color Temperature：Cool White
- Lamp Body Material：Aluminum
- Power：280W,560W,840W
- Usage：Stadium
- IP Rating：IP66
- Certification：CE, RoHS
Base Info
- Model NO.：ZGSM-QCD560M
- Input Voltage：AC 100-240V ,277V, 50,60Hz
- LED Chips Brand：Lumileds
- Driver Brand：Inventronics Driver
- Protection：Class I
- SPD：10kv (20kv Optional)
- Optional Function：Olc, Ntc, Stepdim, 0(1)-10V, Dali
- Optic：15 30 45 60
- CRI：Ra70 (80 Optional)
- Trademark：ZGSM or OEM
- Origin：China
Description
Basic Info.
Model NO. ZGSM-QCD560M Input Voltage AC 100-240V /277V, 50/60Hz LED Chips Brand Lumileds Driver Brand Inventronics Driver Protection Class I SPD 10kv (20kv Optional) Optional Function Olc, Ntc, Stepdim, 0(1)-10V, Dali Optic 15 30 45 60 CRI Ra70 (80 Optional) Trademark ZGSM or OEM Origin ChinaProduct Description
| Series No | Series M |
| Power | 280W,560W, 840W |
| Efficacy | 150lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Default) / 20KV (available on request) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | 15°, 30°, 45°, 60° |

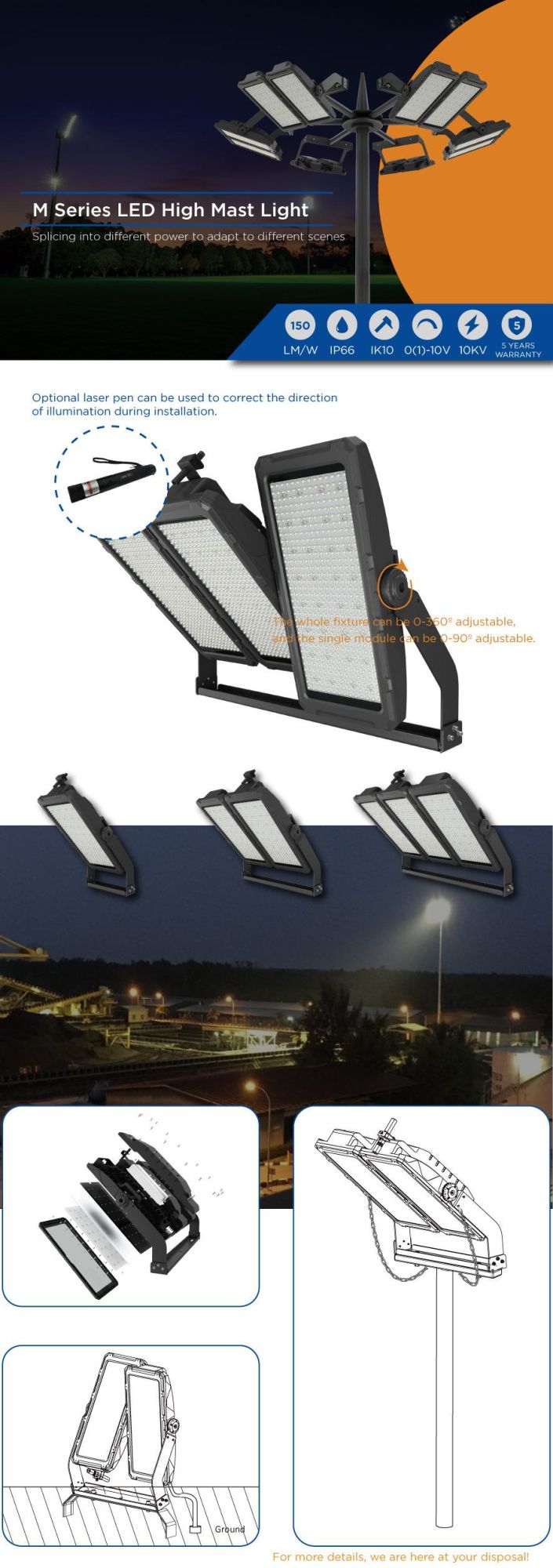

| Installation | Whole fixture 0-360º adjustable; Single module 0-90º adjustable |
| Warranty | 5 Years |
| Certification | CE, ROHS, LM80, TM-21 |
| Control | DALI Dimmable, Photocell, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control |
