• Model NO.：OED-YXY-S400W
• Warranty：5 Years
• Certification：CE, EMC, ETL, LVD, RoHS, SAA
• Voltage：220V
• With Light Source：With Light Source
• Item Name：IP66 400W LED SMD Module Flood Tunnel Light
• Color Temperature(CCT)：3000-6500K
• LED Qty：672 PCS
• Lamp Luminous Efficiency(Lm/W)：130
• Lumen：52,000lm
• Lifetime：50,000 Hours
• Transport Package：Carton
• Specification：L571 x W107 x H388mm
• Trademark：OED
• Origin：China
• HS Code：9405409000
• Production Capacity：20, 000PCS,Month

Basic Info.

Model NO. OED-YXY-S400W Warranty 5 Years Certification CE, EMC, ETL, LVD, RoHS, SAA Voltage 220V With Light Source With Light Source Item Name IP66 400W LED SMD Module Flood Tunnel Light Color Temperature(CCT) 3000-6500K LED Qty 672 PCS Lamp Luminous Efficiency(Lm/W) 130 Lumen 52,000lm Lifetime 50,000 Hours Transport Package Carton Specification L571 x W107 x H388mm Trademark OED Origin China HS Code 9405409000 Production Capacity 20, 000PCS/Month

Product Description

IP66 high power 400W outdoor waterproof dustproof LED flood tunnel light for stadium lighting

Technical Data:

Item name	IP66 400W SMD module LED Tunnel light
Power	400W
Light Source	Filips chip 3030 SMD LED
LED Qty	672pcs
Viewing angle	15°  30°  45°  60°  90°
Color Temperature	3000-3200k,4500k,6000-6500k
CRI	Ra.80
Input Voltage	AC100-277V / 50-60HZ
Materials	6063 Aluminum
Operating Temp.	-25 - 50ºC
Applications	Outdoor lighting,Tunnel lighting,Stadium,Square,factory etc.
Item N.W.	11KG
Item G.W.	12.5KG
Qty / CTN	1PC
Lamp dimensions	L571 x W107 x H388mm
Carton size / G.W.	62 x 16 x 42cm
Certificates	TUV,CE,ROHS,ETL,EMC,LVD,SAA,CB,ISO9001
Lifetime	50,000 hours
Warranty	5 years

Product manual:

1.Using high-quality LED as the light source, energy saving and environmental protection, compared with traditional light source, energy saving is more than 60%.

2.Long life, can be used for more than 5 years under normal circumstances.

3.The light is even and soft, and the brightness is high. The color rendering is good, the color of the real object is more realistic, and various light colors are available to meet the needs of different environments.

4.Quick start, no flicker, no noise, no radio frequency interference.

5.Using high efficiency constant current driver, wide voltage input, can work in places with unstable voltage.

6.Lightning protection, the lamp body is made of aluminum alloy material, high strength, corrosion resistance and weather resistance, good heat dissipation.

7.Green and environmentally friendly, using lead-free and mercury-free process

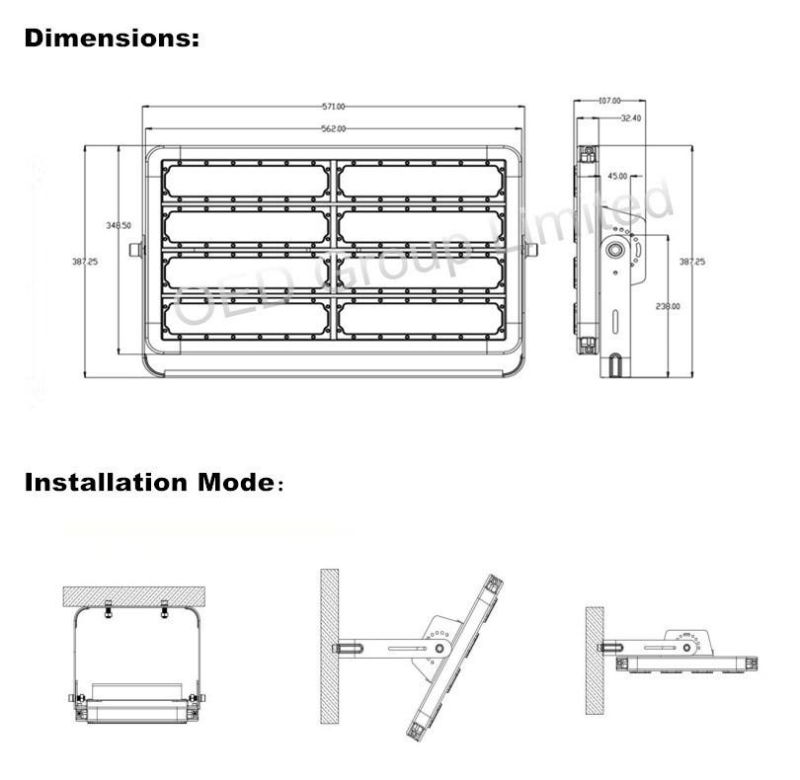

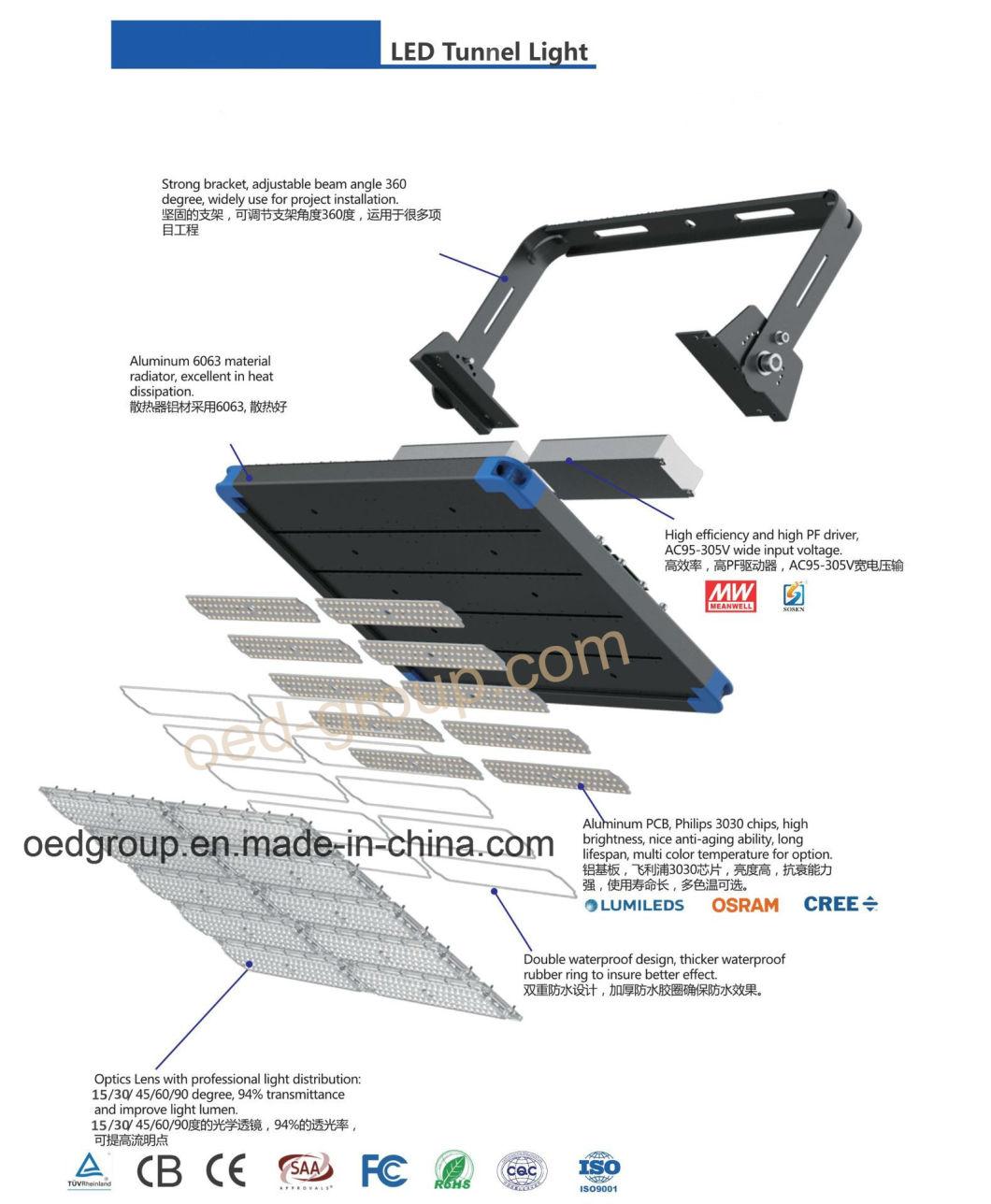

IP66 400W LED Tunnel Light Structure:



Features:
-6063 Aluminum material radiator,ADC12 aluminum material frame,work well at heat dissipation.
-Filips 3030 chips ,with excellent light effect and long life time.
-High PF drivers,PF>0.95,wide input voltage AC100-277V.
-IP66 protection level,dust and waterproof,to meet all kinds of outdoors harsh environment requirements.

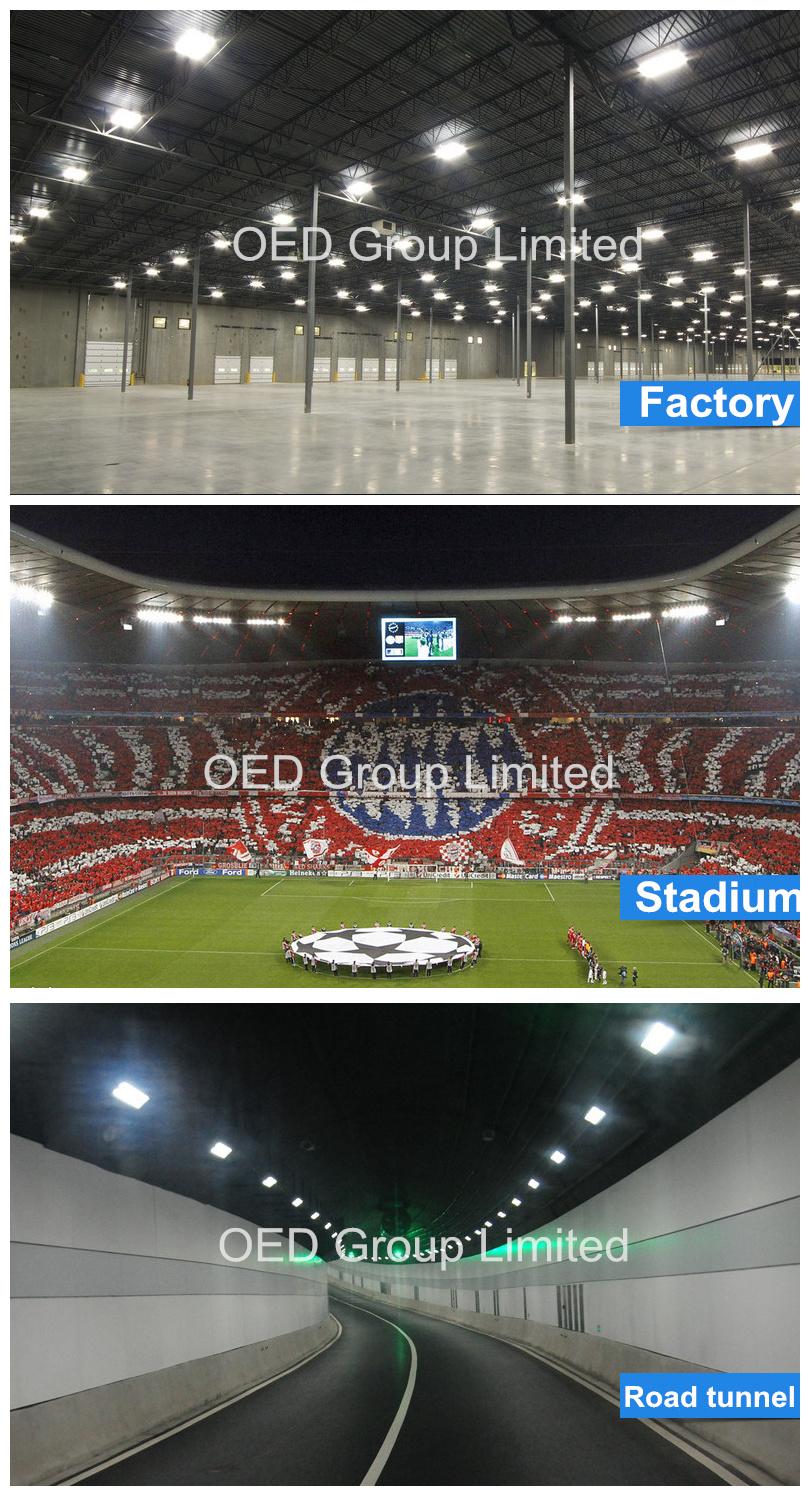

Application:
It can be widely used in Tunnels,Square,Plaza,Garden,Lawn,Playground,Tennis Stadium,Golf Course,Bus Station,Airport,Sculpture,Architecture,Arts Work,Street,Factory offices,Show Room,Work Shop,Parking Lot etc.


Installation instructions:

1. Non-specialist electricians please do not repair or modify this product without authorization;

2. Please turn off the power before installation;

3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;

4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;

5. Pay attention to shock protection during installation and transportation;

6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;

7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

8. If the lamp body or wire is damaged, please stop using it immediately.

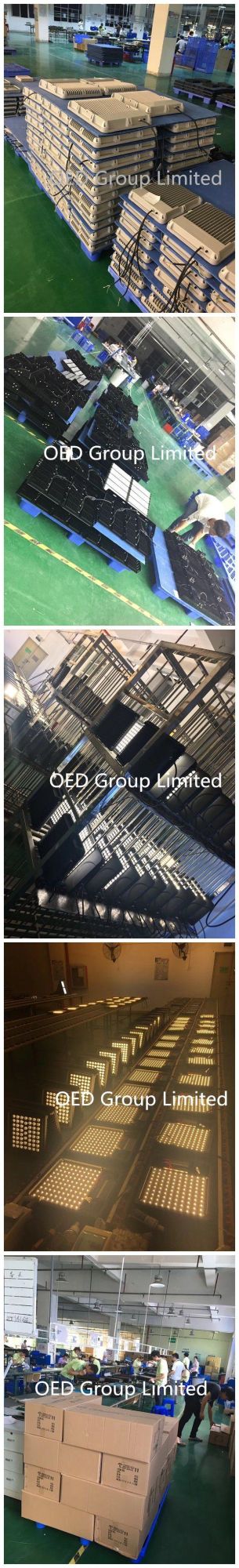

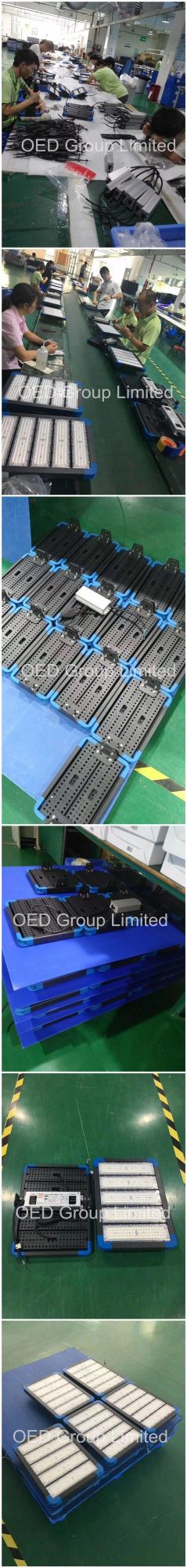

Our workshop:
We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED Tunnel light, and 10-15 working days for 3000pcs LED Tunnel Light at common requirements.


Packing & Aging test:
Waterproof test see our video above.
Each Lamp must pass 24 hours aging test and high voltage (2KV, 4KV, 6KV) surge test before we make packing and make delivery.



OED Lighting show:


Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
3000pcs in 15 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.

FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs LED tunnel lamps.

4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this led tunnel lamps, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
