• Model NO.：ZGSM-LD240H6
• Input Voltage：100-240V,277V,347V,480V AC
• With Light Source：With Light Source
• LED Chips Brand：Lumileds
• Light Source：LED Light
• LED Luminous Source：Lumileds 3030
• LED Driver：Meanwell,Inventronics
• Working Lifetime(Hour)：100000 Hours
• Transport Package：Strengthening Cartons
• Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
• Trademark：ZGSM
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

SpecificationsModelZGSM-LD240H6LED BrandLUXEON® 3030 2D/5050Driver BrandMeanwell HLG/ELG series/ Inventronics DriverNorminal Wattage240WLED Module Quantity4 modulesInput Voltage100-240/277VACPower Efficiency>90%Power Factor>0.95Lamp Rated Luminous Efficiency>125lm/w-155lm/wLamp Rated Lumen output30000-37200lm (Lumen tolerance +/- 5%)Color Rendering IndexRa>70Color Temperature3000K,4000K,5000K,5700KPhotometric TypeType I Medium;Type II Medium;Type III Medium,TypeV,ShortOptimal Operating Temperature25°Storage Temperatures-40°C~50°CWorking EnvironmentBetween-40°C~+50°C, 10%~90%RHTotal Harmonic Distortion< 10%Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)Wind IndexForce 12Body and Shell MaterialsAnodized AluminumIP RatingIP66 with test reportIK RatingIK10 with test reportCertificationCE,ROHS,ENEC,GS,CB,UL,cUL,DLC,LM-79,LM-80Optional Function1-10V DC or PWM Signal or Resistance DimmingTimer/Photocell ControlWarranty7 yearsPacking DetailsFixture Dimension650x316 x136 mmFixture Weight8.2 kg Packing Dimension705 x370 x200 mmPacking Weight9.6 kg

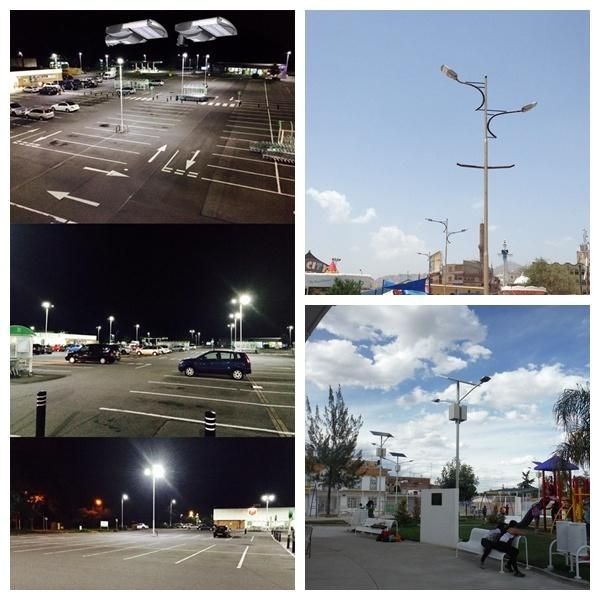

3. Application




4. Factory show








5. Exhibition show



6. Certificate Show


7. Contact us
