• Model NO.：ZGSM-LD160H4
• Certification：CB, CE, EMC, FCC, GS, LVD, RoHS, SAA, SASO
• Input Voltage：100-240V,277V,347V,480V AC
• With Light Source：With Light Source
• LED Chips Brand：Lumileds
• Light Source：LED Light
• LED Luminous Source：Lumileds 3030,5050
• LED Driver：Meanwell,Inventronics
• Working Lifetime(Hour)：100000 Hours
• Transport Package：Strengthening Cartons
• Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
• Trademark：ZGSM
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

SpecificationsModelZGSM-LD160H4LED BrandLUXEON® 3030 2D/5050Driver BrandMeanwell HLG/ELG series/ Inventronics DriverNorminal Wattage160WLED Module Quantity4 modulesInput Voltage100-240/277VACPower Efficiency>90%Power Factor>0.95Lamp Rated Luminous Efficiency>140lm/w-165lm/wLamp Rated Lumen output22400-26400lm (Lumen tolerance +/- 5%)Color Rendering IndexRa>70Color Temperature3000K,4000K,5000K,5700KPhotometric TypeType I Medium;Type II Medium;Type III Medium,TypeV,ShortOptimal Operating Temperature25°Storage Temperatures-40°C~50°CWorking EnvironmentBetween-40°C~+50°C, 10%~90%RHTotal Harmonic Distortion< 10%Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)Wind IndexForce 12Body and Shell MaterialsAnodized AluminumIP RatingIP66 with test reportIK RatingIK10 with test reportCertificationCE,ROHS,ENEC,GS,CB,UL,cUL,DLC,LM-79,LM-80Optional Function1-10V DC or PWM Signal or Resistance DimmingTimer/Photocell ControlWarranty7 yearsPacking DetailsFixture Dimension650x316 x136 mmFixture Weight8.2 kg Packing Dimension705 x370 x200 mmPacking Weight9.6 kg

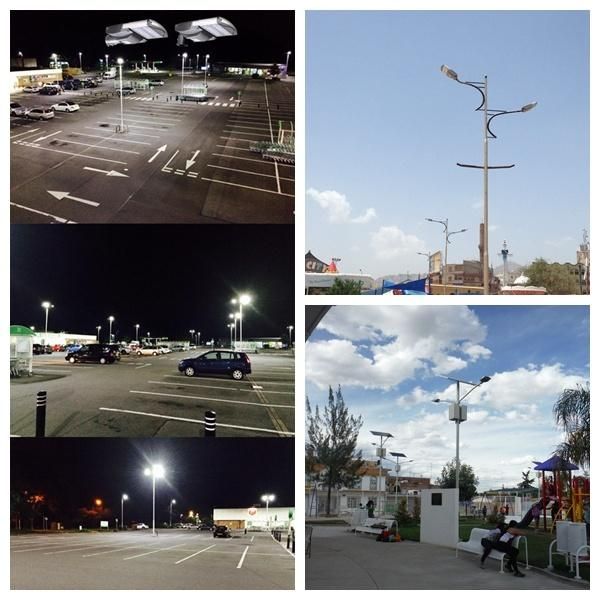

3. Application




4. Factory show








5. Exhibition show



6. Certificate Show


7. Contact us

Karen Chen
