• Model NO.：LCD-FA-013,353-LNXXXX
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, TUV, Iecex, Atex
• Operating Voltage：220-240V
• Input Voltage：220V
• LED Chips Brand：Lumileds, Osram, CREE
• Transport Package：Carton Box
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Basic Info.

Model NO. LCD-FA-013/353-LNXXXX Certification CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, TUV, Iecex, Atex Operating Voltage 220-240V Input Voltage 220V LED Chips Brand Lumileds, Osram, CREE Transport Package Carton Box Trademark LCD brand Origin Shenzhen City, China HS Code 9405409000 Production Capacity 50000PCS / Year

Product Description

FA : 50W~600W Lensed LED Floodlight

Key Features:

• High luminous efficacy using LUMILEDs SMD3030 or SMD5050 LED chips.
• longest-lasting, most widely certified hazardous location Area Light in the industry.
• Tolerates the harshest conditions and virtually eliminates maintenance to improve site efficiency and safety.
• Offers superior safety and durability for Marine, chemical, mining, offshore, particulate and other volatile environments.
• Super slim rugged design (maximum depth 60mm).
• Custom designed case for effective heat dissipation
• In house LED driver technology
• Impact resistant tempered glass
• Bracket designed with +/-160° angle with 5° interval locking system
• Designed to eliminate water ingress
• Optional Dusk to Dawn available
• IP67 rating
• 7 years warranty


FA SPECIFICATION

Model Number	LCD-FA-083/103-LNXXX	LCD-FA-153-LNXXX	LCD-FA-203-LNXXX	LCD-FA-253-LNXXX
Fitting Colour	RAL 9010 white	RAL 9010 white	RAL 9010 white	RAL 9010 white
Input Voltage	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz
Output Load	80W	100W	150W	200W
Power Factor	>0.95	>0.95	>0.95	>0.95
Lumens	12000-15000lm	22500lm	30000lm	37500lm
Beam Angle	16 different optic beams	16 different optic beams	16 different optic beams	16 different optic beams
Colour (K)	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K
CRI	>75	>75	>75	>75
Efficacy (lm/W)	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w
Housing	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case
Working Temperature	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C
Protection	IP67	IP67	IP67	IP67
Weight	4KG	4.3KG	5.4KG	6.5KG
Dimensions	315 x 245 x 57mm	315 x 245 x 57mm	4 x 290 x 57mm	420 x 329 x 57mm

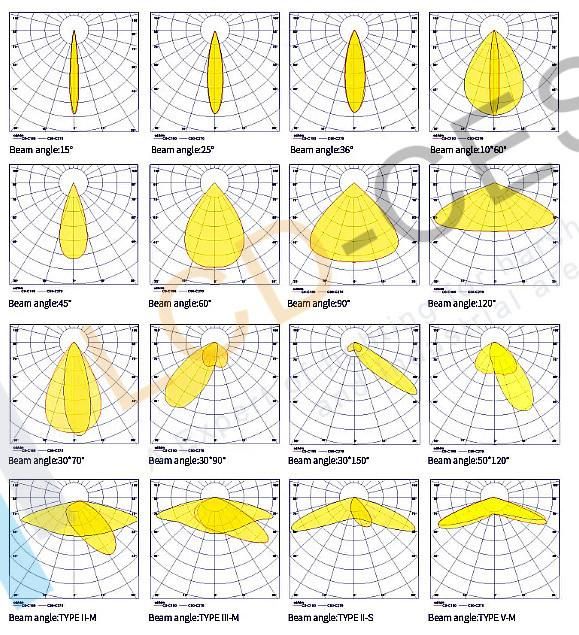

LIght distribution curve

Model Number	LCD-FA-303-LNXXX	LCD-FA-353-LNXXX	LCD-FA-403-LNXXX	LCD-FA-603-LNXXX
Fitting Colour	RAL 9010 white	RAL 9010 white	RAL 9010 white	RAL 9010 white
Input Voltage	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz
Output Load	250W	300W	400W	600W
Power Factor	>0.95	>0.95	>0.95	>0.95
Lumens	45000lm	52500lm	60000lm	90000lm
Beam Angle	16 different optic beams	16 different optic beams	16 different optic beams	16 different optic beams
Colour (K)	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K
CRI	>75	>75	>75	>75
Efficacy (lm/W)	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w
Housing	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case
Working Temperature	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C
Protection	IP67	IP67	IP67	IP67
Weight	10.4Kg	10.8KG	13KG	20.8KG
Dimensions	530 x 385 x 60mm	530 x 385 x 60mm	420 x 658 x 57mm	530 x 772 x 60mm
