• Model NO.：LCD-FA-105-LNXXXX
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, TUV, Iecex, Atex
• Operating Voltage：100-240V
• Input Voltage：24V
• LED Chips Brand：Lumileds, Osram, CREE
• Transport Package：Carton Box
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Basic Info.

Model NO. LCD-FA-105-LNXXXX Certification CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, TUV, Iecex, Atex Operating Voltage 100-240V Input Voltage 24V LED Chips Brand Lumileds, Osram, CREE Transport Package Carton Box Trademark LCD brand Origin Shenzhen City, China HS Code 9405409000 Production Capacity 50000PCS / Year

Product Description

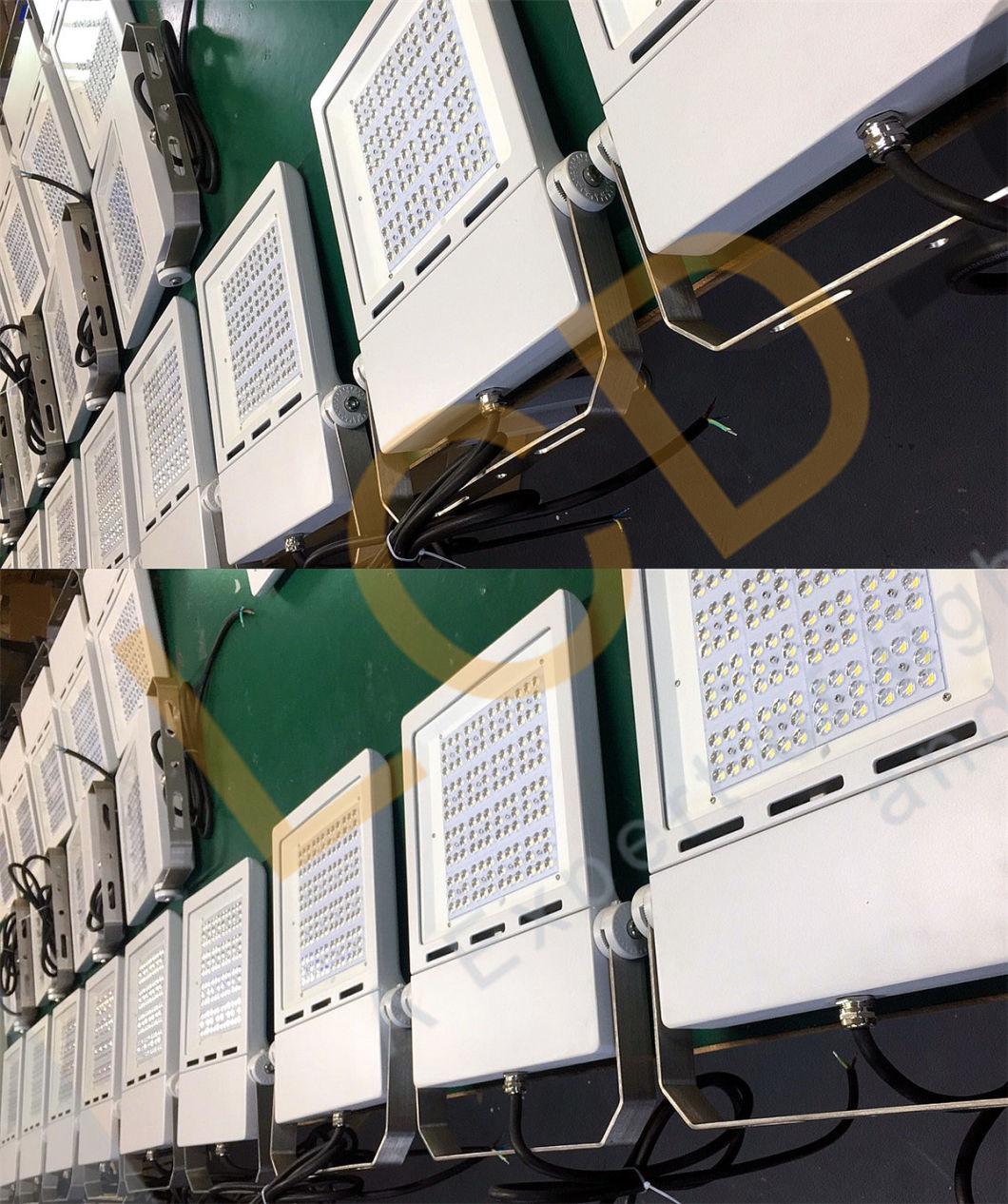

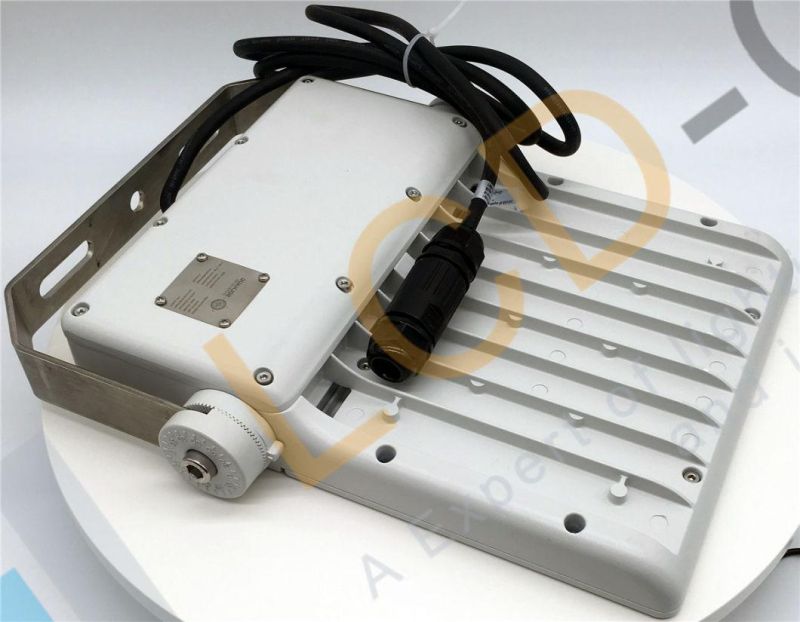

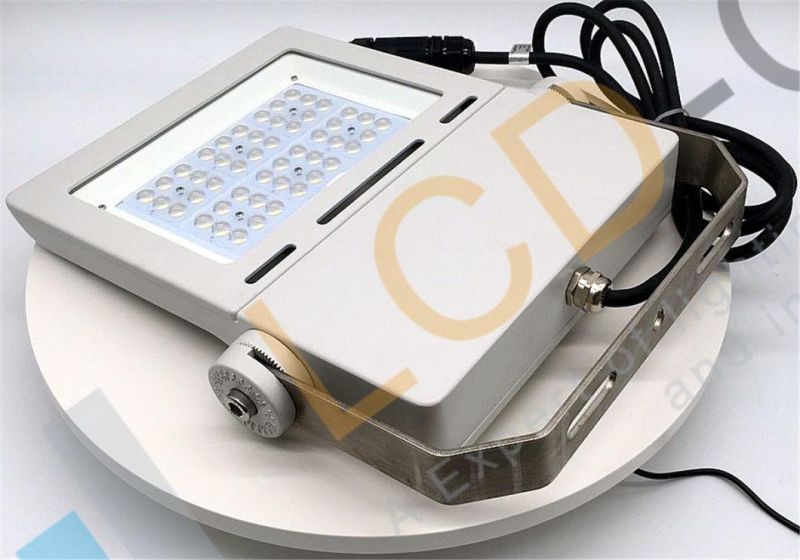

Marine deck LED flood lighting for wet and marine locations

Key Features
• High-performance precision optics system

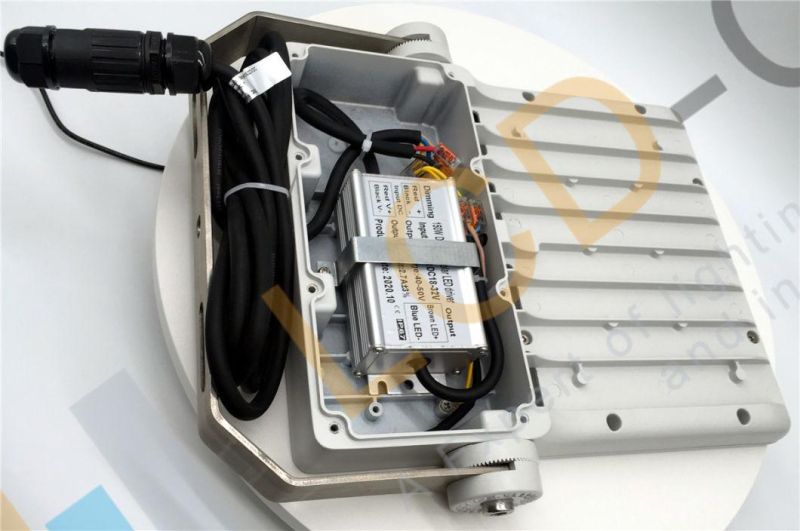

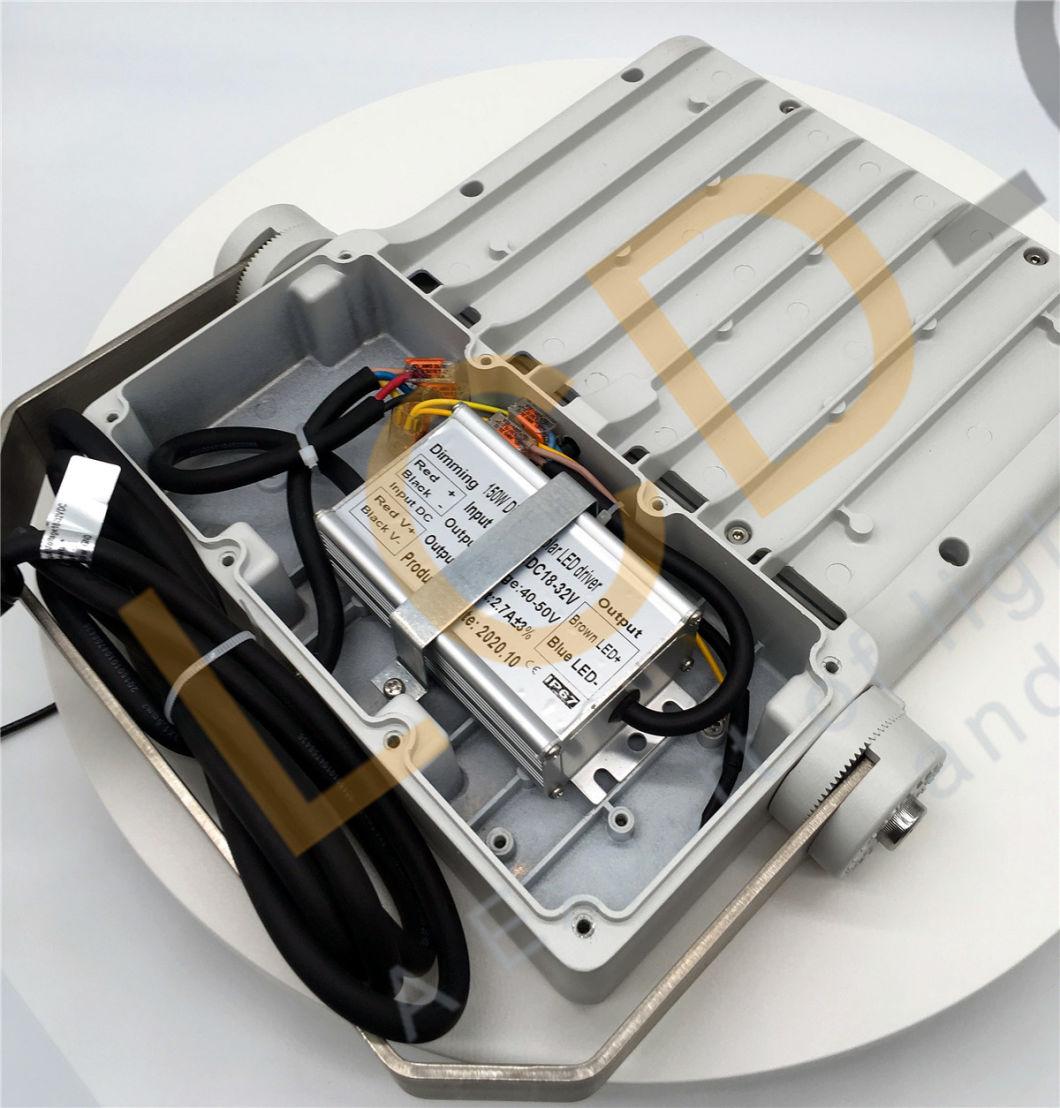

• Driver access plate features stainless steel safety retention chain and captive hardware
• Field replaceable LED circuit boards and drivers with quick disconnects
• Approved for high-ambient applications, up to 65° C
• Two (2) permanent safety cable retention points
• IP67 rating
• 7 years warranty

Classifications
• UL 1598A Marine Outside Type
• UL 1598 Wet Locations
• UL 8750 LED Safety
• 65°C Ambient Temperature
• CAN/CSA C22.2 No. 250.0-08 • CE
• IP66 • NEMA 4X
• LM79 AND LM80
• DLC Listed
All on requests.


Standard Materials
Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
Gaskets: Silicone
Lens: Tempered Glass 6mm
Hardware: Stainless Stee #316



FA SPECIFICATION

Model Number	LCD-FA-083/103-LNXXX	LCD-FA-153-LNXXX	LCD-FA-203-LNXXX	LCD-FA-253-LNXXX
Fitting Colour	RAL 9010 white	RAL 9010 white	RAL 9010 white	RAL 9010 white
Input Voltage	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz
Output Load	80W	100W	150W	200W
Power Factor	>0.95	>0.95	>0.95	>0.95
Lumens	12000-15000lm	22500lm	30000lm	37500lm
Beam Angle	16 different optic beams	16 different optic beams	16 different optic beams	16 different optic beams
Colour (K)	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K
CRI	>75	>75	>75	>75
Efficacy (lm/W)	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w
Housing	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case
Working Temperature	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C
Protection	IP67	IP67	IP67	IP67
Weight	4KG	4.3KG	5.4KG	6.5KG
Dimensions	315 x 245 x 57mm	315 x 245 x 57mm	4 x 290 x 57mm	420 x 329 x 57mm

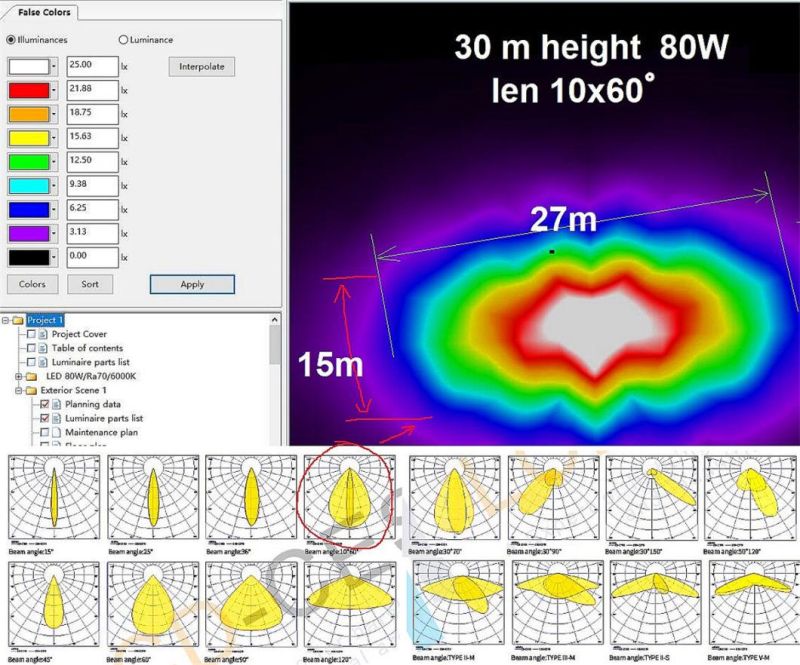

LIght distribution curve with LUMILEDs SMD3030 for up to 145lumen/w



Products data sheet

Model Number	LCD-FA-303-LNXXX	LCD-FA-353-LNXXX	LCD-FA-403-LNXXX	LCD-FA-603-LNXXX
Fitting Colour	RAL 9010 white	RAL 9010 white	RAL 9010 white	RAL 9010 white
Input Voltage	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz	90-305V 50-60Hz
Output Load	250W	300W	400W	600W
Power Factor	>0.95	>0.95	>0.95	>0.95
Lumens	45000lm	52500lm	60000lm	90000lm
Beam Angle	16 different optic beams	16 different optic beams	16 different optic beams	16 different optic beams
Colour (K)	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K	3000K, 4000K,6000K
CRI	>75	>75	>75	>75
Efficacy (lm/W)	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w	up to155 lumen/w
Housing	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case	Die cast Aluminium Case
Working Temperature	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C	-30°C ~ +50°C
Protection	IP67	IP67	IP67	IP67
Weight	10.4Kg	10.8KG	13KG	20.8KG
Dimensions	530 x 385 x 60mm	530 x 385 x 60mm	420 x 658 x 57mm	530 x 772 x 60mm
