• Model NO.：ZGSM-TGD840M
• Certification：CCC, CE, EMC, FCC, LVD, RoHS, SASO
• Operating Voltage：100-240V,277V
• Input Voltage：100-240V,277V
• LED Chips Brand：Bridgelux
• Norminal Voltage：AC 100-240V,277V, 50,60Hz
• Operating Temperature：-40 to 50
• Power Factor：More Than 0.9
• Driver Efficiency：More Than 90%
• CRI：More Than 70
• Heat Radiator：Anodized Aluminum
• Ik：08
• Lens：Clear PC, Glass
• Transport Package：1 Unit,Carton
• Specification：CE, RoHS, CB, UL, DLC
• Trademark：ZGSM
• Origin：Linglong, Lin′an, Hangzhou, Zhejiang, China
• HS Code：9405409000
• Production Capacity：100, 000 PCS,Year

Basic Info.

Model NO. ZGSM-TGD840M Certification CCC, CE, EMC, FCC, LVD, RoHS, SASO Operating Voltage 100-240V/277V Input Voltage 100-240V/277V LED Chips Brand Bridgelux Norminal Voltage AC 100-240V/277V, 50/60Hz Operating Temperature -40 to 50 Power Factor More Than 0.9 Driver Efficiency More Than 90% CRI More Than 70 Heat Radiator Anodized Aluminum Ik 08 Lens Clear PC, Glass Transport Package 1 Unit/Carton Specification CE, RoHS, CB, UL, DLC Trademark ZGSM Origin Linglong, Lin′an, Hangzhou, Zhejiang, China HS Code 9405409000 Production Capacity 100, 000 PCS/Year

Product Description

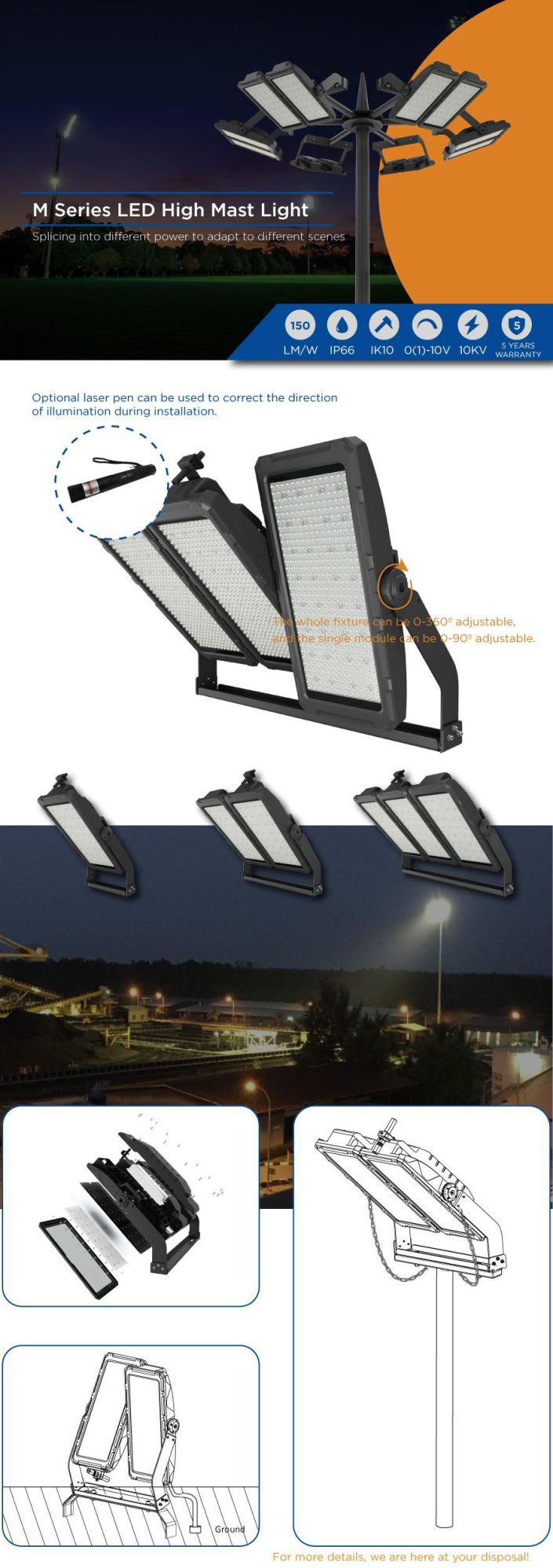

Series M High Lumen Output High Mast Light Stadium Light Flood Light

Series No	Series M
Power	280W,560W, 840W
Efficacy	150lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request)
IP Rating	IP66
IK Rating	IK10
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	15°, 30°, 45°, 60°
Installation	Whole fixture 0-360º adjustable; Single module 0-90º adjustable
Warranty	5 Years
Certification	CE, ROHS, LM80, TM-21
Control	DALI Dimmable, Photocell, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control
