• Model NO.：ZGSM-LD28Kmini
• Certification：CE, EMC, GS, LVD, RoHS, SAA, UL, Dlc, CB
• Input Voltage：100-240V,277V
• With Light Source：With Light Source
• LED Chips Brand：Lumileds 3030
• Light Source：LED Light
• Fixture Dimension：447*179*77 mm
• Fixture Weight：2.1 Kg
• Packing Dimension：465*200*100 mm
• Packing Weight：3.6 Kg
• Lumen Output：3780 Lm
• Lens：PC
• PF：>0.95
• Operating Temperature：-40 to +50
• Transport Package：Export Cartons
• Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
• Trademark：ZGSM
• Origin：Hangzhou, China
• HS Code：94054090
• Production Capacity：100000 PCS,Month

SpecificationsModelZGSM-LD28KminiLED Brandlumileds 3030 2D chipsDriver BrandInventronics DriverNorminal Wattage28WLED Quantity40 pcsInput Voltage100-240/277VAC/DC24VPower Efficiency>90%Power Factor>0.95Lamp Rated Luminous Efficiency>130lm/wLamp Rated Lumen output3780 lm (Lumen tolerance +/- 5%)Color Rendering IndexRa>70Color Temperature3000 or 5000 or 5700KPhotometric TypeType IIOptimal Operating Temperature25ºCStorage Temperatures-40°C~50°CWorking EnvironmentBetween-40°C~+50°C, 10%~90%RHTotal Harmonic Distortion< 20%Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)Body and Shell MaterialsAnodized AluminumIP RatingIP66 with test reportCertificationCE,ROHS,LM-80Optional Function1-10V DC Photocell ControlWarranty5 years Packing DetailsFixture Dimension447 x179 x77 mmFixture Weight2.1 kg Packing Dimension465 x200 x100 mmPacking Weight3.6 kg

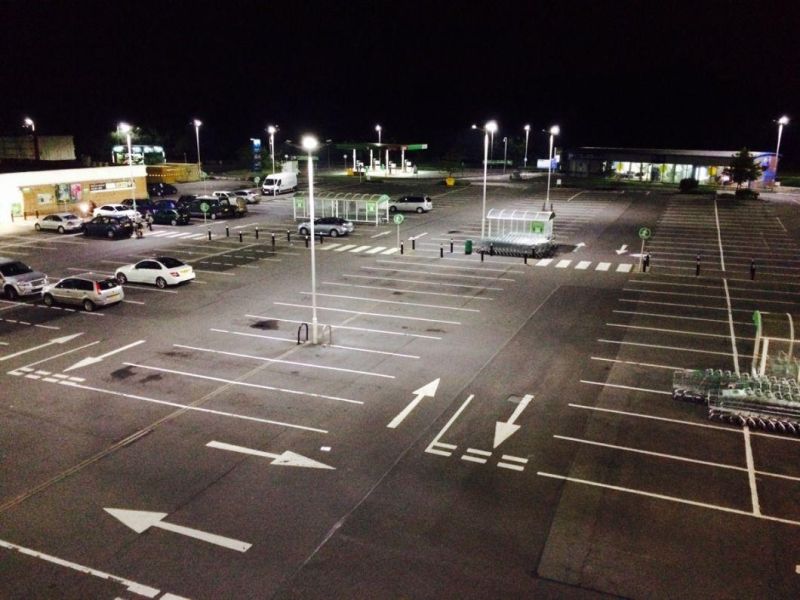

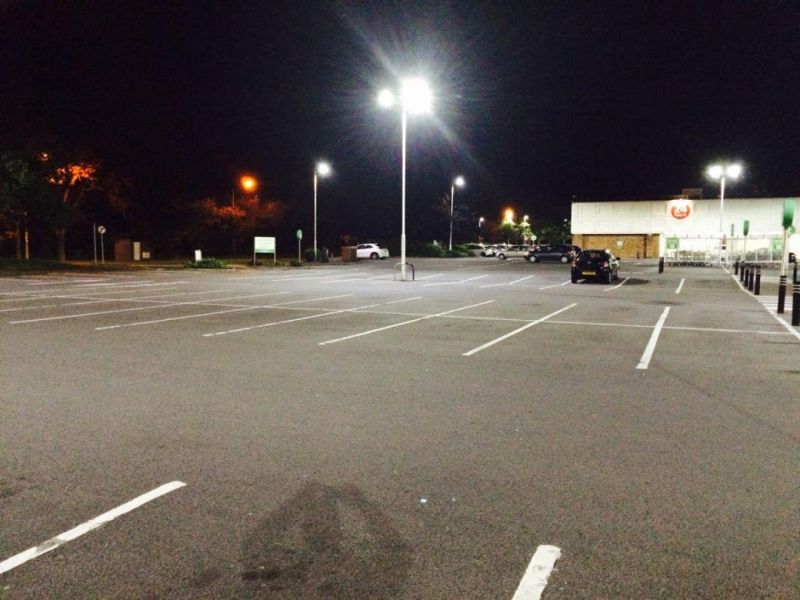

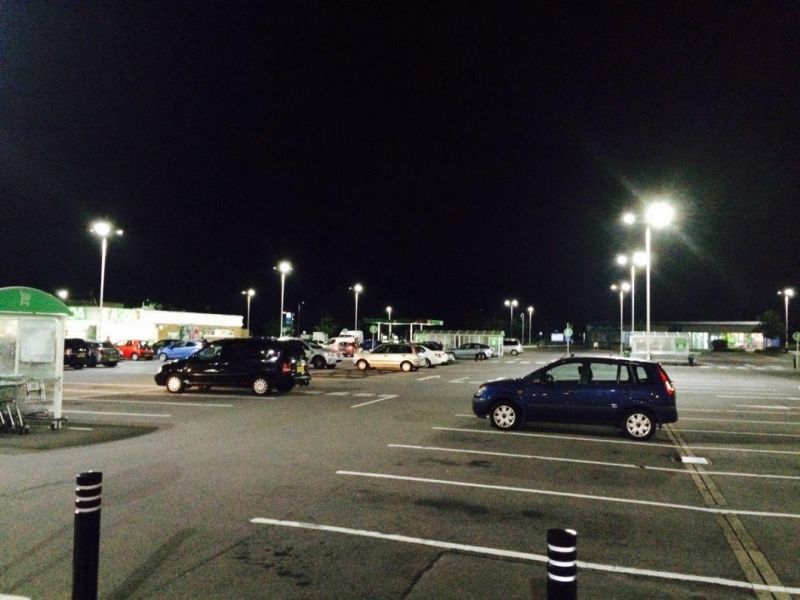

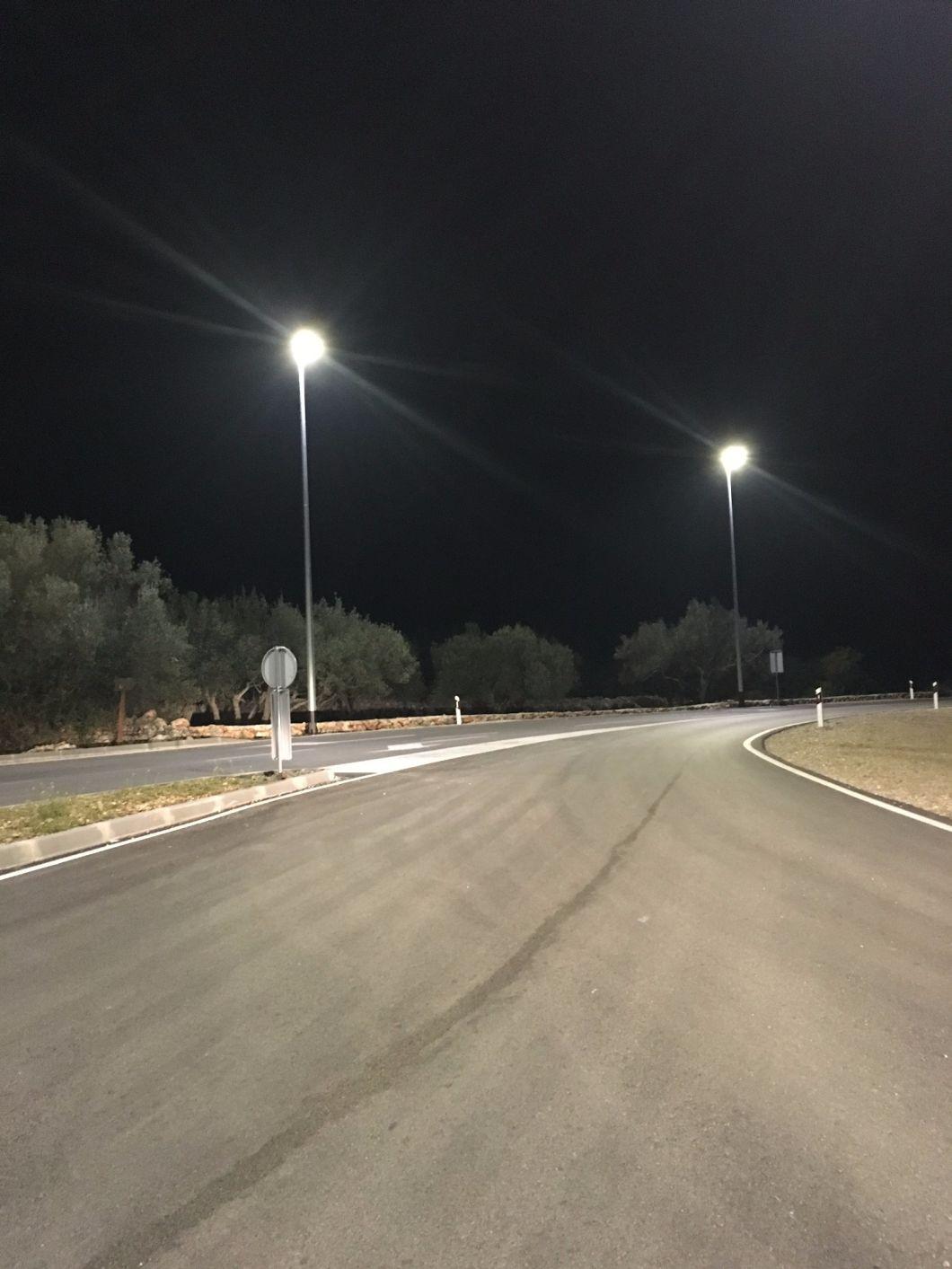

Project cases:
