TUV Certified LED Street Lamp for Citystreet Garden Garden Highway
HANGZHOU ZGSM TECHNOLOGY CO., LTD.- Power Supply：AC
- Color Temperature：3000K-5000K
- Lamp Body Material：Aluminum
- Power：27~120W
- Application：Square, Highway, Garden, Parking Lot
- IP Rating：IP66
Base Info
- Model NO.：ZGSM-LD56LM
- Certification：CE, EMC, FCC, LVD, RoHS, ISO9001, ISO14001
- Input Voltage：100-240V
- With Light Source：With Light Source
- LED Chips Brand：Bridgelux
- Surge Protection：10kv
- Transport Package：Export Cartons
- Specification：495X495X170mm
- Trademark：ZGSM
- Origin：China
- HS Code：94054090
- Production Capacity：20000PCS,Month
Description
Basic Info.
Model NO. ZGSM-LD56LM Certification CE, EMC, FCC, LVD, RoHS, ISO9001, ISO14001 Input Voltage 100-240V With Light Source With Light Source LED Chips Brand Bridgelux Surge Protection 10kv Transport Package Export Cartons Specification 495X495X170mm Trademark ZGSM Origin China HS Code 94054090 Production Capacity 20000PCS/MonthProduct Description
| Series No | Series L |
| Power | 27W, 37W, 56W, 70W, 90W,120W |
| Efficacy | 125-150lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Default) / 20KV (available on request) |
| IP Rating | IP66 |
| IK Rating | IK08 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | Type I, Medium; Type II, Medium; Type III, Medium; Type V, Short |

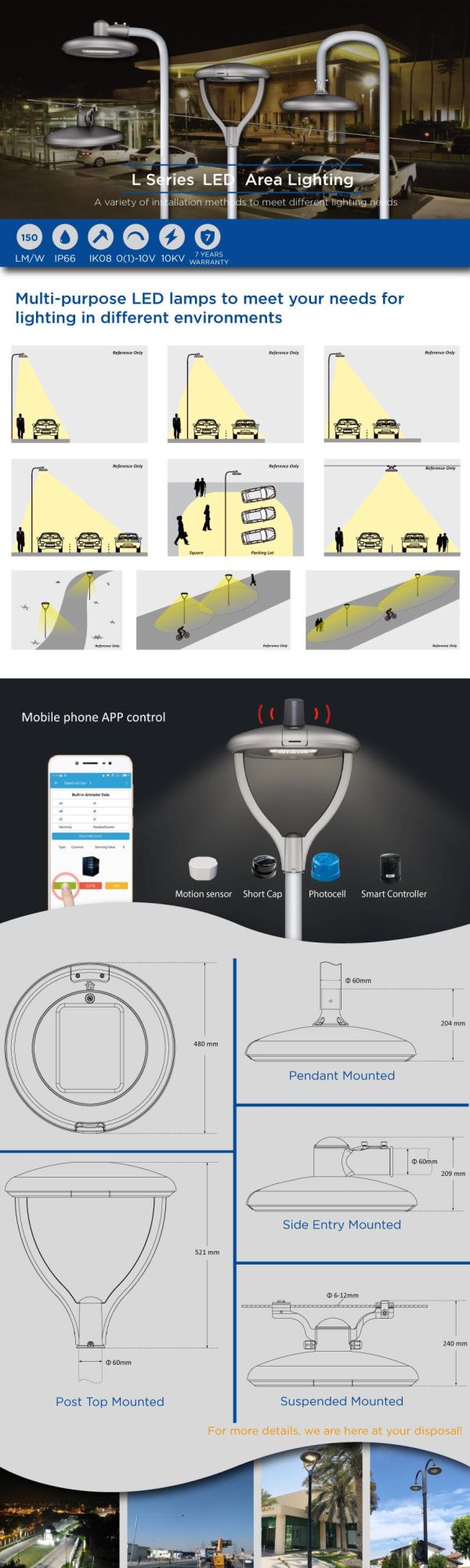

| Mounting Option | Side entry, Post top, Pendant, and Suspended mounted |
| Warranty | 5 Years |
| Certification | ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788 |
| Control | Photocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control |
