• Model NO.：OED-SP3-1200W
• Certification：CE, EMC, ETL, LVD, RoHS, SAA
• Input Voltage：AC 85~305V 50,60Hz
• LED Chips Brand：Lumileds SMD5050
• Item Name：1200W LED Highbay Flood Light
• Lamp Luminous Efficiency(Lm/W)：140lm, W
• Color Temperature(CCT)：2700-6500K
• CRI：80
• Power Factor：0.95
• Viewing Angle：25 45 60
• Lifetime：50,000 Hours
• Warranty：5 Years
• Transport Package：Carton
• Specification：855 x 420 x 155mm
• Trademark：OED
• Origin：China
• HS Code：94054090
• Production Capacity：8000PCS,Month

Basic Info.

Model NO. OED-SP3-1200W Certification CE, EMC, ETL, LVD, RoHS, SAA Input Voltage AC 85~305V 50/60Hz LED Chips Brand Lumileds SMD5050 Item Name 1200W LED Highbay Flood Light Lamp Luminous Efficiency(Lm/W) 140lm/ W Color Temperature(CCT) 2700-6500K CRI 80 Power Factor 0.95 Viewing Angle 25 45 60 Lifetime 50,000 Hours Warranty 5 Years Transport Package Carton Specification 855 x 420 x 155mm Trademark OED Origin China HS Code 94054090 Production Capacity 8000PCS/Month

Product Description

5 years warranty 140LM/W LED high mast flood light 1200w for outdoor field lighting

Technical Data:

Item name	LED highbay flood light 1200W
Power	1200W
Light Source	Lumileds SMD5050
LED Quantity	392pcs
LED Driver	MEANWELL Driver
Input Voltage	AC 85~305V 50/60Hz
Color Temperature	2700-6500K
Light effect	140LM/W
Lumen	168,000LM
CRI	Ra.≥80
Power Factor	0.95
Defend grade	IP65
Viewing angle	25° / 45° / 60°
Materials	ADC12 die-casting aluminum
Operating Temp.	-40ºC ~ +60ºC
Applications	tunnel,park,bridge,plant, workshop,stadium, etc.
Qty / CTN	1PC
N.W.	26.8KG/PC
G.W.	28.3KG/PC
Lamp dimensions	855 x 420 x 155mm
Carton size	101 x 52 x 26cm
Lifetime	50,000 hours
Quality warranty	5 years
Certificates	CE,ROHS, EMC, LVD, ISO9001

Product Features:
200W/300W/400W/500W/600W/700W/900W/1000W/1200W available.

* More suitable for stadium.
* IP66 weather proof design.

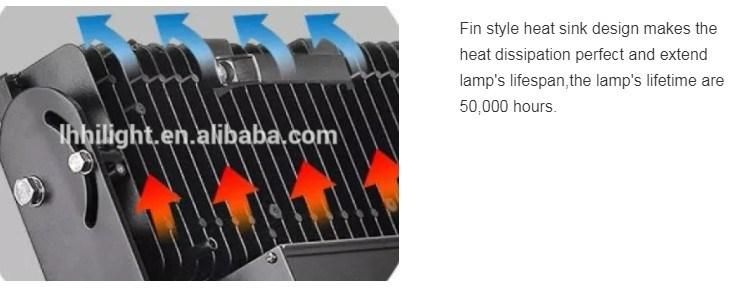

* ADC12 aluminum heat sink independent design makes great ventilation.
* Not only for stadium lighting, but also can use as high-pole lamp.
* MW driver 8KV & SPD 10KV surge protection for more safty using.
* Lumileds 5050 LED, better heat dissipation & performance, provide 140-150LM/W.

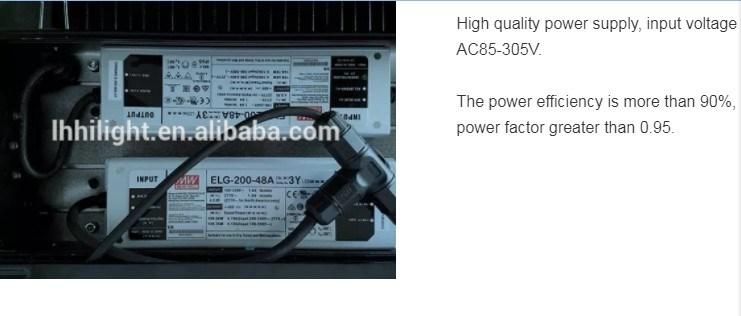

* MEANWELL driver with 5 years warranty.

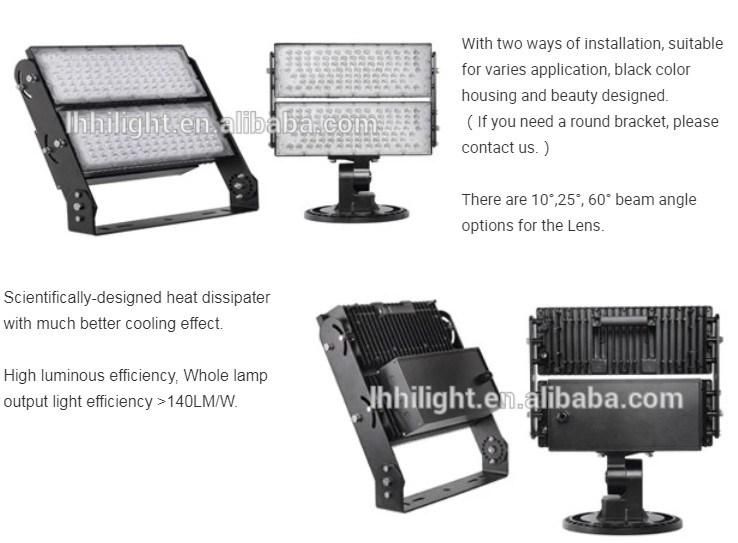

* 25°/ 45°/ 60° beam angles for option.

Product Details:

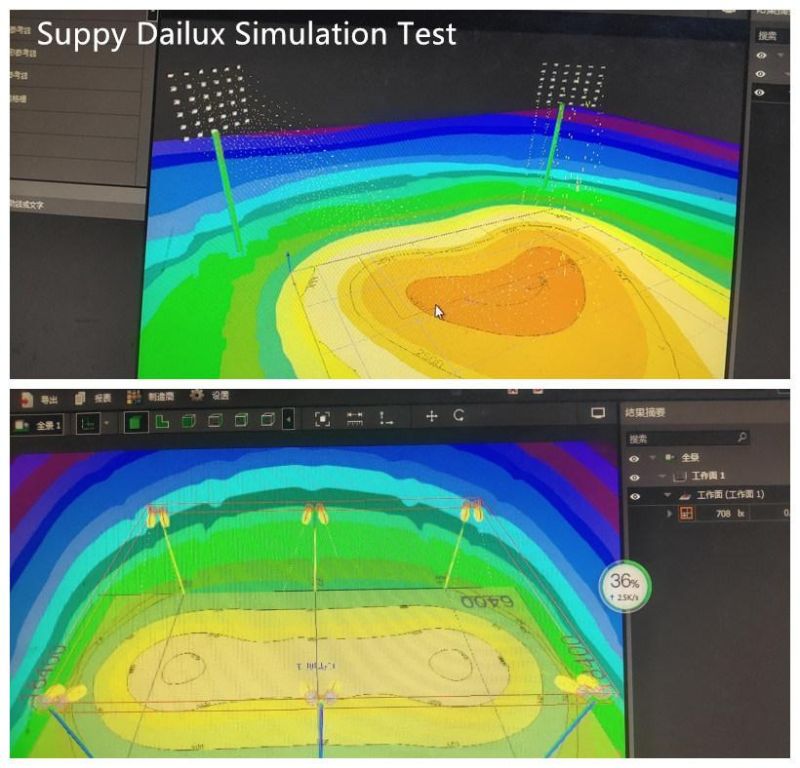

Supply Dialux test:
We do professional Dialux simulation test based on your project, and supply professional stadium lighting solutions for you. Surely we will provide project installation service after you receive the lamps.

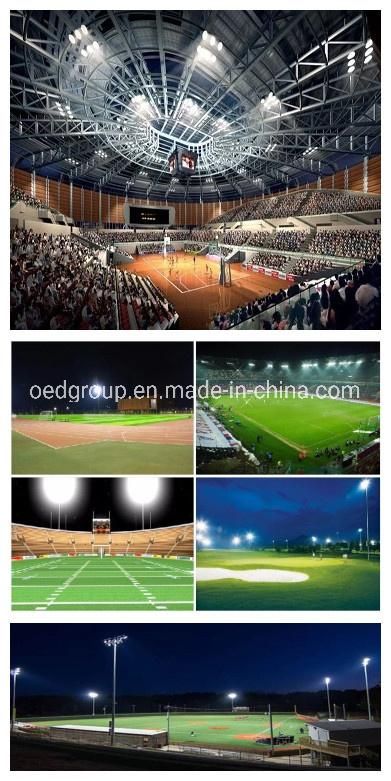

Application:
    It can be widely used in stadium,tunnel,square,garden,lawn,playground,tennis,golf course,bus station,airport,sculpture,architecture,street,parking lot etc.

Installation instructions:

1. Non-specialist electricians please do not repair or modify this product without authorization;

2. Please turn off the power before installation;

3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;

4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;

5. Pay attention to shock protection during installation and transportation;

6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;

7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

8. If the lamp body or wire is damaged, please stop using it immediately.

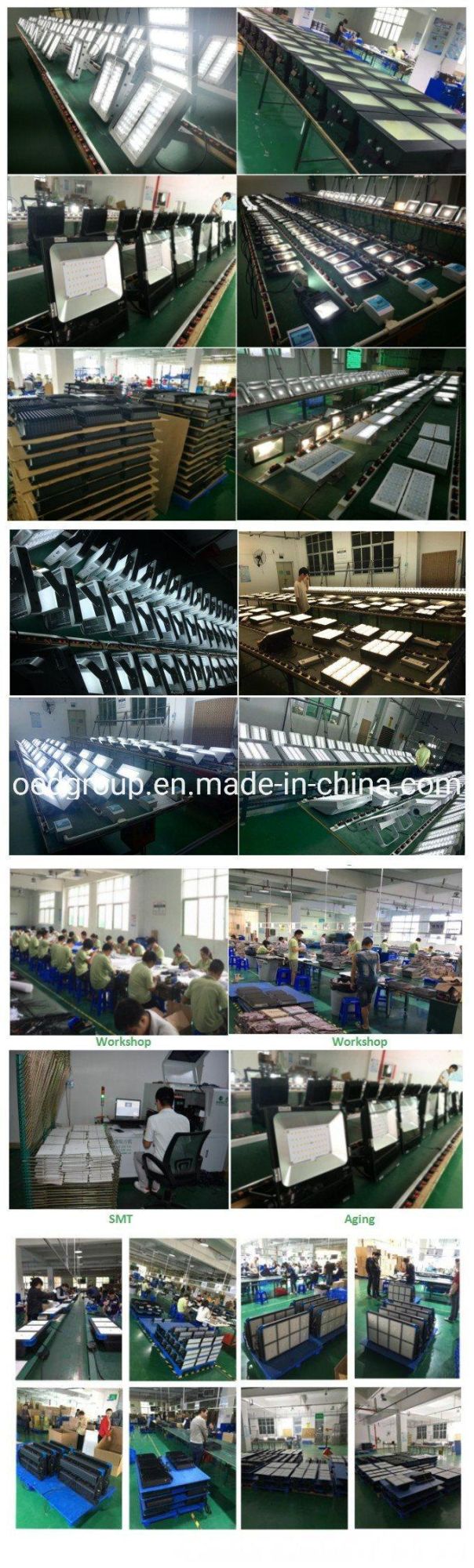

Our workshop:
    We have 6 production lines at production department, including assembling, inspection and aging test lines.
    Production ability: 6-8 days for 50pcs LED high mast flood lights , and 15 working days for 500pcs LED high mast flood lights at common requirements.
    Each Lamp must pass 24 hours aging test and high voltage (10KV) surge test before we make packing and make delivery.
Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, such as Lumileds 5050SMD, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
2000pcs in 15 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.

FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 2000pcs LED high mast flood lights.

4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this LED high mast flood lights, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
