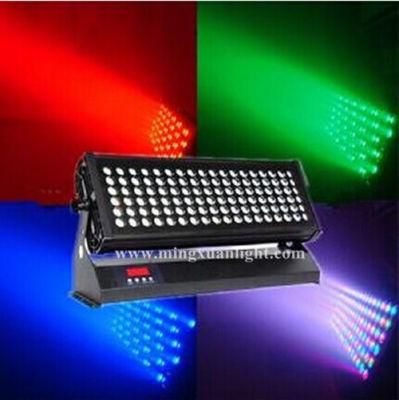

• Model NO.：LED 2000A,LED 2000B,LED 2000C
• Warranty：2 Years
• Certification：CE
• Electric Current Type：AC
• Input Voltage：90-245V
• LED Lamp：60*4W,36*10W RGBW 4in1 Multi-Color LED Lamp
• Outdoor Using：IP 65
• Base Material：Aluminum Alloy
• Transport Package：Carton,Flycase
• Specification：75*34*31CM
• Trademark：MSLighting
• Origin：Guangzhou, China
• HS Code：94054090
• Production Capacity：500PCS,Week

ModelLED 2000B (60*4W RGBW 4INI1) /LED 2000C (36*10W RGBW 4INI1)Housing MaterialAluminumHousing ColorBlackAperture CoverPMMAOperating voltage90-130V AC / 176-254V ACPower   Switch Power SupplyLED current1400mAControl ModesDirect DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronizationDMX Channel7CH/4CHControl panelDigital 4 characters alphanumericConnector3-PinXLR (In and Out)NO. of LED60*4W / 36*10W RGBW 4IN1LED Life Time80000-100, 000 hoursBeam Angle25° /30° /45° /60°Power Consumption280W/420WLight Projecting Distance5-160MIP RatingINDOOR, Outdoor, Waterproof, IP 65Operating Temperature-20º C+45º CDimensions76*32*34(mm)Weight13.00 (kg)Packing Dimension76*32*34(mm)Gross Weight13.00(Kg)Compatibility:1.     Color Range: 16.7 million  additive  RGBW  colors; continuously  variable  intensity (256× 256× 256=16777216)2. Dimming 0-100%with regulated constant color control3. Strobe: 10 Flashed per second (any color)4. Function: it is max mix color, color change, color' s gradual change, flash, speed/luminance the adjustable, and save function5.7channel Mode and 4channel Mode would change each other in every light6.7CH Mode DMX ValueCH 1_General dimmer    (1-255, from dart to light)CH 2_Red                  (1-255, Dimmer, from dart to light)CH 3_Green                (1-255, Dimmer, from dart to light)CH 4_Blue                  (1-255, Dimmer, from dart to light)CH 5_White                 (1-255, Dimmer, from dart to light) CH 6_Strobe & Color change/ color gradual change openCH 7_Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast)7.4CH Mode DMX ValueCH 1_Red                   (1-255, Dimmer, from dart to light)CH 2_Green                 (1-255, Dimmer, from dart to light)CH 3_Blue                   (1-255, Dimmer, from dart to light)CH 4_White                  (1-255, Dimmer, from dart to light) 8. Control modes0: sound activity mode1. DMX control mode2. Adjusting the color manual3. Adjusting the brightness manual4. Adjusting the strobe manual5. Adjusting the strobe speed manual6. Master-slave control mode, as the master7. Sound activity synchronization mode8, Adjustingcolor' s gradual change manual9. Adjustinggradual change' s speed.Each Package Included:1* LED 2000B/LED 2000C LED Wall Washer Light with
Signal Cable: 3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable)1* User Manual1* Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable)2* pyrocondensation. cannula (0.66ft = 20cm)1* Waterproof connector' s cover for Power cable

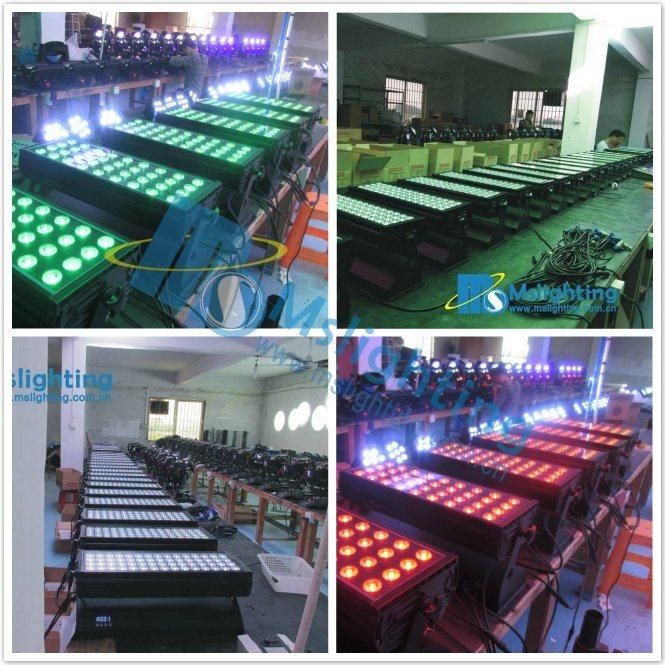

Production Line:
