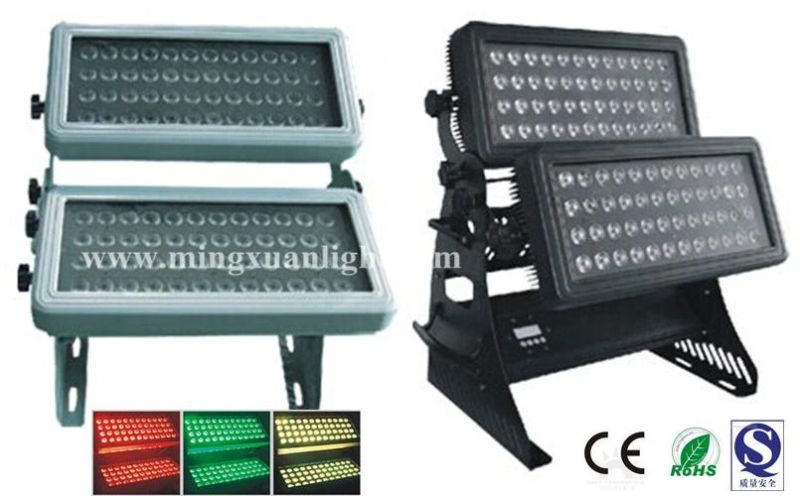

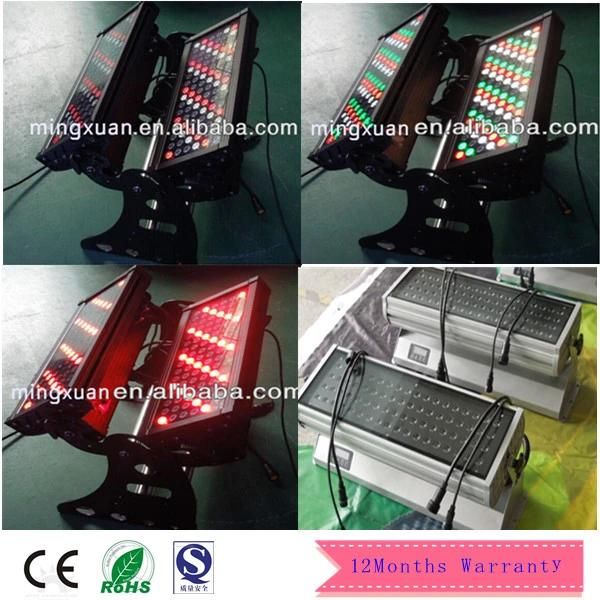

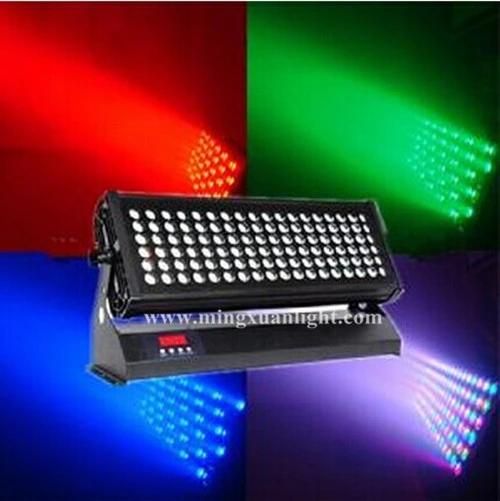

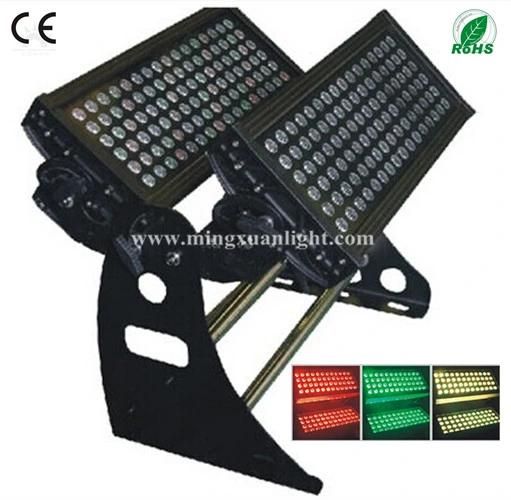

180PCS 5W RGBWA LED Wall Washer Light

Guangzhou MingXuan Stage Light Equipment Co., Ltd.
  • Emitting Color：RGB
  • Power：900W
  • IP Rating：IP65
  • Diffuser：Polycarbonate
  • Beam Angle：25°
  • Lifespan：50000 hours

Base Info

  • Model NO.：YS-416
  • Warranty：1 Year
  • Certification：CE, EMC, LVD, RoHS
  • Electric Current Type：AC
  • Input Voltage：AC110-240V
  • Light Source：180PCS 5W LEDs
  • Dimmer：0-100% Smooth Electronic Dimming
  • Display：LED Digital Display
  • Channel：9CH
  • Control Mode：DMX512, Master Slave, Auto
  • Life Time：More Than 100 Thousand Hours
  • Delivery Time：Three-Seven Days
  • Strobe：1-18time,Sec
  • Working Lifetime(Hour)：10000 Hours
  • Working Temperature(ºC)：-10-40
  • Transport Package：Carton or Flight Case
  • Specification：745*562*549mm
  • Trademark：mingxuan
  • Origin：Guangdong, China (Mainland)
  • HS Code：940504090
  • Production Capacity：100000

Description

Voltage inputAC110-240V,50/60HzVoltage outputDC48V,double SMPS,longevity 15000HoursLight source180pcs*5W RGBAW LED each 36PCS,1000mA driving total 32800 Lumens outputLED CCTR=625nm,G=525nm,B=460nm,A=590nm,W=6500K,offer multi-Color and many white color,SDC<0.005Field Angle(10%)standard 30 °(393600Cd on axis),8°,15°,45°,60°,25 x 65°Etc optionalControl signalMeet E1.11 - 2004 USITT DMX512-A,32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock,PWM>600Hz,Flicker freeControl modeDMX1990/DMX512A/stand alone/master and slaveChanel option9ChHousing materialExtrusion 6063,anodized Matte balck, customized other color and barndoorSaftyClass II, 3C 2.5mm2 VDE cable, Endure 5ms 1.5KV shock,Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP65Operate temperature-20~+45ºC,Light board peak temperature 80ºC with NTC protectionCerficatedCE/RoHsSize745*562*549mmWeight55KG180PCS 5W RGBWA LED Wall Washer Light180PCS 5W RGBWA LED Wall Washer Light
180PCS 5W RGBWA LED Wall Washer Light180PCS 5W RGBWA LED Wall Washer Light
180PCS 5W RGBWA LED Wall Washer Light
180PCS 5W RGBWA LED Wall Washer Light
