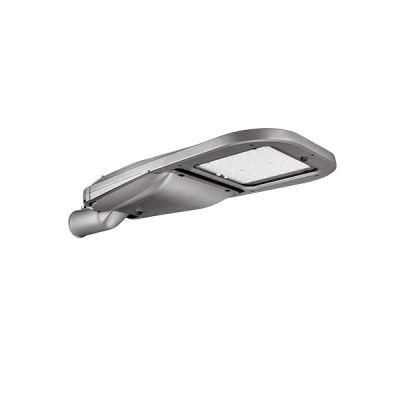

180W Die-Casting Aluminium Housing LED Street Light
HANGZHOU ZGSM TECHNOLOGY CO., LTD.- Power Supply：AC
- Color Temperature：3000K, 4000K, 5000K, 5700K
- Lamp Body Material：Aluminum
- Power：180W
- Application：Square, Highway, Garden, Road, Path
- IP Rating：IP66
Base Info
- Model NO.：LD180KL
- Certification：CE, FCC, RoHS, CB ENEC
- Input Voltage：100-240
- With Light Source：With Light Source
- LED Chips Brand：Lumiled3030 5050
- LED Q′ty：288 PCS
- Power Factor：0.95
- CCT：4000K,5000K,5700K
- Driver：Meanwell , Inventronics
- CRI：>70
- DIMM：1-10V, PWM, Timer, Photocell, Motion Sensor
- Ik：08
- Diffuser：Type I, Type II, Type III, Type V
- Lumen Output：23400lm
- Warranty：5 Years
- Product Name：180W Die-Casting Aluminium Housing LED Street light
- Transport Package：Export Cartons
- Specification：EN60598, CE, IEC
- Trademark：ZGSM
- Origin：China
- HS Code：94054090
- Production Capacity：5000 PCS,Month
Description

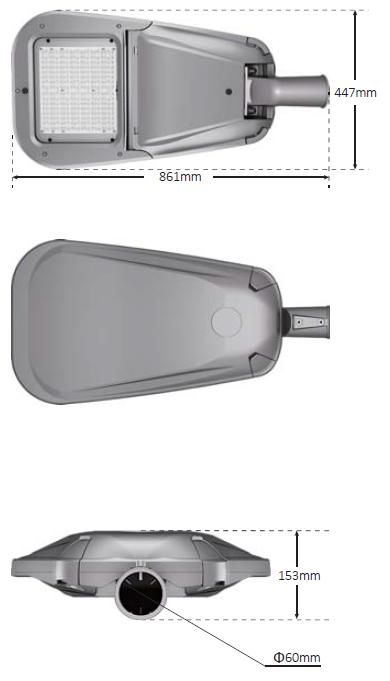

915*495*225 mm, 14.5 / 14.5 / 14.6 / 14.7 kg
Product advantages:
1. Luminaire Efficacy: 3030 LED 125~130 lm/w; 5050 LED 155~165 lm/w;
2. Meanwell XLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.
3. Tempered Glass lens.
4. Luminaire efficacy up to 165lm/w.
5. Competitive price.
6. 5 years warranty.
7. IP66 and IK08.

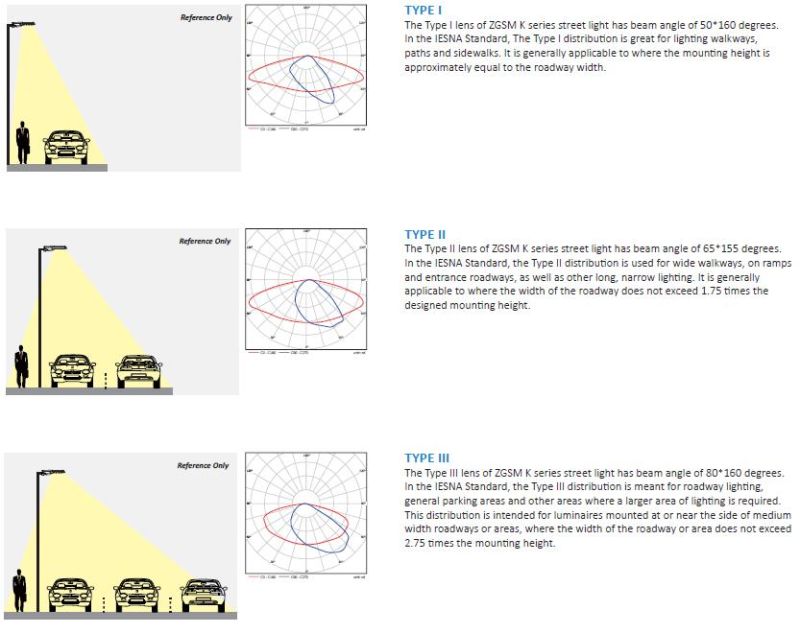

8. Type I, Type II, Type III optics for different width road lighting.
9. With Surge Projector to protect lamp from up to 10KV/10KA.
10. With Power Turn Off Protector to protect the personal safety.
11. With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
12. Big recessed structure design can be installed the MPPT remote control controller and wireless module to be a intelligent control system.
13. Full die-cast aluminum housing to prevent guano.

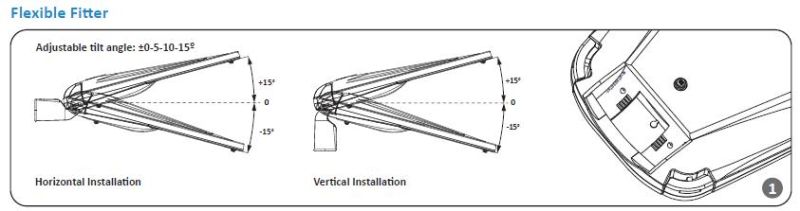

14. Snap-in type, easy installation by snap locking the two ends together, do not need tools to open or close the light cap.
