LED Outdoor Lighting

Home > Product > LED Floodlight

840W LED Projector Light Stadium Light with 5 Years Warranty

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Color Temperature：3000K, 4000K, 5000K, 5700K
  • Lamp Body Material：Aluminum Alloy
  • Power：840W
  • Projection Distance：25-35m
  • Application：Park, Square, Garden, Football Stadium
  • IP Rating：IP66

Base Info

  • Model NO.：ZGSM-TGD840M
  • Certification：CE, EMC, LVD, RoHS
  • Operating Voltage：AC 100-240V ,277V
  • Input Voltage：AC 100-240V ,277V
  • LED Chips Brand：Lumileds
  • Luminous Efficiency：150lm,W
  • Ik Rate：Ik 10
  • Driver Brand：Inventronics
  • Lifespan：100000hours
  • Transport Package：Export Cartons
  • Specification：Packing Dimension 770 x900 x235mm
  • Trademark：ZGSM
  • Origin：China
  • HS Code：94054090
  • Production Capacity：20000PCS,Month

Description

Basic Info.

Model NO. ZGSM-TGD840M Certification CE, EMC, LVD, RoHS Operating Voltage AC 100-240V /277V Input Voltage AC 100-240V /277V LED Chips Brand Lumileds Luminous Efficiency 150lm/W Ik Rate Ik 10 Driver Brand Inventronics Lifespan 100000hours Transport Package Export Cartons Specification Packing Dimension 770 x900 x235mm Trademark ZGSM Origin China HS Code 94054090 Production Capacity 20000PCS/Month

Product Description

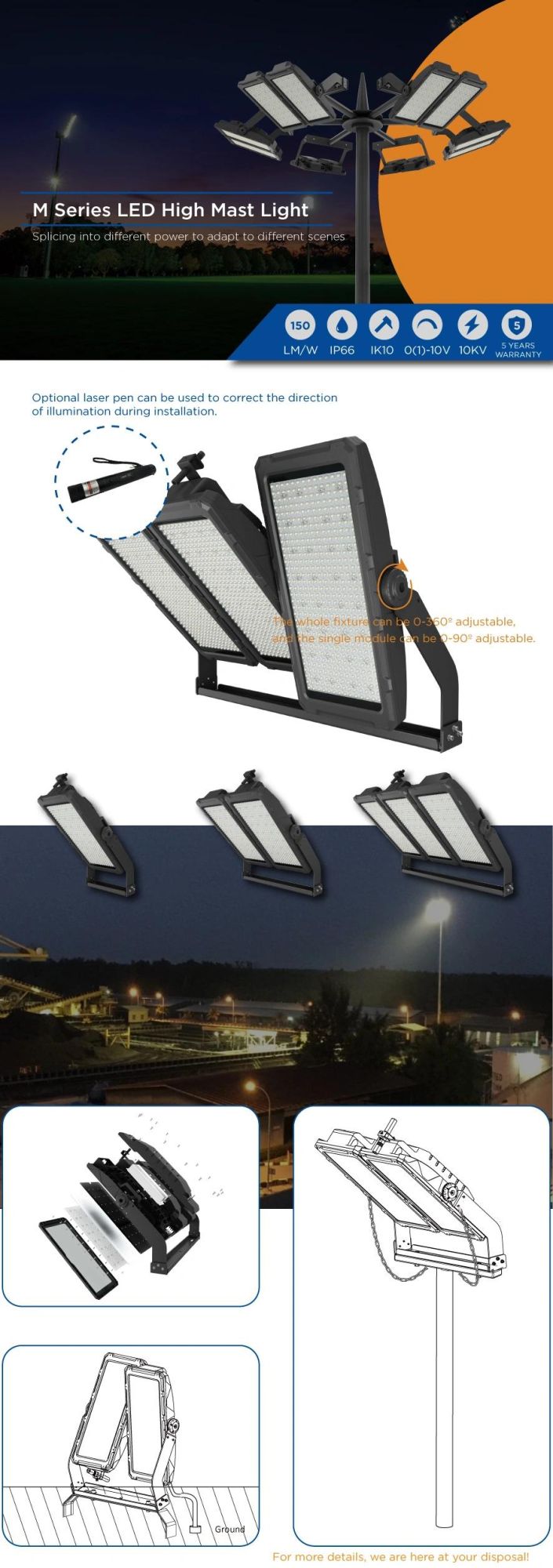

840W LED Projector Light Stadium Light with 5 Years Warranty840W LED Projector Light Stadium Light with 5 Years Warranty
Series NoSeries M
Power280W,560W, 840W
Efficacy150lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK10
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam Angle15°, 30°, 45°, 60°
InstallationWhole fixture 0-360º adjustable; Single module 0-90º adjustable
Warranty5 Years
CertificationCE, ROHS, LM80, TM-21
ControlDALI Dimmable, Photocell, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control
